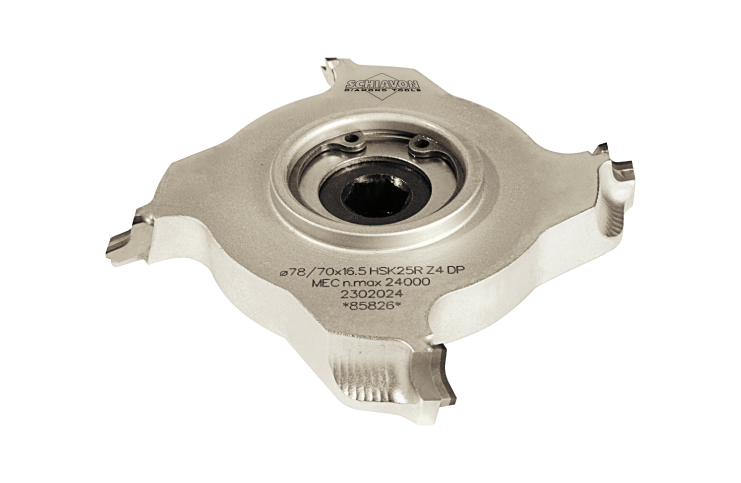

Radius Edge Banding Cutters

Applications:
Used for panel roughing or finishing, with or against feed direction.

Machines:
Squaring, edge banding machines.

Materials:
Melamine, paper, plastic veneer, aluminum or wooden bands.

Technical Features:
Polished PCD tips with micro-finishing. Optimized body design for fast dust flow. TWIST model delivers unbeatable finishing and even better dust flow. Available with ø16 – ø20 with or without DKN, or with HSK25R or HSK32R for a higher and backlash free coupling with machine spindle. N max 24.000

Re-sharpening:
up to 4 times
WORKINGS
Bead bevel profile
PERFORMANCES
Drawings and Specs Chart
Technical drawings

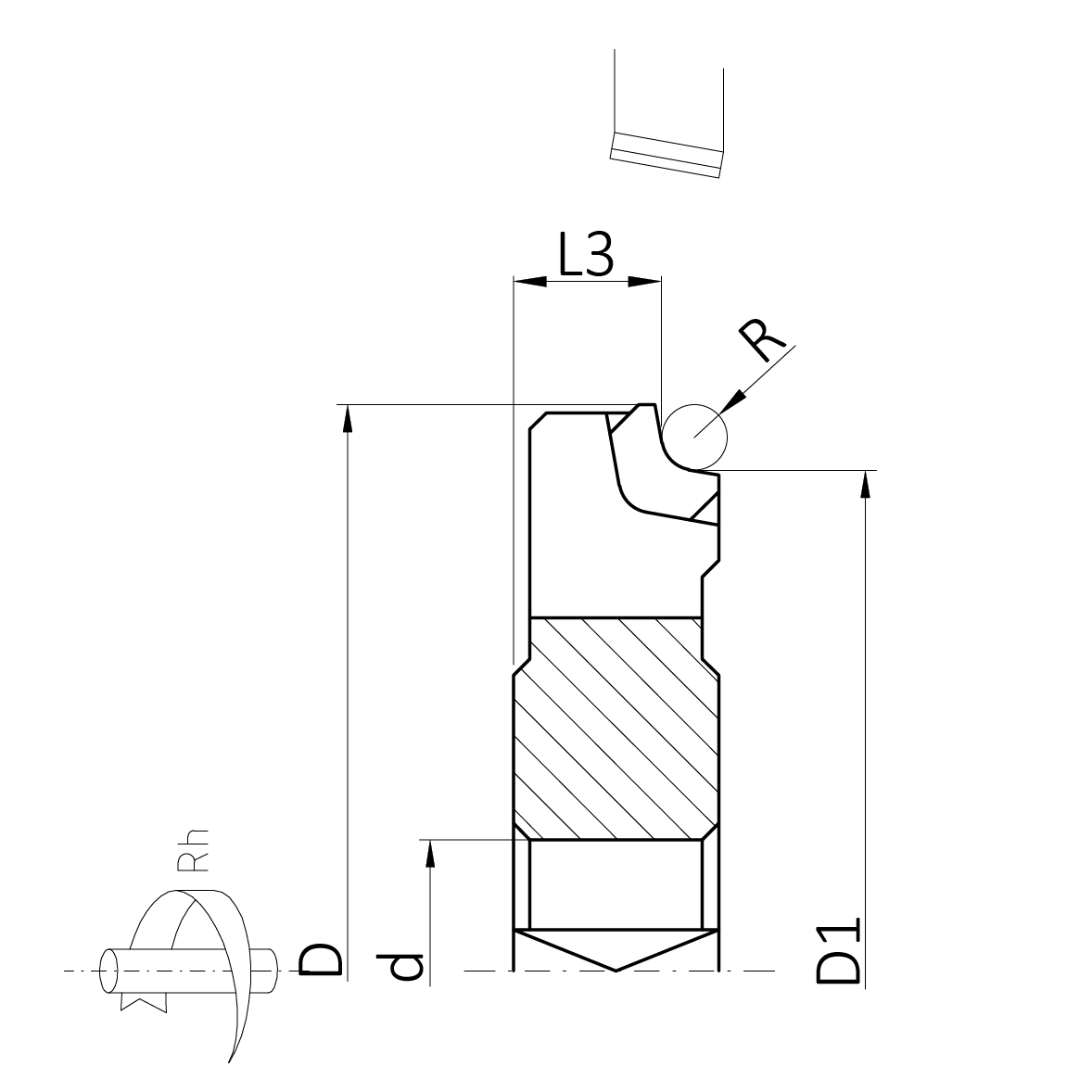

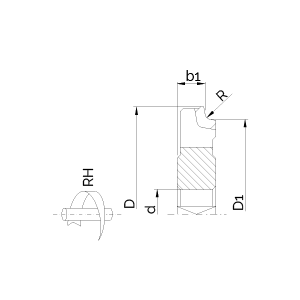

Mod. DKN 16.20

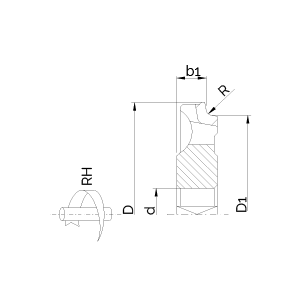

Mod. DKN 16.20 TWIST

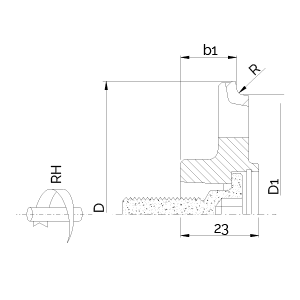

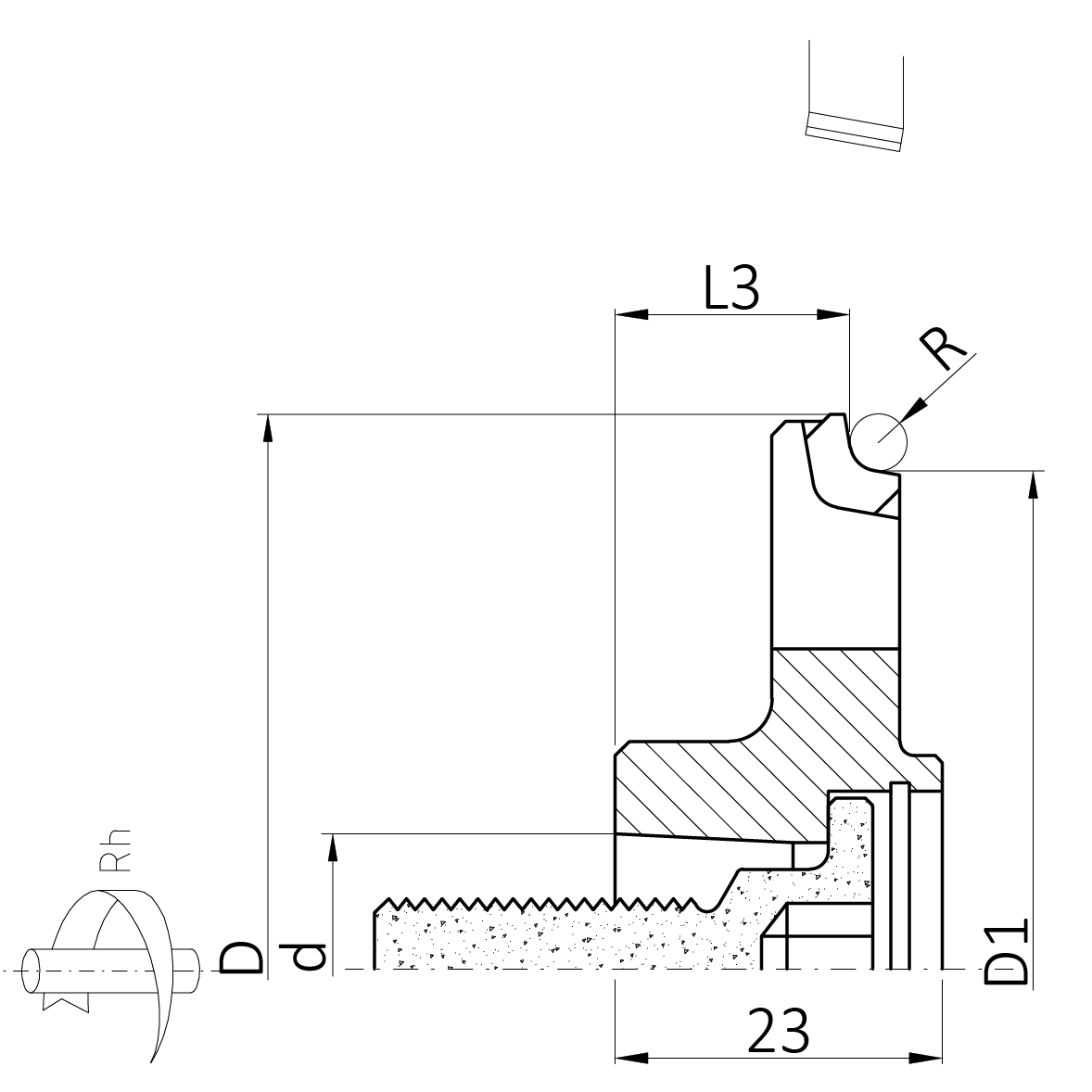

Mod. HSK25R

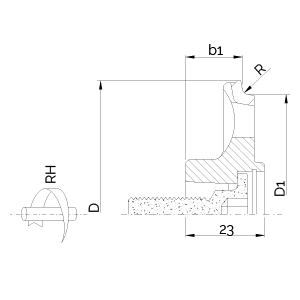

Mod. HSK25R TWIST

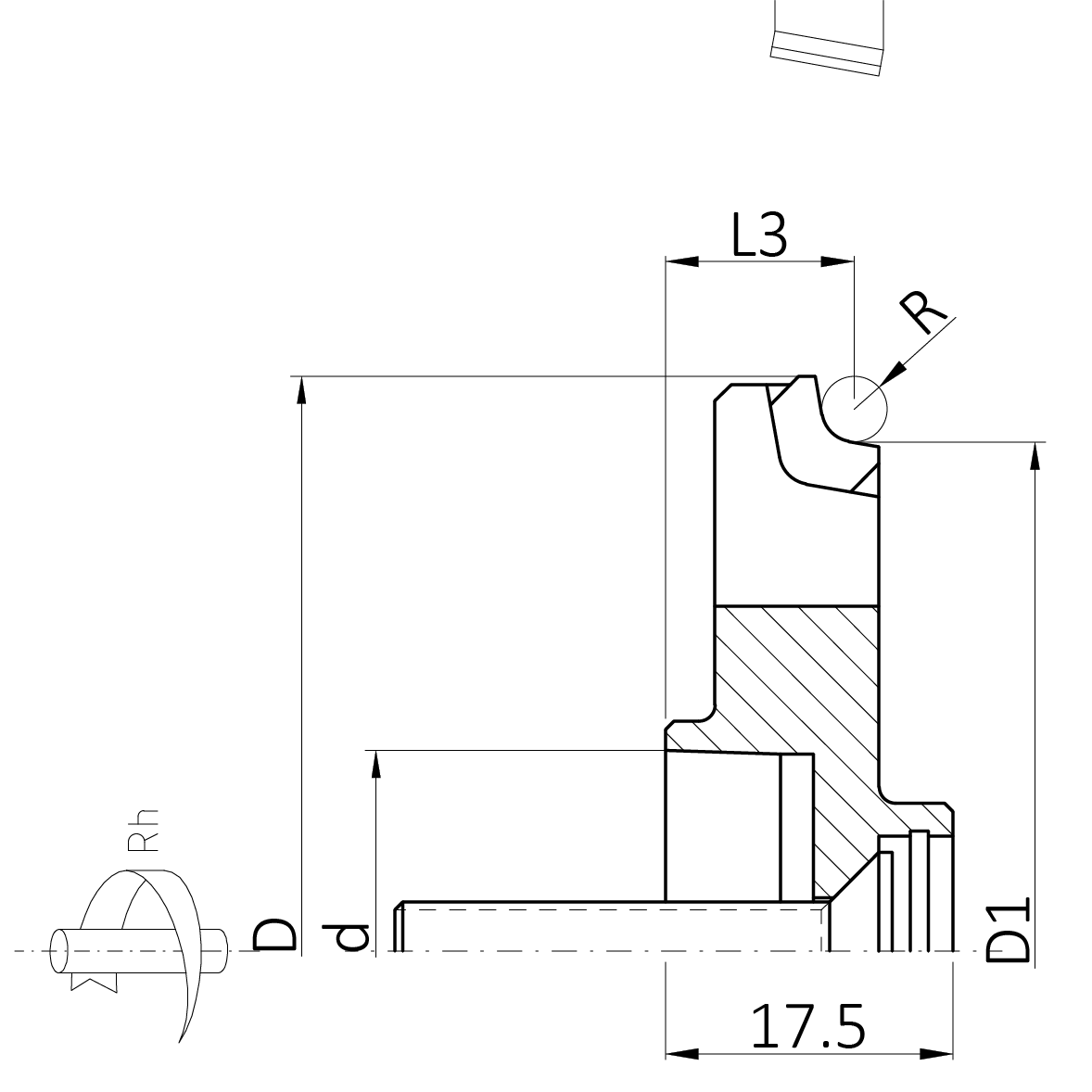

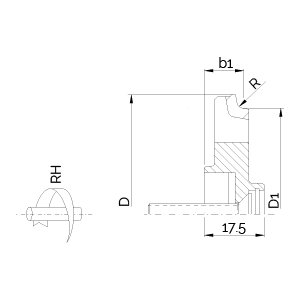

Mod. HSK32 L 17,5

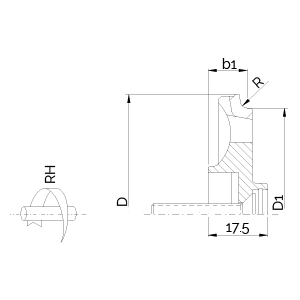

Mod. HSK32 L 17,5 TWIST

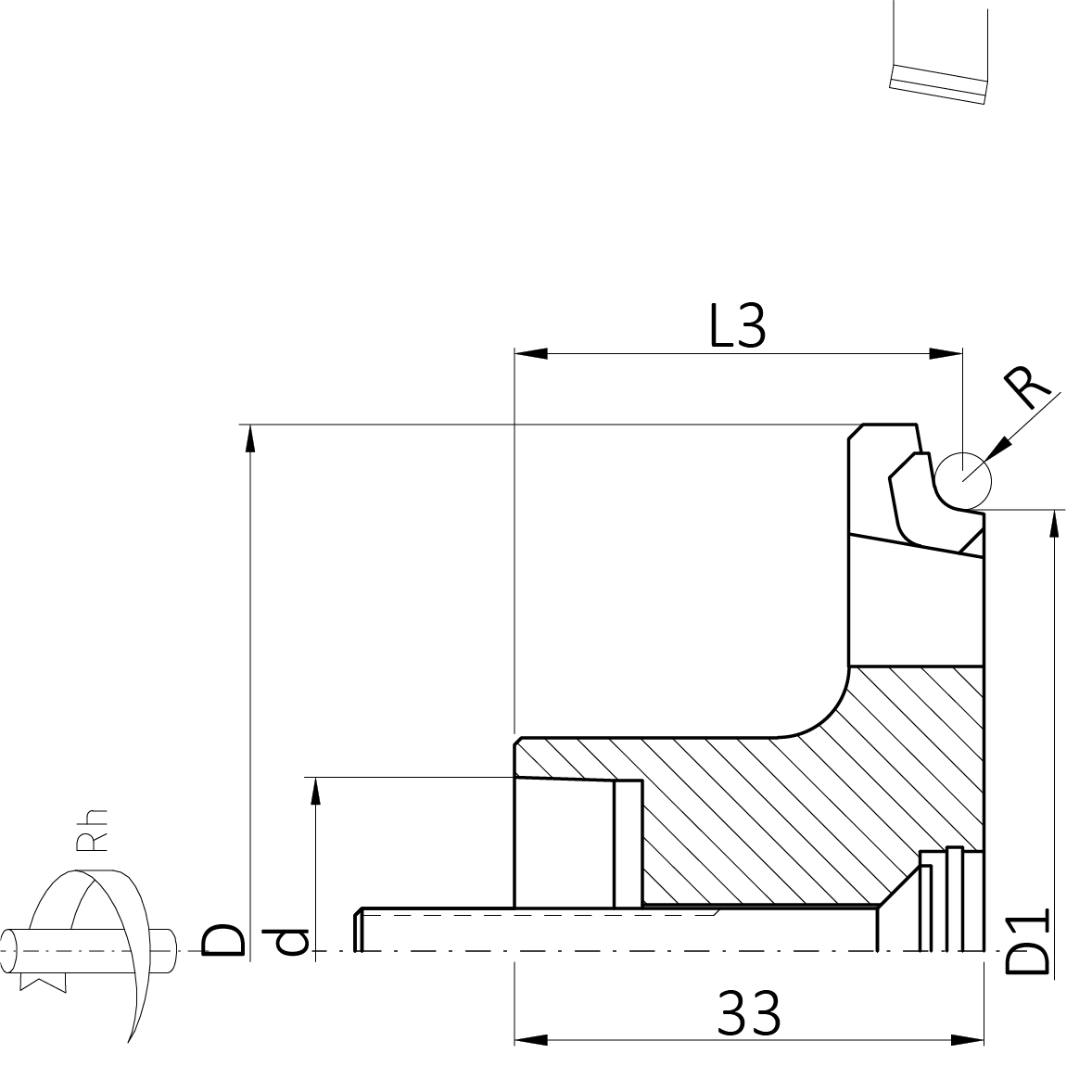

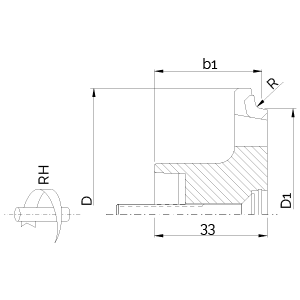

Mod. HSK32 L 33

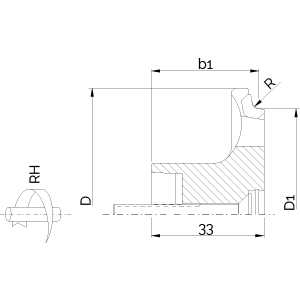

Mod. HSK32 L 33 TWIST
Tabella ricerca totale
2300020 Mod. DKN 16/20 67 16 9 4 61 3
2300022 Mod. DKN 16/20 68 16 9 4 61 3
2300024 Mod. DKN 16/20 69 16 9 4 61 3
2300026 Mod. DKN 16/20 70 16 9 4 61 3
2300028 Mod. DKN 16/20 71 16 9 4 61 3
2300120 Mod. DKN 16/20 67 16 9 6 61 3
2300122 Mod. DKN 16/20 68 16 9 6 61 3
2300124 Mod. DKN 16/20 69 16 9 6 61 3
2300126 Mod. DKN 16/20 70 16 9 6 61 3
2300128 Mod. DKN 16/20 71 16 9 6 61 3
2300220 Mod. DKN 16/20 76 16 9 4 70 3
2300222 Mod. DKN 16/20 77 16 9 4 70 3
2300224 Mod. DKN 16/20 78 16 9 4 70 3
2300226 Mod. DKN 16/20 79 16 9 4 70 3
2300228 Mod. DKN 16/20 80 16 9 4 70 3
2300320 Mod. DKN 16/20 76 16 9 6 70 3
2300322 Mod. DKN 16/20 77 16 9 6 70 3
2300324 Mod. DKN 16/20 78 16 9 6 70 3
2300326 Mod. DKN 16/20 79 16 9 6 70 3
2300328 Mod. DKN 16/20 80 16 9 6 70 3
2301020 Mod. DKN 16/20 67 20 9 4 61 3
2301022 Mod. DKN 16/20 68 20 9 4 61 3
2301024 Mod. DKN 16/20 69 20 9 4 61 3
2301026 Mod. DKN 16/20 70 20 9 4 61 3
2301028 Mod. DKN 16/20 71 20 9 4 61 3
2301120 Mod. DKN 16/20 67 20 9 6 61 3
2301122 Mod. DKN 16/20 68 20 9 6 61 3
2301124 Mod. DKN 16/20 69 20 9 6 61 3
2301126 Mod. DKN 16/20 70 20 9 6 61 3
2301128 Mod. DKN 16/20 71 20 9 6 61 3
2301220 Mod. DKN 16/20 76 20 9 4 70 3
2301222 Mod. DKN 16/20 77 20 9 4 70 3
2301224 Mod. DKN 16/20 78 20 9 4 70 3
2301226 Mod. DKN 16/20 79 20 9 4 70 3
2301228 Mod. DKN 16/20 80 20 9 4 70 3
2301320 Mod. DKN 16/20 76 20 9 6 70 3
2301322 Mod. DKN 16/20 77 20 9 6 70 3
2301324 Mod. DKN 16/20 78 20 9 6 70 3
2301326 Mod. DKN 16/20 79 20 9 6 70 3
2301328 Mod. DKN 16/20 80 20 9 6 70 3
2302020 Mod. HSK25R 76 0 16,5 4 70 3
2302022 Mod. HSK25R 77 0 16,5 4 70 3
2302024 Mod. HSK25R 78 0 16,5 4 70 3
2302026 Mod. HSK25R 79 0 16,5 4 70 3
2302028 Mod. HSK25R 80 0 16,5 4 70 3
2302030 Mod. HSK25R 82 0 16,5 4 70 3
2302032 Mod. HSK25R 84 0 16,5 4 70 3
2302120 Mod. HSK25R 76 0 16,5 6 70 3
2302122 Mod. HSK25R 77 0 16,5 6 70 3
2302124 Mod. HSK25R 78 0 16,5 6 70 3
2302126 Mod. HSK25R 79 0 16,5 6 70 3
2302128 Mod. HSK25R 80 0 16,5 6 70 3
2302130 Mod. HSK25R 82 0 16,5 6 70 3
2302132 Mod. HSK25R 84 0 16,5 6 70 3
2302220 Mod. HSK25R 76 0 16,5 8 70 3
2302222 Mod. HSK25R 77 0 16,5 8 70 3
2302224 Mod. HSK25R 78 0 16,5 8 70 3
2302226 Mod. HSK25R 79 0 16,5 8 70 3
2302228 Mod. HSK25R 80 0 16,5 8 70 3
2302230 Mod. HSK25R 82 0 16,5 8 70 3
2302232 Mod. HSK25R 84 0 16,5 8 70 3
2303020 Mod. HSK32 L 17,5 68 0 11,5 4 62 3
2303022 Mod. HSK32 L 17,5 69 0 11,5 4 62 3
2303024 Mod. HSK32 L 17,5 70 0 11,5 4 62 3
2303026 Mod. HSK32 L 17,5 71 0 11,5 4 62 3
2303028 Mod. HSK32 L 17,5 72 0 11,5 4 62 3
2303030 Mod. HSK32 L 17,5 73 0 11,5 4 62 3
2303032 Mod. HSK32 L 17,5 74 0 11,5 4 62 3
2303120 Mod. HSK32 L 17,5 68 0 11,5 6 62 3
2303122 Mod. HSK32 L 17,5 69 0 11,5 6 62 3
2303124 Mod. HSK32 L 17,5 70 0 11,5 6 62 3
2303126 Mod. HSK32 L 17,5 71 0 11,5 6 62 3
2303128 Mod. HSK32 L 17,5 72 0 11,5 6 62 3
2303130 Mod. HSK32 L 17,5 73 0 11,5 6 62 3
2303132 Mod. HSK32 L 17,5 74 0 11,5 6 62 3
2303220 Mod. HSK32 L 17,5 68 0 11,5 8 62 3
2303222 Mod. HSK32 L 17,5 69 0 11,5 8 62 3
2303224 Mod. HSK32 L 17,5 70 0 11,5 8 62 3
2303226 Mod. HSK32 L 17,5 71 0 11,5 8 62 3
2303228 Mod. HSK32 L 17,5 72 0 11,5 8 62 3
2303230 Mod. HSK32 L 17,5 73 0 11,5 8 62 3
2303232 Mod. HSK32 L 17,5 74 0 11,5 8 62 3
2304020 Mod. HSK32 L 33 72 0 31,5 4 62 3
2304022 Mod. HSK32 L 33 73 0 31,5 4 62 3
2304024 Mod. HSK32 L 33 74 0 31,5 4 62 3
2304026 Mod. HSK32 L 33 75 0 31,5 4 62 3
2304028 Mod. HSK32 L 33 76 0 31,5 4 62 3
2304030 Mod. HSK32 L 33 78 0 31,5 4 62 3
2304032 Mod. HSK32 L 33 80 0 31,5 4 62 3
2304120 Mod. HSK32 L 33 72 0 31,5 4 62 3
2304122 Mod. HSK32 L 33 73 0 31,5 4 62 3
2304124 Mod. HSK32 L 33 74 0 31,5 4 62 3
2304126 Mod. HSK32 L 33 75 0 31,5 4 62 3
2304128 Mod. HSK32 L 33 76 0 31,5 4 62 3
2304130 Mod. HSK32 L 33 78 0 31,5 4 62 3
2304132 Mod. HSK32 L 33 80 0 31,5 4 62 3
Mod. DKN 16/20

Table
2300020 67 16 9 4 61 3
2300022 68 16 9 4 61 3
2300024 69 16 9 4 61 3
2300026 70 16 9 4 61 3
2300028 71 16 9 4 61 3
2300120 67 16 9 6 61 3
2300122 68 16 9 6 61 3
2300124 69 16 9 6 61 3
2300126 70 16 9 6 61 3
2300128 71 16 9 6 61 3
2300220 76 16 9 4 70 3
2300222 77 16 9 4 70 3
2300224 78 16 9 4 70 3
2300226 79 16 9 4 70 3
2300228 80 16 9 4 70 3
2300320 76 16 9 6 70 3
2300322 77 16 9 6 70 3
2300324 78 16 9 6 70 3
2300326 79 16 9 6 70 3
2300328 80 16 9 6 70 3
2301020 67 20 9 4 61 3
2301022 68 20 9 4 61 3
2301024 69 20 9 4 61 3
2301026 70 20 9 4 61 3
2301028 71 20 9 4 61 3
2301120 67 20 9 6 61 3
2301122 68 20 9 6 61 3
2301124 69 20 9 6 61 3
2301126 70 20 9 6 61 3
2301128 71 20 9 6 61 3
2301220 76 20 9 4 70 3
2301222 77 20 9 4 70 3
2301224 78 20 9 4 70 3
2301226 79 20 9 4 70 3
2301228 80 20 9 4 70 3
2301320 76 20 9 6 70 3
2301322 77 20 9 6 70 3
2301324 78 20 9 6 70 3
2301326 79 20 9 6 70 3
2301328 80 20 9 6 70 3
Mod. HSK25R

Table
2302020 76 0 16,5 4 70 3
2302022 77 0 16,5 4 70 3
2302024 78 0 16,5 4 70 3
2302026 79 0 16,5 4 70 3
2302028 80 0 16,5 4 70 3
2302030 82 0 16,5 4 70 3
2302032 84 0 16,5 4 70 3
2302120 76 0 16,5 6 70 3
2302122 77 0 16,5 6 70 3
2302124 78 0 16,5 6 70 3
2302126 79 0 16,5 6 70 3
2302128 80 0 16,5 6 70 3
2302130 82 0 16,5 6 70 3
2302132 84 0 16,5 6 70 3
2302220 76 0 16,5 8 70 3
2302222 77 0 16,5 8 70 3
2302224 78 0 16,5 8 70 3
2302226 79 0 16,5 8 70 3
2302228 80 0 16,5 8 70 3
2302230 82 0 16,5 8 70 3
2302232 84 0 16,5 8 70 3
Mod. HSK32 L 17,5

Table
2303020 68 0 11,5 4 62 3
2303022 69 0 11,5 4 62 3
2303024 70 0 11,5 4 62 3
2303026 71 0 11,5 4 62 3
2303028 72 0 11,5 4 62 3
2303030 73 0 11,5 4 62 3
2303032 74 0 11,5 4 62 3
2303120 68 0 11,5 6 62 3
2303122 69 0 11,5 6 62 3
2303124 70 0 11,5 6 62 3
2303126 71 0 11,5 6 62 3
2303128 72 0 11,5 6 62 3
2303130 73 0 11,5 6 62 3
2303132 74 0 11,5 6 62 3
2303220 68 0 11,5 8 62 3
2303222 69 0 11,5 8 62 3
2303224 70 0 11,5 8 62 3
2303226 71 0 11,5 8 62 3
2303228 72 0 11,5 8 62 3
2303230 73 0 11,5 8 62 3
2303232 74 0 11,5 8 62 3
Mod. HSK32 L 33

Table
2304020 72 0 31,5 4 62 3
2304022 73 0 31,5 4 62 3
2304024 74 0 31,5 4 62 3
2304026 75 0 31,5 4 62 3
2304028 76 0 31,5 4 62 3
2304030 78 0 31,5 4 62 3
2304032 80 0 31,5 4 62 3
2304120 72 0 31,5 4 62 3
2304122 73 0 31,5 4 62 3
2304124 74 0 31,5 4 62 3
2304126 75 0 31,5 4 62 3
2304128 76 0 31,5 4 62 3
2304130 78 0 31,5 4 62 3
2304132 80 0 31,5 4 62 3
