Recessed Centre Adjustable Grooving Cutters materials

Applications:
Used for panel grooving with bevel on both sides, with or against feed direction. Body design allows tool to work close to machine chain.

Machines:
Squaring, edge banding machines and CNC Routers.

Materials:
Chipboard, MDF and plywood panels with or without veneer, or plastic coatings.

Technical Features:
Long lasting FZ tooth shape, positive rake cutting. The decimal adjustment by means of ground shims allows to change slot size. Reinforced steel body.

Re-sharpening:
up to 10 times

WORKINGS

Groove horiz. vert.

PERFORMANCES More info

More info

Drawings and Specs Chart

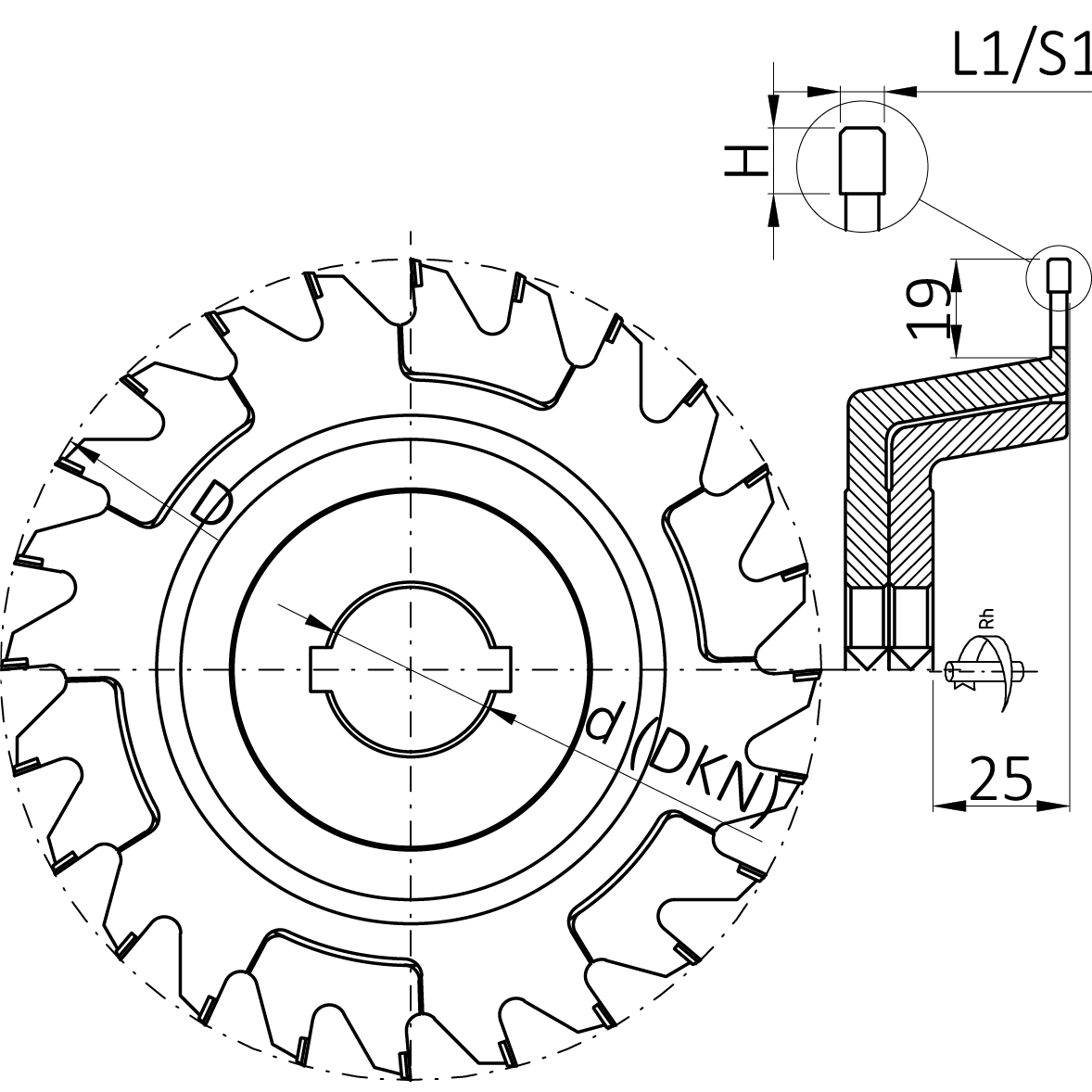

Technical drawings

Tabella ricerca totale


2101020	Tazza	125	3,2	30	6	5,5	5
2101022	Tazza	125	3,2	30	8	5,5	5
2101024	Tazza	125	3,2	30	12	5,5	5
2101026	Tazza	125	4	30	6	7,5	5
2101028	Tazza	125	4	30	8	7,5	5
2101030	Tazza	125	4	30	12	7,5	5
2101032	Tazza	125	6	30	12	11	5
2101034	Tazza	150	3,2	30	6	5,5	5
2101036	Tazza	150	3,2	30	8	5,5	5
2101038	Tazza	150	3,2	30	12	5,5	5
2101040	Tazza	150	4	30	6	7,5	5
2101042	Tazza	150	4	30	8	7,5	5
2101044	Tazza	150	4	30	12	7,5	5
2101046	Tazza	150	6	30	12	11	5
2101048	Tazza	180	3,2	35	8	5,5	5
2101050	Tazza	180	3,2	35	12	5,5	5
2101052	Tazza	180	4	35	8	7,5	5
2101054	Tazza	180	4	35	12	7,5	5
2101056	Tazza	180	4	35	18	7,5	5
2101058	Tazza	180	6	35	18	11	5
2101060	Tazza	200	3,2	40	8	5,5	5
2101062	Tazza	200	3,2	40	12	5,5	5
2101064	Tazza	200	4	40	8	7,5	5
2101066	Tazza	200	4	40	12	7,5	5
2101068	Tazza	200	4	40	18	7,5	5
2101070	Tazza	200	6	40	18	11	5

Tazza

Table


2101020	125	3,2	30	6	5,5	5
2101022	125	3,2	30	8	5,5	5
2101024	125	3,2	30	12	5,5	5
2101026	125	4	30	6	7,5	5
2101028	125	4	30	8	7,5	5
2101030	125	4	30	12	7,5	5
2101032	125	6	30	12	11	5
2101034	150	3,2	30	6	5,5	5
2101036	150	3,2	30	8	5,5	5
2101038	150	3,2	30	12	5,5	5
2101040	150	4	30	6	7,5	5
2101042	150	4	30	8	7,5	5
2101044	150	4	30	12	7,5	5
2101046	150	6	30	12	11	5
2101048	180	3,2	35	8	5,5	5
2101050	180	3,2	35	12	5,5	5
2101052	180	4	35	8	7,5	5
2101054	180	4	35	12	7,5	5
2101056	180	4	35	18	7,5	5
2101058	180	6	35	18	11	5
2101060	200	3,2	40	8	5,5	5
2101062	200	3,2	40	12	5,5	5
2101064	200	4	40	8	7,5	5
2101066	200	4	40	12	7,5	5
2101068	200	4	40	18	7,5	5
2101070	200	6	40	18	11	5

Recessed Centre Adjustable Grooving Cutters materials Schiavon

Schiavon Tools are Manufactured with high-quality materials and cutting edge-technologies, in order to guarantee steady and long-time performances.
Schiavon purchases steel and PCD from suppliers of great value and reliability, among them STEELTEC and ELEMENT SIX.
Machines, production and checking devices are the newest available in the market.
Schiavon offers a wide range of products, satisfying most different needs and requirements for any leading Company.
A system process based even on the selection of quality materials and usage of tools manufactured whit modern machines.

Recessed Centre Grooving Cutters
