Recessed Centre Grooving Cutters with Spurs

Applications:
Used for panel grooving with bevel on both sides, with or against flow direction. Body design allows tool to work close to machine track.

Machines:
Squaring, edge banding machines and CNC Routers.

Materials:
Chipboard, MDF and plywood panels with or without veneer, or plastic coatings.

Technical Features:
Long lasting FZ tooth shape, positive rake cutting. 1 beveling spur at 45° with screw fixing.

Re-sharpening:
up to 10 times
WORKINGS
Groove horiz. vert.
PERFORMANCES
Drawings and Specs Chart

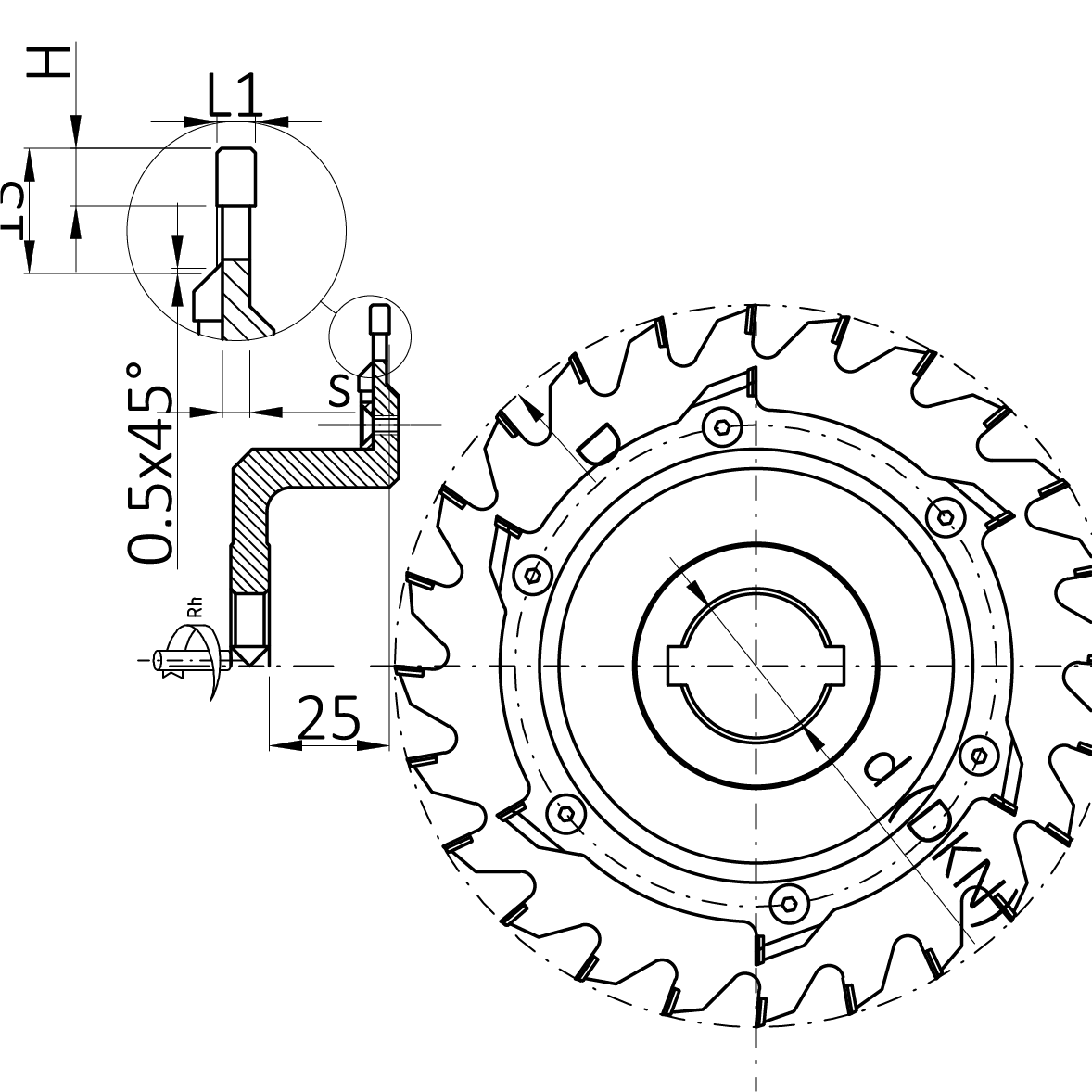

Technical drawings

Tabella ricerca totale
2003020 125 2,8 30 8 4 5
2003022 125 2,8 30 12 4 5
2003024 125 2,8 30 18 6 5
2003026 125 3 30 8 4 5
2003028 125 3 30 12 4 5
2003030 125 3 30 18 6 5
2003032 125 3,2 30 8 4 5
2003034 125 3,2 30 12 4 5
2003036 125 3,2 30 18 6 5
2003038 125 3,5 30 8 4 5
2003040 125 3,5 30 12 4 5
2003042 125 3,5 30 18 6 5
2003044 125 4 30 8 4 5
2003046 125 4 30 12 4 5
2003048 125 4 30 18 6 5
2003050 125 4,2 30 12 4 5
2003052 125 4,2 30 18 6 5
2003054 125 4,5 30 8 4 5
2003056 125 4,5 30 12 4 5
2003058 125 4,5 30 18 6 5
2003060 125 5 30 8 4 5
2003062 125 5 30 12 4 5
2003064 125 5 30 18 6 5
2003066 125 6 30 8 4 5
2003068 125 6 30 12 4 5
2003070 125 6 30 18 6 5
2003072 150 2,8 30 12 4 5
2003074 150 2,8 30 18 6 5
2003076 150 2,8 30 24 6 5
2003078 150 3 30 12 4 5
2003080 150 3 30 18 6 5
2003082 150 3 30 24 6 5
2003084 150 3,2 30 12 4 5
2003086 150 3,2 30 18 6 5
2003088 150 3,2 30 24 6 5
2003090 150 3,5 30 12 4 5
2003092 150 3,5 30 18 6 5
2003094 150 3,5 30 24 6 5
2003096 150 4 30 12 4 5
2003098 150 4 30 18 6 5
2003100 150 4 30 24 6 5
2003102 150 4,2 30 18 6 5
2003104 150 4,2 30 24 6 5
2003106 150 4,5 30 12 4 5
2003108 150 4,5 30 18 6 5
2003110 150 4,5 30 24 6 5
2003112 150 5 30 12 4 5
2003114 150 5 30 18 6 5
2003116 150 5 30 24 6 5
2003118 150 6 30 12 4 5
2003120 150 6 30 18 6 5
2003122 150 6 30 24 6 5
2003124 150 8 30 12 4 5
2003126 150 8 30 18 6 5
2003128 150 8 30 24 6 5
2003130 180 2,8 35 12 4 5
2003132 180 2,8 35 18 6 5
2003134 180 2,8 35 24 6 5
2003136 180 3 35 12 4 5
2003138 180 3 35 18 6 5
2003140 180 3 35 24 6 5
2003142 180 3,2 35 12 4 5
2003144 180 3,2 35 18 6 5
2003146 180 3,2 35 24 6 5
2003148 180 3,5 35 12 4 5
2003150 180 3,5 35 18 6 5
2003152 180 3,5 35 24 6 5
2003154 180 4 35 12 4 5
2003156 180 4 35 18 6 5
2003158 180 4 35 24 6 5
2003160 180 4,2 35 18 6 5
2003162 180 4,2 35 24 6 5
2003164 180 4,5 35 12 4 5
2003166 180 4,5 35 18 6 5
2003168 180 4,5 35 24 6 5
2003170 180 5 35 12 4 5
2003172 180 5 35 18 6 5
2003174 180 5 35 24 6 5
2003176 180 6 35 12 4 5
2003178 180 6 35 18 6 5
2003180 180 6 35 24 6 5
2003182 180 8 35 12 4 5
2003184 180 8 35 18 6 5
2003186 180 8 35 24 6 5
2003188 200 3 40 12 4 5
2003190 200 3 40 18 6 5
2003192 200 3 40 24 6 5
2003194 200 3,2 40 12 4 5
2003196 200 3,2 40 18 6 5
2003198 200 3,2 40 24 6 5
2003200 200 3,5 40 12 4 5
2003202 200 3,5 40 18 6 5
2003204 200 3,5 40 24 6 5
2003206 200 4 40 12 4 5
2003208 200 4 40 18 6 5
2003210 200 4 40 24 6 5
2003212 200 4,2 40 18 6 5
2003214 200 4,2 40 24 6 5
2003216 200 4,5 40 12 4 5
2003218 200 4,5 40 18 6 5
2003220 200 4,5 40 24 6 5
2003222 200 5 40 12 4 5
2003224 200 5 40 18 6 5
2003226 200 5 40 24 6 5
2003228 200 6 40 12 4 5
2003230 200 6 40 18 6 5
2003232 200 6 40 24 6 5
2003234 200 8 40 12 4 5
2003236 200 8 40 18 6 5
2003238 200 8 40 24 6 5

Table
2003020 125 2,8 30 8 4 5
2003022 125 2,8 30 12 4 5
2003024 125 2,8 30 18 6 5
2003026 125 3 30 8 4 5
2003028 125 3 30 12 4 5
2003030 125 3 30 18 6 5
2003032 125 3,2 30 8 4 5
2003034 125 3,2 30 12 4 5
2003036 125 3,2 30 18 6 5
2003038 125 3,5 30 8 4 5
2003040 125 3,5 30 12 4 5
2003042 125 3,5 30 18 6 5
2003044 125 4 30 8 4 5
2003046 125 4 30 12 4 5
2003048 125 4 30 18 6 5
2003050 125 4,2 30 12 4 5
2003052 125 4,2 30 18 6 5
2003054 125 4,5 30 8 4 5
2003056 125 4,5 30 12 4 5
2003058 125 4,5 30 18 6 5
2003060 125 5 30 8 4 5
2003062 125 5 30 12 4 5
2003064 125 5 30 18 6 5
2003066 125 6 30 8 4 5
2003068 125 6 30 12 4 5
2003070 125 6 30 18 6 5
2003072 150 2,8 30 12 4 5
2003074 150 2,8 30 18 6 5
2003076 150 2,8 30 24 6 5
2003078 150 3 30 12 4 5
2003080 150 3 30 18 6 5
2003082 150 3 30 24 6 5
2003084 150 3,2 30 12 4 5
2003086 150 3,2 30 18 6 5
2003088 150 3,2 30 24 6 5
2003090 150 3,5 30 12 4 5
2003092 150 3,5 30 18 6 5
2003094 150 3,5 30 24 6 5
2003096 150 4 30 12 4 5
2003098 150 4 30 18 6 5
2003100 150 4 30 24 6 5
2003102 150 4,2 30 18 6 5
2003104 150 4,2 30 24 6 5
2003106 150 4,5 30 12 4 5
2003108 150 4,5 30 18 6 5
2003110 150 4,5 30 24 6 5
2003112 150 5 30 12 4 5
2003114 150 5 30 18 6 5
2003116 150 5 30 24 6 5
2003118 150 6 30 12 4 5
2003120 150 6 30 18 6 5
2003122 150 6 30 24 6 5
2003124 150 8 30 12 4 5
2003126 150 8 30 18 6 5
2003128 150 8 30 24 6 5
2003130 180 2,8 35 12 4 5
2003132 180 2,8 35 18 6 5
2003134 180 2,8 35 24 6 5
2003136 180 3 35 12 4 5
2003138 180 3 35 18 6 5
2003140 180 3 35 24 6 5
2003142 180 3,2 35 12 4 5
2003144 180 3,2 35 18 6 5
2003146 180 3,2 35 24 6 5
2003148 180 3,5 35 12 4 5
2003150 180 3,5 35 18 6 5
2003152 180 3,5 35 24 6 5
2003154 180 4 35 12 4 5
2003156 180 4 35 18 6 5
2003158 180 4 35 24 6 5
2003160 180 4,2 35 18 6 5
2003162 180 4,2 35 24 6 5
2003164 180 4,5 35 12 4 5
2003166 180 4,5 35 18 6 5
2003168 180 4,5 35 24 6 5
2003170 180 5 35 12 4 5
2003172 180 5 35 18 6 5
2003174 180 5 35 24 6 5
2003176 180 6 35 12 4 5
2003178 180 6 35 18 6 5
2003180 180 6 35 24 6 5
2003182 180 8 35 12 4 5
2003184 180 8 35 18 6 5
2003186 180 8 35 24 6 5
2003188 200 3 40 12 4 5
2003190 200 3 40 18 6 5
2003192 200 3 40 24 6 5
2003194 200 3,2 40 12 4 5
2003196 200 3,2 40 18 6 5
2003198 200 3,2 40 24 6 5
2003200 200 3,5 40 12 4 5
2003202 200 3,5 40 18 6 5
2003204 200 3,5 40 24 6 5
2003206 200 4 40 12 4 5
2003208 200 4 40 18 6 5
2003210 200 4 40 24 6 5
2003212 200 4,2 40 18 6 5
2003214 200 4,2 40 24 6 5
2003216 200 4,5 40 12 4 5
2003218 200 4,5 40 18 6 5
2003220 200 4,5 40 24 6 5
2003222 200 5 40 12 4 5
2003224 200 5 40 18 6 5
2003226 200 5 40 24 6 5
2003228 200 6 40 12 4 5
2003230 200 6 40 18 6 5
2003232 200 6 40 24 6 5
2003234 200 8 40 12 4 5
2003236 200 8 40 18 6 5
2003238 200 8 40 24 6 5


Recessed Centre Grooving Cutters with Spurs materials Schiavon


Schiavon Tools are Manufactured with high-quality materials and cutting edge-technologies, in order to guarantee steady and long-time performances.
Schiavon purchases steel and PCD from suppliers of great value and reliability, among them STEELTEC and ELEMENT SIX.
Machines, production and checking devices are the newest available in the market.
Schiavon offers a wide range of products, satisfying most different needs and requirements for any leading Company.
A process based on the selection of quality materials manufactured whit modern machines.

Recessed Centre type Grooving Cutters model with Spurs
