Adjustable Jointing Cutter

WORKINGS
1 side double vertical finish
2 sides vertical finish
PERFORMANCES
Drawings and Specs Chart
Technical drawings

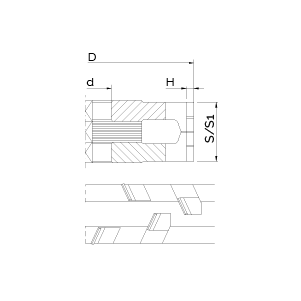

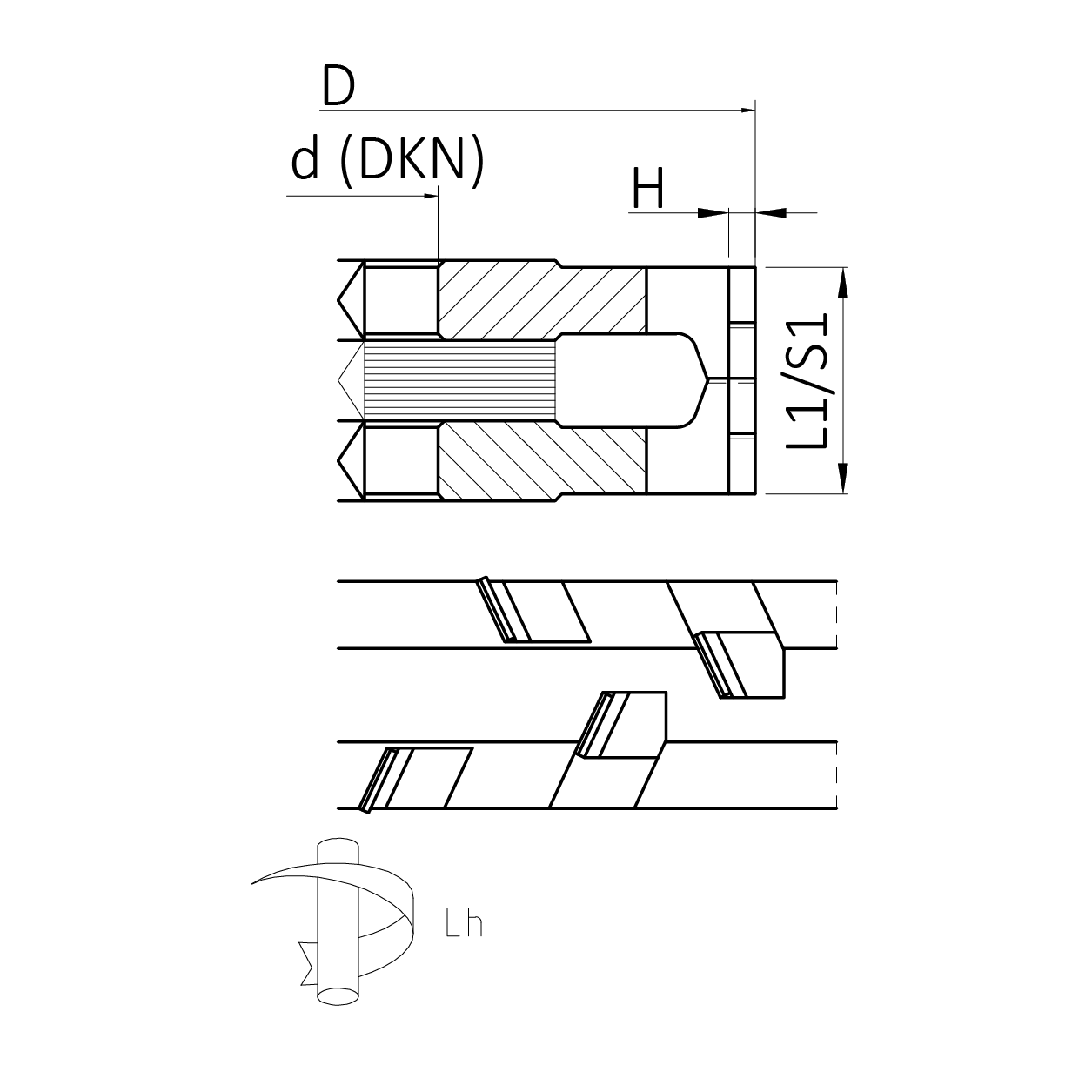

TYPE 1

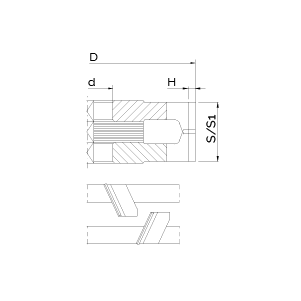

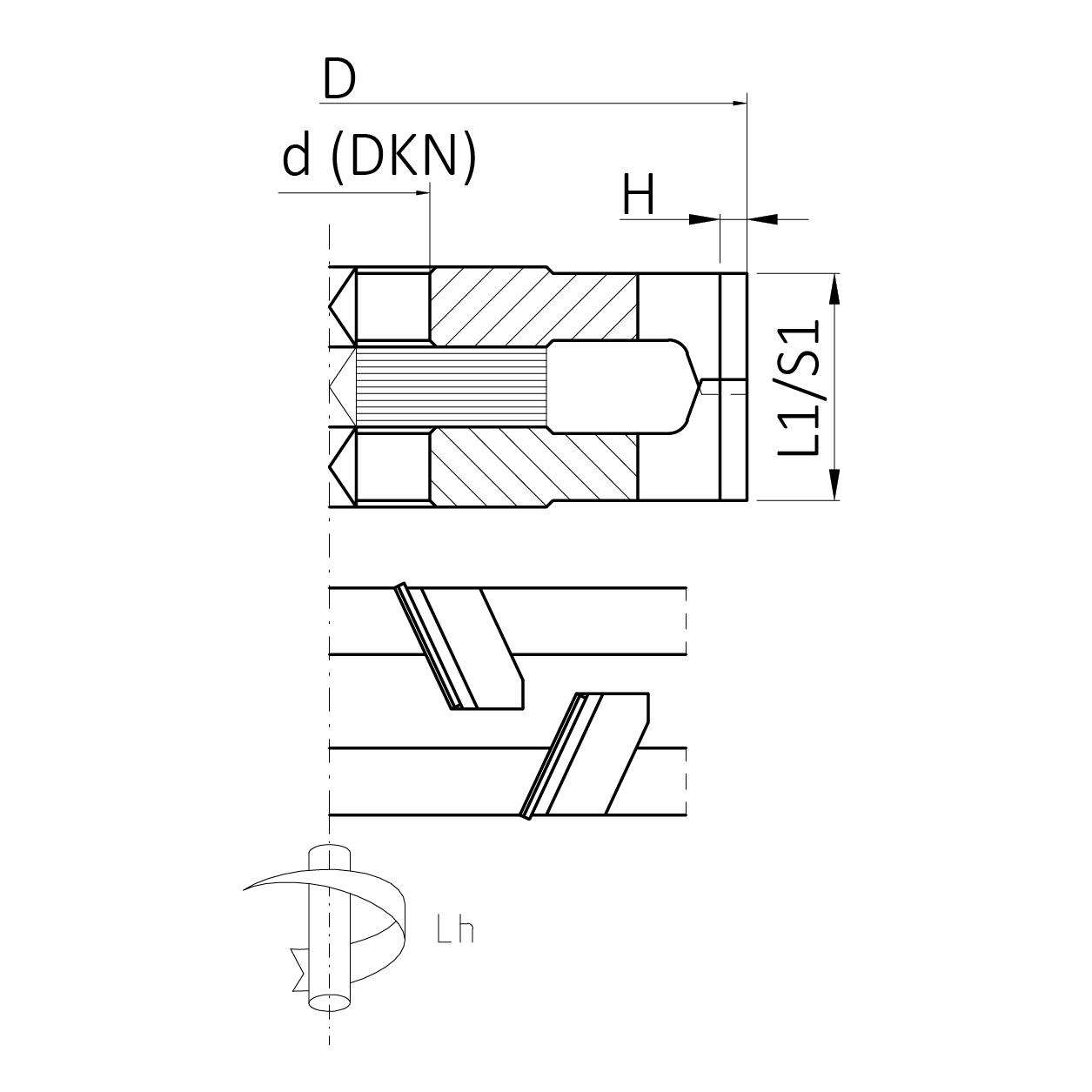

TYPE 2
TYPE 1

Table
900020 80 22 34 30 3 4
900024 80 24 38 30 3 4
900026 80 32 48 30 3 4
900030 100 22 34 30 3 4
900034 100 32 48 30 3 4
900036 125 22 34 30 3 4
900040 125 22 34 30 4 4
900044 150 22 34 30 4 5
900048 180 22 34 35 4 5
900050 180 22 34 35 6 5
900056 200 22 34 35 4 5
900060 200 22 34 35 5 5
900064 200 22 34 35 6 5
900068 200 22 34 40 4 5
900076 200 22 34 40 5 5
900084 200 22 34 40 6 5
TYPE 2

Table
900022 80 22 34 30 3 4
900028 85 22 34 30 3 4
900032 100 22 34 30 3 4
900038 125 22 34 30 3 4
900042 125 22 34 30 4 4
900046 150 22 34 30 4 5
900052 180 22 34 35 4 5
900054 180 22 34 35 6 5
900058 200 22 34 35 4 5
900062 200 22 34 35 5 5
900066 200 22 34 35 6 5
900070 200 22 34 40 4 5
900078 200 22 34 40 5 5
900086 200 22 34 40 6 5
Applications:
Panel finishing both against and with feed.

Machines:
Squaring and edge banding machines with flush trimming capability.

Materials:
Chipboard, MDF and plywood panels with or without veneer, or plastic coatings.

Technical Features:
The decimal adjustment by means of ground shims allows to change wearing line. Spiral wound tips with shear angle for best finishing on coated panels. Optimized tip pocket design for fast dust flow.

Re-sharpening:
H 4 up to 8 times
H 5 up to 10 times
Contact us for a quote
