Jointing Cutters

Applications:
Panel finishing both against and with feed.

Machines:
Squaring and edge banding machines with flush trimming capability.

Materials:
Chipboard, MDF and plywood panels with or without veneer, or plastic coatings.

Technical Features:
Spiral wound tips with shear angle. Low noise thanks to closed body design. Optimized tip pocket design for fast dust flow.

Re-sharpening:
H 3 up to 5 times
H 4 up to 8 times
H 5 up to 10 times
WORKINGS
1 side double vertical finish
2 sides vertical finish
PERFORMANCES
Drawings and Specs Chart
Technical drawings

TESTA ANTISCHEGGIA FISSA - TYPE 1
Tabella ricerca totale
1100032 TYPE 1 80 43 30 3 3
1100036 TYPE 1 85 43 30 3 3
1100038 TYPE 1 85 43 30 3 4
1100042 TYPE 1 100 24 30 3 3
1100044 TYPE 1 100 24 30 3 4
1100046 TYPE 1 100 34 30 2 3
1100048 TYPE 1 100 34 30 3 3
1100050 TYPE 1 100 34 30 3 4
1100052 TYPE 1 100 34 30 4 4
1100080 TYPE 1 125 24 30 3 3
1100082 TYPE 1 125 24 30 3 4
1100084 TYPE 1 125 24 30 4 3
1100086 TYPE 1 125 24 30 4 4
1100090 TYPE 1 125 34 30 3 3
1100092 TYPE 1 125 34 30 3 4
1100120 TYPE 1 150 24 30 4 5
1100122 TYPE 1 150 34 30 4 5
1100126 TYPE 1 180 24 35 4 5
1100128 TYPE 1 180 24 35 6 5
1100130 TYPE 1 180 34 35 4 5
1100132 TYPE 1 180 34 35 6 5
1100146 TYPE 1 200 24 35 4 5
1100150 TYPE 1 200 24 35 6 5
1100152 TYPE 1 200 34 35 4 5
1100154 TYPE 1 200 34 35 6 5
1100156 TYPE 1 200 48 35 6 5
1100164 TYPE 1 200 24 40 4 5
1100168 TYPE 1 200 24 40 6 5
1100170 TYPE 1 200 34 40 4 5
1100172 TYPE 1 200 34 40 6 5
1100174 TYPE 1 200 48 40 6 5
1100180 TYPE 1 220 34 35 4 5
1100020 TYPE 2 60 50 20 2 3
1100022 TYPE 2 60 50 20 3 3
1100024 TYPE 2 60 54 20 2 3
1100026 TYPE 2 60 54 20 3 3
1100034 TYPE 2 80 65 30 3 3
1100054 TYPE 2 100 43 30 2 3
1100056 TYPE 2 100 43 30 3 3
1100058 TYPE 2 100 43 30 3 4
1100064 TYPE 2 100 48 30 3 3
1100066 TYPE 2 100 48 30 3 4
1100200 TYPE 2 100 55 30 3 3
1100202 TYPE 2 100 55 30 3 4
1100068 TYPE 2 100 65 30 3 4
1100102 TYPE 2 125 48 30 3 3
1100104 TYPE 2 125 48 30 3 4
1100112 TYPE 2 125 65 30 3 3
1100114 TYPE 2 125 65 30 3 4
1100116 TYPE 2 125 65 30 4 3
1100118 TYPE 2 125 86 30 4 4
1100134 TYPE 2 180 43 35 4 5
1100140 TYPE 2 180 65 35 4 5
1100142 TYPE 2 180 86 35 4 5
1100158 TYPE 2 200 65 35 6 5
1100160 TYPE 2 200 86 35 6 5
1100176 TYPE 2 200 65 40 6 5
1100178 TYPE 2 200 86 40 6 5
1100184 TYPE 2 220 65 35 4 5
1100186 TYPE 2 220 86 35 4 5
1100188 TYPE 2 220 110 35 4 5
1100194 TYPE 2 220 65 60 4 5
1100196 TYPE 2 220 86 60 4 5
1100198 TYPE 2 220 110 60 4 5
1100028 TYPE 3 80 43 20 3 3
1100030 TYPE 3 80 43 30 3 3
1100060 TYPE 3 100 48 30 2 3
1100062 TYPE 3 100 48 30 2 4
1100070 TYPE 3 100 65 30 2 3
1100072 TYPE 3 100 65 30 3 3
1100076 TYPE 3 100 86 30 3 3
1100136 TYPE 3 180 48 35 4 5
1100138 TYPE 3 180 48 35 6 5
1100182 TYPE 3 220 48 35 4 5
1100190 TYPE 3 220 34 60 4 5
1100192 TYPE 3 220 48 60 4 5
1100074 TYPE 4 100 65 30 3 3
1100094 TYPE 4 125 34 30 3 3
1100096 TYPE 4 125 34 30 3 4
1100098 TYPE 4 125 43 30 3 3
1100040 TYPE 5 100 24 30 3 3
1100078 TYPE 5 125 24 30 3 3
1100088 TYPE 5 125 34 30 3 3
1100144 TYPE 5 200 24 35 4 5
1100148 TYPE 5 200 24 35 6 5
1100162 TYPE 5 200 24 40 4 5
1100166 TYPE 5 200 24 40 6 5
1100100 TYPE 6 125 43 30 3 3
1100106 TYPE 6 125 65 30 3 3
1100108 TYPE 6 125 65 30 3 4
1100110 TYPE 6 125 65 30 4 3
1100124 TYPE 6 150 48 30 4 5
TYPE 1

Table
1100032 80 43 30 3 3
1100036 85 43 30 3 3
1100038 85 43 30 3 4
1100042 100 24 30 3 3
1100044 100 24 30 3 4
1100046 100 34 30 2 3
1100048 100 34 30 3 3
1100050 100 34 30 3 4
1100052 100 34 30 4 4
1100080 125 24 30 3 3
1100082 125 24 30 3 4
1100084 125 24 30 4 3
1100086 125 24 30 4 4
1100090 125 34 30 3 3
1100092 125 34 30 3 4
1100120 150 24 30 4 5
1100122 150 34 30 4 5
1100126 180 24 35 4 5
1100128 180 24 35 6 5
1100130 180 34 35 4 5
1100132 180 34 35 6 5
1100146 200 24 35 4 5
1100150 200 24 35 6 5
1100152 200 34 35 4 5
1100154 200 34 35 6 5
1100156 200 48 35 6 5
1100164 200 24 40 4 5
1100168 200 24 40 6 5
1100170 200 34 40 4 5
1100172 200 34 40 6 5
1100174 200 48 40 6 5
1100180 220 34 35 4 5

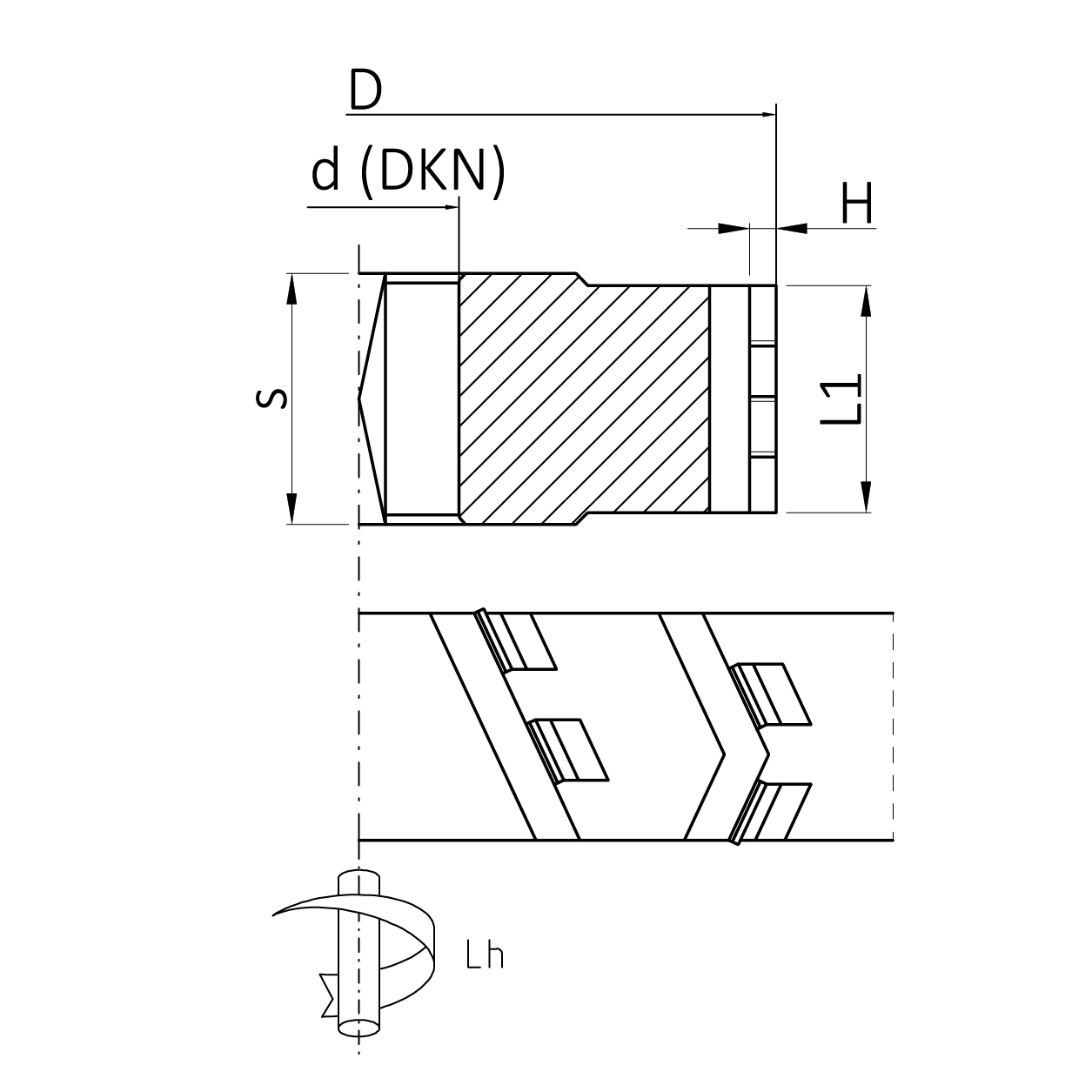

TYPE 2

Table
1100020 60 50 20 2 3
1100022 60 50 20 3 3
1100024 60 54 20 2 3
1100026 60 54 20 3 3
1100034 80 65 30 3 3
1100054 100 43 30 2 3
1100056 100 43 30 3 3
1100058 100 43 30 3 4
1100064 100 48 30 3 3
1100066 100 48 30 3 4
1100068 100 65 30 3 4
1100102 125 48 30 3 3
1100104 125 48 30 3 4
1100112 125 65 30 3 3
1100114 125 65 30 3 4
1100116 125 65 30 4 3
1100118 125 86 30 4 4
1100134 180 43 35 4 5
1100140 180 65 35 4 5
1100142 180 86 35 4 5
1100158 200 65 35 6 5
1100160 200 86 35 6 5
1100176 200 65 40 6 5
1100178 200 86 40 6 5
1100184 220 65 35 4 5
1100186 220 86 35 4 5
1100188 220 110 35 4 5
1100194 220 65 60 4 5
1100196 220 86 60 4 5
1100198 220 110 60 4 5
1100200 100 55 30 3 3
1100202 100 55 30 3 4

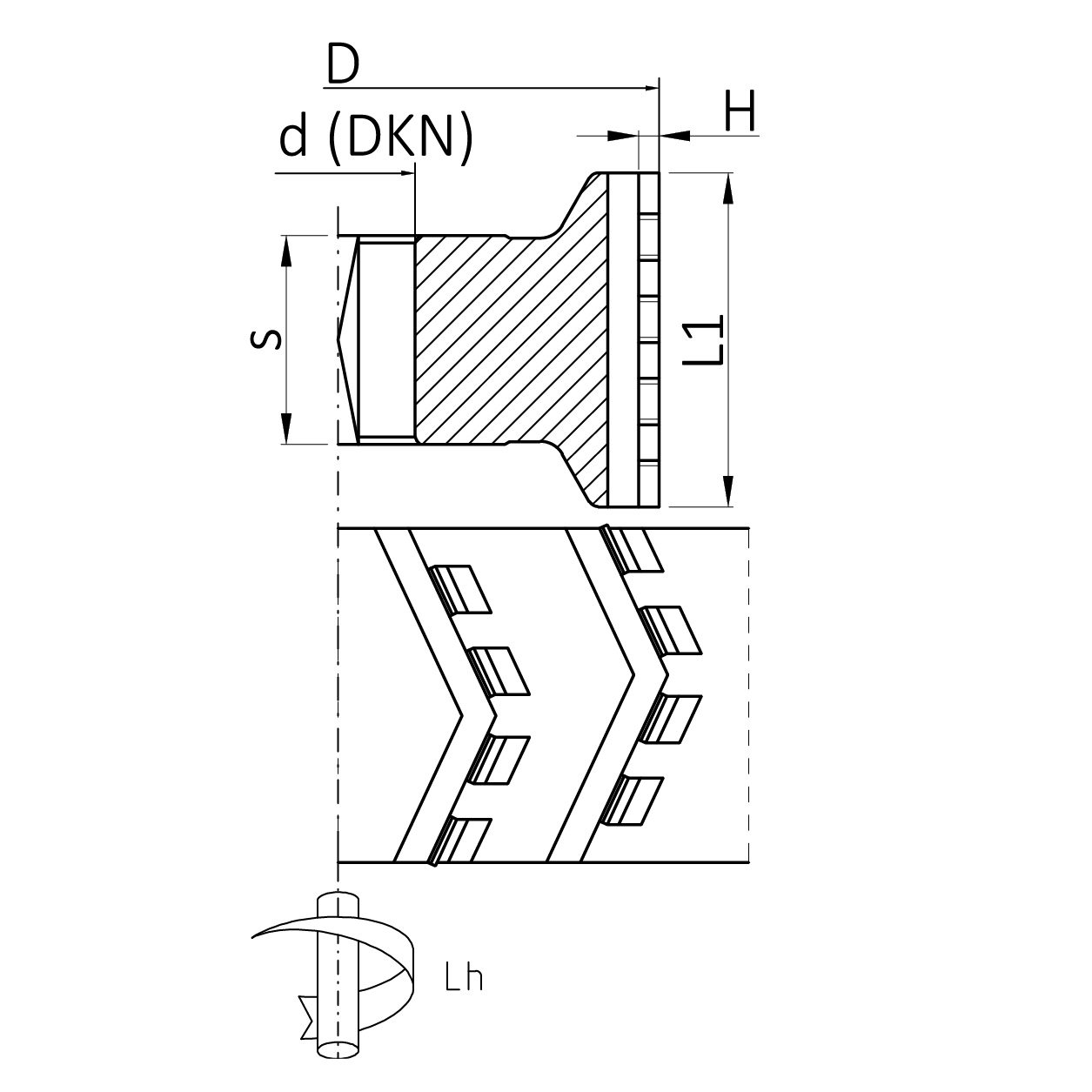

TYPE 3

Table
1100028 80 43 20 3 3
1100030 80 43 30 3 3
1100060 100 48 30 2 3
1100062 100 48 30 2 4
1100070 100 65 30 2 3
1100072 100 65 30 3 3
1100076 100 86 30 3 3
1100136 180 48 35 4 5
1100138 180 48 35 6 5
1100182 220 48 35 4 5
1100190 220 34 60 4 5
1100192 220 48 60 4 5

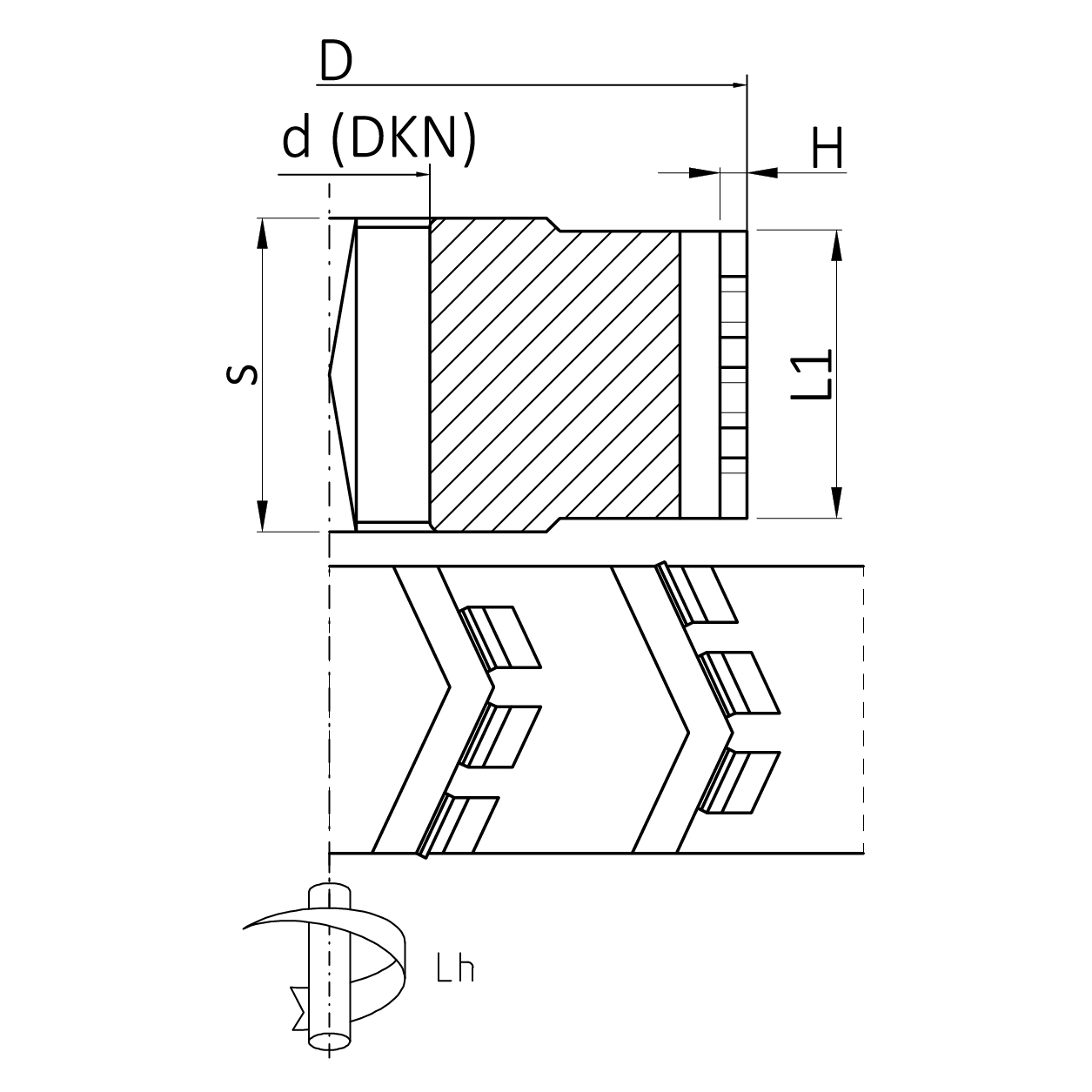

TYPE 4

Table
1100074 100 65 30 3 3
1100094 125 34 30 3 3
1100096 125 34 30 3 4
1100098 125 43 30 3 3

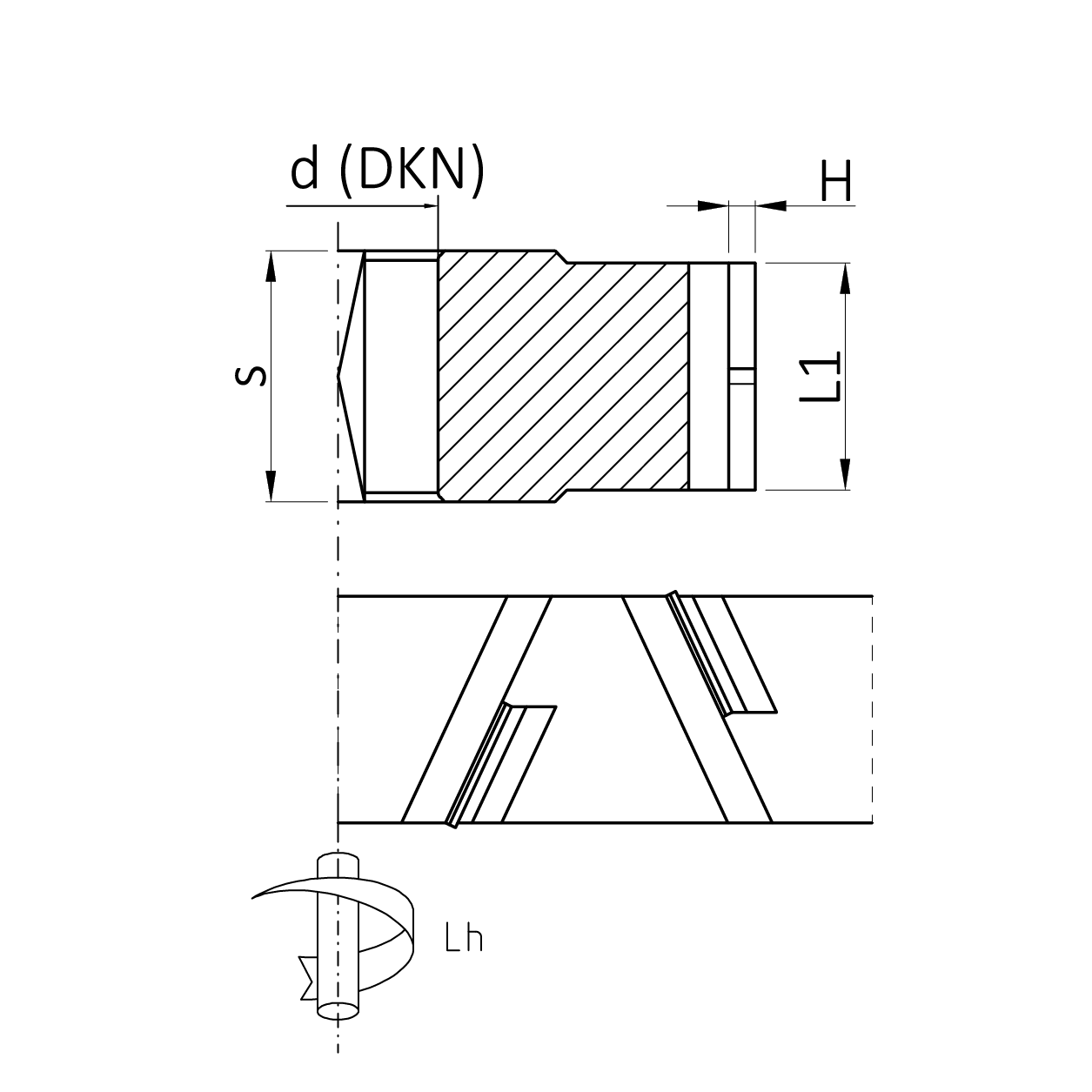

TYPE 5

Table
1100040 100 24 30 3 3
1100078 125 24 30 3 3
1100088 125 34 30 3 3
1100144 200 24 35 4 5
1100148 200 24 35 6 5
1100162 200 24 40 4 5
1100166 200 24 40 6 5

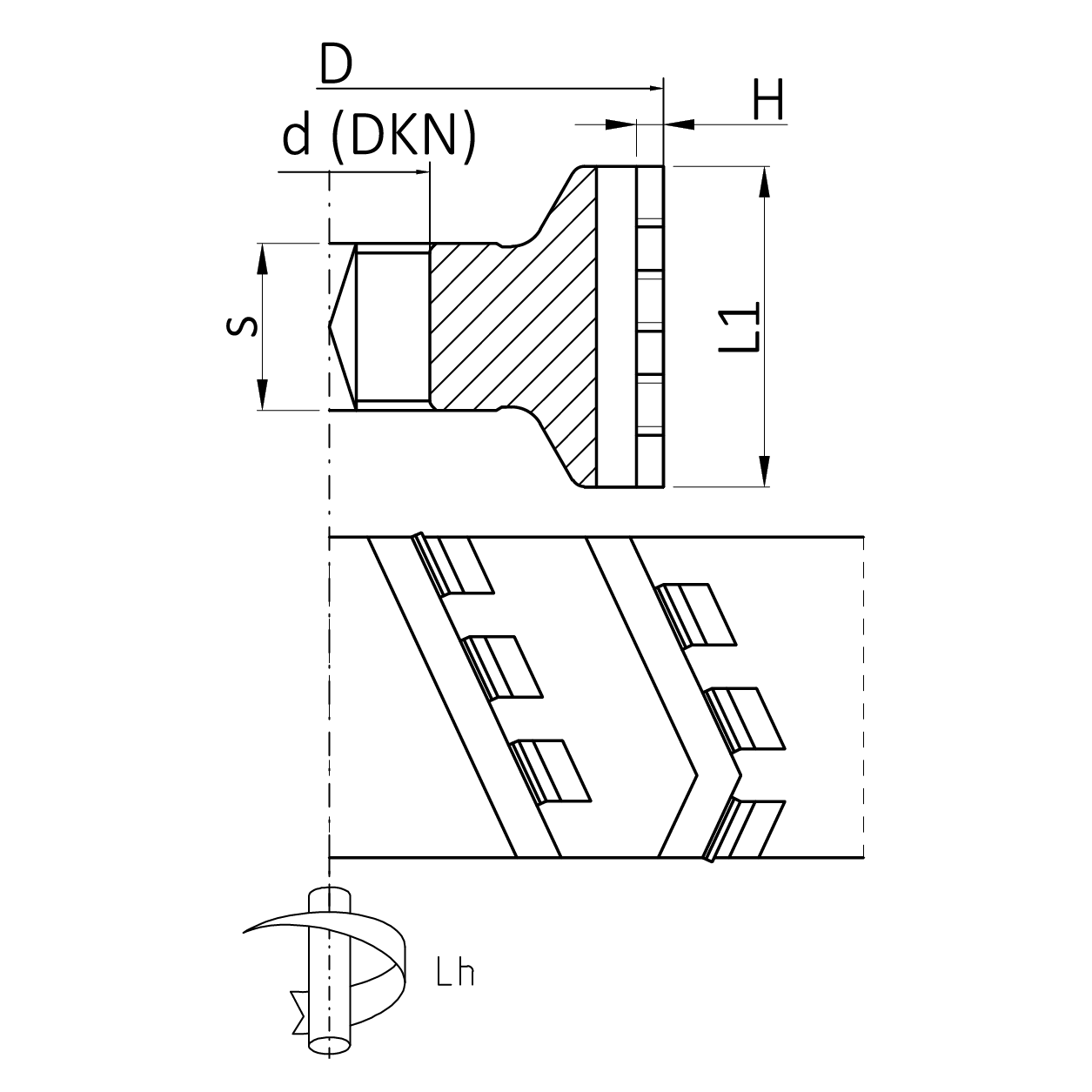

TYPE 6

Table
1100100 125 43 30 3 3
1100106 125 65 30 3 3
1100108 125 65 30 3 4
1100110 125 65 30 4 3
1100124 150 48 30 4 5


Jointing Cutters high-quality materials Schiavon


Schiavon Tools are all Manufactured with high-quality materials and cutting edge-technologies, in order to guarantee even steady and long-time performances.
Schiavon purchases steel and PCD from suppliers of great value and reliability, among them STEELTEC and ELEMENT SIX.
Machines, production and checking devices are the newest available in the market.
Schiavon offers a wide range of products, satisfying most different needs and requirements for any leading Company.
We follow a process based on the selection of quality materials and on the usage of tools manufactured With modern tool machines.
