HP 2

WORKINGS
Contouring
Drill milling
Eccentric holes
External milling roughing and finishing
PERFORMANCES
Drawings and Specs Chart
Technical drawings

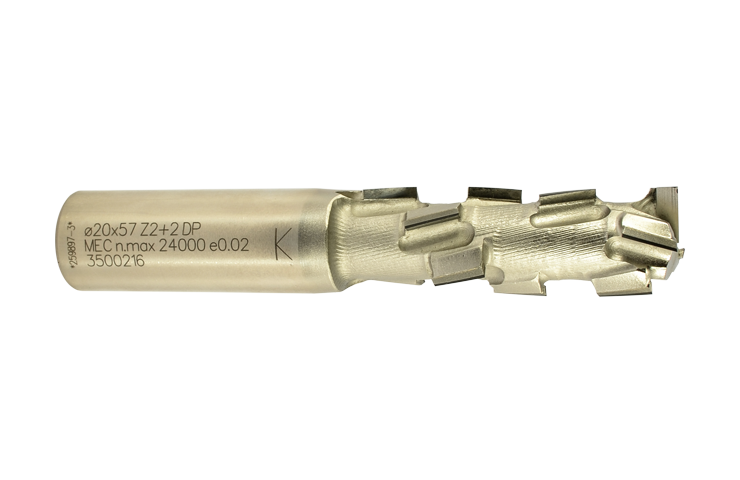

HP2
HP2 CARBIDE PLUNGE CUT

Table
3500104 3500105 16 23 50 85 20 2+2 2 ,5
3500112 3500113 18 27 50 85 20 2+2 2 ,5
3500120 3500121 18 27 55 90 25 2+2 2 ,5
3500128 3500129 18 36 50 95 20 2+2 2 ,5
3500136 3500137 18 36 55 100 25 2+2 2 ,5
3500144 3500145 20 27 50 85 20 2+2 2 ,5
3500152 3500153 20 27 55 90 25 2+2 2 ,5
3500160 3500161 20 36 50 95 20 2+2 2 ,5
3500168 3500169 20 36 55 100 25 2+2 2 ,5
3500176 3500177 20 46 50 105 20 2+2 2 ,5
3500184 3500185 20 46 55 110 25 2+2 2 ,5
3500192 3500193 25 67 50 126 20 2+2 2 ,5
3500200 3500201 25 67 55 133 25 2+2 2 ,5
3500208 3500209 25 86 55 150 25 2+2 2 ,5
3500216 3500217 20 57 50 117 20 2+2 2 ,5
3500224 3500225 20 57 55 122 25 2+2 2 ,5
HP2 PCD PLUNGE CUT

Table
3501104 3501105 16 23 50 85 20 2+2 2 ,5
3501112 3501113 18 27 50 85 20 2+2 2 ,5
3501120 3501121 18 27 55 90 25 2+2 2 ,5
3501128 3501129 18 36 50 95 20 2+2 2 ,5
3501136 3501137 18 36 55 100 25 2+2 2 ,5
3501144 3501145 20 27 50 85 20 2+2 2 ,5
3501152 3501153 20 27 55 90 25 2+2 2 ,5
3501160 3501161 20 36 50 95 20 2+2 2 ,5
3501168 3501169 20 36 55 100 25 2+2 2 ,5
3501176 3501177 20 46 50 105 20 2+2 2 ,5
3501184 3501185 20 46 55 110 25 2+2 2 ,5
3501192 3501193 25 67 50 126 20 2+2 2 ,5
3501200 3501201 25 67 55 133 25 2+2 2 ,5
3501208 3501209 25 86 55 150 25 2+2 2 ,5
3501216 3501217 20 57 50 117 20 2+2 2 ,5
3501224 3501225 20 57 55 122 25 2+2 2 ,5
Applications:
Finishing tool for cutting panels at high feed rates.

Machines:
Router CNC.

Materials:
chipboard, MDF and plywood panels with or without veneer.

Technical features:
full configuration Z2 effective. Polished PCD tips with pos./neg. cutting angle which, together with the full effective arrangement of the Z2 tips, offers a fairly good finish at high feed rate, low noise and low vibration rate. Radius pocket for chips for better powder flow. Available in hard metal or PCD plunge cut. Ground shank with h6 tolerance for mounting on Hydro, Tribos or Heat-shrink tool holders.

Regrinding:
up to 3 times
Contact us for a quote
