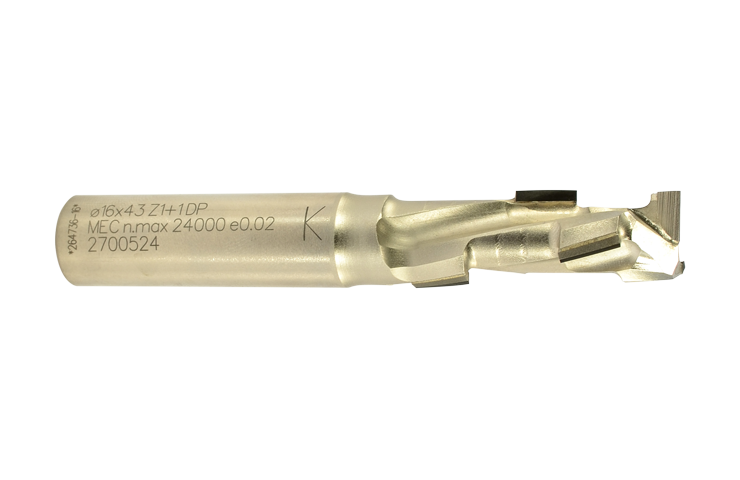

PL25

Applications:
Entry level CNC panel routing.

Machines:
CNC Routers.

Materials:
Chipboard, MDF and plywood panels with or without veneer.

Technical Features:
Z1+1 Configuration. Polished PCD tips with pos./neg. shear angle. Helical cutting design, with radius chip pocket for improved dust flow. Carbide or PCD plunge cut available. Ground shank. Even if this is a basic tool, it is manufactured with finishing and specs, typically found on higher level tools.

Re-sharpening:
up to 3 times
WORKINGS
Contouring
Drill milling
Eccentric holes
External milling roughing and finishing
PERFORMANCES
Drawings and Specs Chart

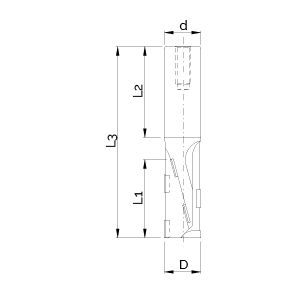

Technical drawings

PL25
Tabella ricerca totale
2700500 PL 25 CARBIDE PLUNGE CUT 8 22 12 40 72 1 2
2700502 PL 25 CARBIDE PLUNGE CUT 10 25 12 40 75 1 2
2700504 PL 25 CARBIDE PLUNGE CUT 12 25 12 40 75 1 2
2700506 PL 25 CARBIDE PLUNGE CUT 12 25 16 50 85 1 2
2700508 PL 25 CARBIDE PLUNGE CUT 12 25 20 50 85 1 2
2700510 PL 25 CARBIDE PLUNGE CUT 12 25 25 55 90 1 2
2700512 PL 25 CARBIDE PLUNGE CUT 12 35 12 40 85 1 2
2700514 PL 25 CARBIDE PLUNGE CUT 14 25 16 50 85 1 2
2700516 PL 25 CARBIDE PLUNGE CUT 16 25 16 50 85 1 2
2700518 PL 25 CARBIDE PLUNGE CUT 16 25 20 50 85 1 2
2700520 PL 25 CARBIDE PLUNGE CUT 16 35 16 50 95 1 2
2700522 PL 25 CARBIDE PLUNGE CUT 16 35 20 50 95 1 2
2700524 PL 25 CARBIDE PLUNGE CUT 16 43 16 50 105 1 2
2700526 PL 25 CARBIDE PLUNGE CUT 16 43 20 50 105 1 2
2700528 PL 25 CARBIDE PLUNGE CUT 18 25 16 50 85 1 2
2700530 PL 25 CARBIDE PLUNGE CUT 18 25 20 50 85 1 2
2700532 PL 25 CARBIDE PLUNGE CUT 18 25 25 55 90 1 2
2700534 PL 25 CARBIDE PLUNGE CUT 18 35 16 50 95 1 2
2700536 PL 25 CARBIDE PLUNGE CUT 18 35 20 50 95 1 2
2700538 PL 25 CARBIDE PLUNGE CUT 18 35 25 55 100 1 2
2700540 PL 25 CARBIDE PLUNGE CUT 18 43 16 50 105 1 2
2700542 PL 25 CARBIDE PLUNGE CUT 18 43 20 50 105 1 2
2700544 PL 25 CARBIDE PLUNGE CUT 18 43 25 55 110 1 2
2700546 PL 25 CARBIDE PLUNGE CUT 20 25 20 50 85 1 2
2700548 PL 25 CARBIDE PLUNGE CUT 20 25 25 55 90 1 2
2700550 PL 25 CARBIDE PLUNGE CUT 20 35 20 50 95 1 2
2700552 PL 25 CARBIDE PLUNGE CUT 20 35 25 55 100 1 2
2700554 PL 25 CARBIDE PLUNGE CUT 20 43 20 50 105 1 2
2700556 PL 25 CARBIDE PLUNGE CUT 20 43 25 55 110 1 2
2700558 PL 25 CARBIDE PLUNGE CUT 20 52 20 50 112 1 2
2700560 PL 25 CARBIDE PLUNGE CUT 20 52 25 55 117 1 2
2700562 PL 25 CARBIDE PLUNGE CUT 20 65 20 50 125 1 2
2700564 PL 25 CARBIDE PLUNGE CUT 20 65 25 55 130 1 2
2700566 PL 25 CARBIDE PLUNGE CUT 25 85 20 50 145 1 2
2700568 PL 25 CARBIDE PLUNGE CUT 25 85 25 55 150 1 2
2700800 PL 25 CARBIDE PLUNGE CUT 12 25 12 40 75 1 2
2700802 PL 25 CARBIDE PLUNGE CUT 12 35 12 40 85 1 2
2700804 PL 25 CARBIDE PLUNGE CUT 15 25 15 50 85 1 2
2700806 PL 25 CARBIDE PLUNGE CUT 15 35 15 50 95 1 2
2700808 PL 25 CARBIDE PLUNGE CUT 19 25 19 50 85 1 2
2700810 PL 25 CARBIDE PLUNGE CUT 19 35 19 50 95 1 2
2700814 PL 25 CARBIDE PLUNGE CUT 19 43 19 50 108 1 2
2700812 PL 25 CARBIDE PLUNGE CUT 19 52 19 50 117 1 2
2701502 PL 25 PCD PLUNGE CUT 10 25 12 40 75 1 2
2701504 PL 25 PCD PLUNGE CUT 12 25 12 40 75 1 2
2701506 PL 25 PCD PLUNGE CUT 12 25 16 50 85 1 2
2701508 PL 25 PCD PLUNGE CUT 12 25 20 50 85 1 2
2701510 PL 25 PCD PLUNGE CUT 12 25 25 55 90 1 2
2701512 PL 25 PCD PLUNGE CUT 12 35 12 40 85 1 2
2701514 PL 25 PCD PLUNGE CUT 14 25 16 50 85 1 2
2701516 PL 25 PCD PLUNGE CUT 16 25 16 50 85 1 2
2701518 PL 25 PCD PLUNGE CUT 16 25 20 50 85 1 2
2701520 PL 25 PCD PLUNGE CUT 16 35 16 50 95 1 2
2701522 PL 25 PCD PLUNGE CUT 16 35 20 50 95 1 2
2701524 PL 25 PCD PLUNGE CUT 16 43 16 50 105 1 2
2701526 PL 25 PCD PLUNGE CUT 16 43 20 50 105 1 2
2701528 PL 25 PCD PLUNGE CUT 18 25 16 50 85 1 2
2701530 PL 25 PCD PLUNGE CUT 18 25 20 50 85 1 2
2701532 PL 25 PCD PLUNGE CUT 18 25 25 55 90 1 2
2701534 PL 25 PCD PLUNGE CUT 18 35 16 50 95 1 2
2701536 PL 25 PCD PLUNGE CUT 18 35 20 50 95 1 2
2701538 PL 25 PCD PLUNGE CUT 18 35 25 55 100 1 2
2701540 PL 25 PCD PLUNGE CUT 18 43 16 50 105 1 2
2701542 PL 25 PCD PLUNGE CUT 18 43 20 50 105 1 2
2701544 PL 25 PCD PLUNGE CUT 18 43 25 55 110 1 2
2701546 PL 25 PCD PLUNGE CUT 20 25 20 50 85 1 2
2701548 PL 25 PCD PLUNGE CUT 20 25 25 55 90 1 2
2701550 PL 25 PCD PLUNGE CUT 20 35 20 50 95 1 2
2701552 PL 25 PCD PLUNGE CUT 20 35 25 55 100 1 2
2701554 PL 25 PCD PLUNGE CUT 20 43 20 50 105 1 2
2701556 PL 25 PCD PLUNGE CUT 20 43 25 55 110 1 2
2701558 PL 25 PCD PLUNGE CUT 20 52 20 50 112 1 2
2701560 PL 25 PCD PLUNGE CUT 20 52 25 55 117 1 2
2701562 PL 25 PCD PLUNGE CUT 20 65 20 50 125 1 2
2701564 PL 25 PCD PLUNGE CUT 20 65 25 55 130 1 2
2701566 PL 25 PCD PLUNGE CUT 25 85 20 50 145 1 2
2701568 PL 25 PCD PLUNGE CUT 25 85 25 55 150 1 2
2800012 PL 40 CARBIDE PLUNGE CUT 16 25 16 50 85 1 4
2800016 PL 40 CARBIDE PLUNGE CUT 16 35 16 50 95 1 4
2800024 PL 40 CARBIDE PLUNGE CUT 18 25 16 50 85 1 4
2800028 PL 40 CARBIDE PLUNGE CUT 18 25 20 50 85 1 4
2800032 PL 40 CARBIDE PLUNGE CUT 18 25 25 55 90 1 4
2800040 PL 40 CARBIDE PLUNGE CUT 18 35 20 50 95 1 4
2800044 PL 40 CARBIDE PLUNGE CUT 18 35 25 55 100 1 4
2800052 PL 40 CARBIDE PLUNGE CUT 18 43 20 50 105 1 4
2800056 PL 40 CARBIDE PLUNGE CUT 18 43 25 55 110 1 4
2800064 PL 40 CARBIDE PLUNGE CUT 20 25 20 50 85 1 4
2800068 PL 40 CARBIDE PLUNGE CUT 20 25 25 55 90 1 4
2800076 PL 40 CARBIDE PLUNGE CUT 20 35 20 50 95 1 4
2800080 PL 40 CARBIDE PLUNGE CUT 20 35 25 55 100 1 4
2800088 PL 40 CARBIDE PLUNGE CUT 20 43 20 50 105 1 4
2800092 PL 40 CARBIDE PLUNGE CUT 20 43 25 55 110 1 4
2800100 PL 40 CARBIDE PLUNGE CUT 20 52 20 50 112 1 4
2800104 PL 40 CARBIDE PLUNGE CUT 20 52 25 55 117 1 4
2800108 PL 40 CARBIDE PLUNGE CUT 25 65 20 50 125 1 4
2800112 PL 40 CARBIDE PLUNGE CUT 25 65 25 55 130 1 4
2800116 PL 40 CARBIDE PLUNGE CUT 25 85 20 50 145 1 4
2800120 PL 40 CARBIDE PLUNGE CUT 25 85 25 55 150 1 4
2801012 PL 40 PCD PLUNGE CUT 16 25 16 50 85 1 4
2801016 PL 40 PCD PLUNGE CUT 16 35 16 50 95 1 4
2801024 PL 40 PCD PLUNGE CUT 18 25 16 50 85 1 4
2801028 PL 40 PCD PLUNGE CUT 18 25 20 50 85 1 4
2801032 PL 40 PCD PLUNGE CUT 18 25 25 55 90 1 4
2801040 PL 40 PCD PLUNGE CUT 18 35 20 50 95 1 4
2801044 PL 40 PCD PLUNGE CUT 18 35 25 55 100 1 4
2801052 PL 40 PCD PLUNGE CUT 18 43 20 50 105 1 4
2801056 PL 40 PCD PLUNGE CUT 18 43 25 55 110 1 4
2801064 PL 40 PCD PLUNGE CUT 20 25 20 50 85 1 4
2801068 PL 40 PCD PLUNGE CUT 20 25 25 55 90 1 4
2801076 PL 40 PCD PLUNGE CUT 20 35 20 50 95 1 4
2801080 PL 40 PCD PLUNGE CUT 20 35 25 55 100 1 4
2801088 PL 40 PCD PLUNGE CUT 20 43 20 50 105 1 4
2801092 PL 40 PCD PLUNGE CUT 20 43 25 55 110 1 4
2801100 PL 40 PCD PLUNGE CUT 20 52 20 50 112 1 4
2801104 PL 40 PCD PLUNGE CUT 20 52 25 55 117 1 4
2801108 PL 40 PCD PLUNGE CUT 25 65 20 50 125 1 4
2801112 PL 40 PCD PLUNGE CUT 25 65 25 55 130 1 4
2801116 PL 40 PCD PLUNGE CUT 25 85 20 50 145 1 4
2801120 PL 40 PCD PLUNGE CUT 25 85 25 55 150 1 4
2500020 TRAKTOR 50 23 25 55 80 3 4
2500022 TRAKTOR 50 23 25 55 80 4 4
2500024 TRAKTOR 50 28 25 55 85 3 4
2500026 TRAKTOR 50 28 25 55 85 4 4
2500028 TRAKTOR 50 38 25 55 95 3 4
2500030 TRAKTOR 50 38 25 55 95 4 4
2500040 TRAKTOR 60 23 25 55 80 3 4
2500042 TRAKTOR 60 23 25 55 80 4 4
2500032 TRAKTOR 60 28 25 55 85 3 4
2500034 TRAKTOR 60 28 25 55 85 4 4
2500036 TRAKTOR 60 38 25 55 95 3 4
2500038 TRAKTOR 60 38 25 55 95 4 4
3800012 XP 2 20 24 20 50 85 2 4
3800020 XP 2 20 24 25 55 90 2 4
3800028 XP 2 20 28 20 50 85 2 4
3800036 XP 2 20 28 25 55 90 2 4
3800044 XP 2 20 36 20 50 95 2 4
3800052 XP 2 20 36 25 55 100 2 4
3800060 XP 2 20 48 20 50 105 2 4
3800068 XP 2 20 48 25 55 110 2 4
3800076 XP 2 25 24 25 55 90 2 4
3800084 XP 2 25 28 20 50 85 2 4
3800092 XP 2 25 28 25 55 90 2 4
3800100 XP 2 25 36 20 50 95 2 4
3800108 XP 2 25 36 25 55 100 2 4
3800116 XP 2 25 48 20 50 105 2 4
3800124 XP 2 25 48 25 55 110 2 4
3800132 XP 2 25 55 20 50 115 2 4
3800140 XP 2 25 55 25 55 120 2 4
3800148 XP 2 25 68 20 50 128 2 4
3800156 XP 2 25 68 25 55 133 2 4
3800164 XP 2 25 86 20 50 145 2 4
3800172 XP 2 25 86 25 55 150 2 4
3500104 HP 2 CARBIDE PLUNGE CUT 16 23 20 50 85 2 2
3500112 HP 2 CARBIDE PLUNGE CUT 18 27 20 50 85 2 2
3500120 HP 2 CARBIDE PLUNGE CUT 18 27 25 55 90 2 2
3500128 HP 2 CARBIDE PLUNGE CUT 18 36 20 50 95 2 2
3500136 HP 2 CARBIDE PLUNGE CUT 18 36 25 55 100 2 2
3500144 HP 2 CARBIDE PLUNGE CUT 20 27 20 50 85 2 2
3500152 HP 2 CARBIDE PLUNGE CUT 20 27 25 55 90 2 2
3500160 HP 2 CARBIDE PLUNGE CUT 20 36 20 50 95 2 2
3500168 HP 2 CARBIDE PLUNGE CUT 20 36 25 55 100 2 2
3500176 HP 2 CARBIDE PLUNGE CUT 20 46 20 50 105 2 2
3500184 HP 2 CARBIDE PLUNGE CUT 20 46 25 55 110 2 2
3500216 HP 2 CARBIDE PLUNGE CUT 20 57 20 50 117 2 2
3500224 HP 2 CARBIDE PLUNGE CUT 20 57 25 55 122 2 2
3500192 HP 2 CARBIDE PLUNGE CUT 25 67 20 50 126 2 2
3500200 HP 2 CARBIDE PLUNGE CUT 25 67 25 55 133 2 2
3500208 HP 2 CARBIDE PLUNGE CUT 25 86 25 55 150 2 2
3501104 HP 2 PCD PLUNGE CUT 16 23 20 50 85 2 2
3501112 HP 2 PCD PLUNGE CUT 18 27 20 50 85 2 2
3501120 HP 2 PCD PLUNGE CUT 18 27 25 55 90 2 2
3501128 HP 2 PCD PLUNGE CUT 18 36 20 50 95 2 2
3501136 HP 2 PCD PLUNGE CUT 18 36 25 55 100 2 2
3501144 HP 2 PCD PLUNGE CUT 20 27 20 50 85 2 2
3501152 HP 2 PCD PLUNGE CUT 20 27 25 55 90 2 2
3501160 HP 2 PCD PLUNGE CUT 20 36 20 50 95 2 2
3501168 HP 2 PCD PLUNGE CUT 20 36 25 55 100 2 2
3501176 HP 2 PCD PLUNGE CUT 20 46 20 50 105 2 2
3501184 HP 2 PCD PLUNGE CUT 20 46 25 55 110 2 2
3501216 HP 2 PCD PLUNGE CUT 20 57 20 50 117 2 2
3501224 HP 2 PCD PLUNGE CUT 20 57 25 55 122 2 2
3501192 HP 2 PCD PLUNGE CUT 25 67 20 50 126 2 2
3501200 HP 2 PCD PLUNGE CUT 25 67 25 55 133 2 2
3501208 HP 2 PCD PLUNGE CUT 25 86 25 55 150 2 2
3500500 HP 4 CARBIDE PLUNGE CUT 20 27 20 50 85 2 4
3500508 HP 4 CARBIDE PLUNGE CUT 20 27 25 55 90 2 4
3500516 HP 4 CARBIDE PLUNGE CUT 20 36 20 50 95 2 4
3500524 HP 4 CARBIDE PLUNGE CUT 20 36 25 55 100 2 4
3500532 HP 4 CARBIDE PLUNGE CUT 25 46 20 50 105 2 4
3500540 HP 4 CARBIDE PLUNGE CUT 25 46 25 55 110 2 4
3500548 HP 4 CARBIDE PLUNGE CUT 25 67 25 55 133 2 4
3500556 HP 4 CARBIDE PLUNGE CUT 25 86 25 55 150 2 4
3501500 HP 4 PCD PLUNGE CUT 20 27 20 50 85 2 4
3501508 HP 4 PCD PLUNGE CUT 20 27 25 55 90 2 4
3501516 HP 4 PCD PLUNGE CUT 20 36 20 50 95 2 4
3501524 HP 4 PCD PLUNGE CUT 20 36 25 55 100 2 4
3501532 HP 4 PCD PLUNGE CUT 25 46 20 50 105 2 4
3501540 HP 4 PCD PLUNGE CUT 25 46 25 55 110 2 4
3501548 HP 4 PCD PLUNGE CUT 25 67 25 55 133 2 4
3501556 HP 4 PCD PLUNGE CUT 25 86 25 55 150 2 4
2900200 TOP 2 18 22 20 50 85 3 4
2900202 TOP 2 20 28 20 50 85 3 4
2900204 TOP 2 20 38 20 50 95 3 4
2900206 TOP 2 20 45 20 50 105 3 4
2900208 TOP 2 20 28 25 55 95 3 4
2900210 TOP 2 20 38 25 55 100 3 4
2900212 TOP 2 25 28 25 55 90 3 4
2900214 TOP 2 25 38 25 55 105 3 4
2900216 TOP 2 25 45 25 55 110 3 4
2900218 TOP 2 25 55 25 55 123 3 4
2900220 TOP 2 25 64 25 55 130 3 4
2900222 TOP 2 25 85 25 55 150 3 4
3400012 EVO 1 20 28 20 50 88 2 3
3400020 EVO 1 25 28 25 55 93 2 3
3400028 EVO 1 20 45 20 50 105 2 3
3400034 EVO 1 25 45 25 55 110 2 3
3400042 EVO 1 25 55 25 55 120 2 3
3400050 EVO 1 25 67 25 55 132 2 3
3420012 PULSE 0 0 0 0
3420020 PULSE 0 0 0 0
3420028 PULSE 0 0 0 0
3420034 PULSE 0 0 0 0
3420042 PULSE 0 0 0 0
3420050 PULSE 0 0 0 0
3602202 NESTING 10 22 12 40 75 2 3
3602204 NESTING 12 22 12 40 75 3 3
3602206 NESTING 12 27 12 40 75 3 3
3602208 NESTING 12 33 12 40 85 3 3
3602210 NESTING 14 22 16 50 85 3 3
3602212 NESTING 14 27 16 50 85 3 3
3602214 NESTING 14 33 16 50 95 3 3
2902200 TOP HD 8 22 12 50 85 2 2
2902202 TOP HD 10 23 12 50 85 2 3
2902204 TOP HD 12 27 12 50 85 2 3
2902206 TOP HD 12 38 12 50 100 2 3
2902208 TOP HD 14 45 16 50 100 2 3
2902210 TOP HD 16 55 16 50 100 3 3
2902212 TOP HD 20 67 20 50 125 3 4
2902214 TOP HD 22 75 20 50 125 3 4
2902216 TOP HD 25 105 25 55 170 3 4
3600020 TOP R 18 22 20 50 85 3 4
3600022 TOP R 20 28 20 50 85 3 4
3600024 TOP R 20 38 20 50 95 3 4
3600026 TOP R 20 45 20 50 105 3 4
3600028 TOP R 20 28 25 55 90 3 4
3600030 TOP R 20 38 25 55 100 3 4
3600032 TOP R 25 28 25 55 90 3 4
3600034 TOP R 25 38 25 55 105 3 4
3600036 TOP R 25 45 25 55 110 3 4
3600038 TOP R 25 55 25 55 123 3 4
3600040 TOP R 25 62 25 55 130 3 4
3600042 TOP R 25 85 25 55 150 3 4
1900020 TOP DR BASIC 25 22 25 55 120 3 4
1900022 TOP DR BASIC 25 26 25 55 125 3 4
1900024 TOP DR BASIC 25 30 25 55 135 3 4
1900026 TOP DR BASIC 25 34 25 55 145 3 4
1901020 TOP DR PLUS 25 22 25 55 120 3 4
1901022 TOP DR PLUS 25 26 25 55 125 3 4
1901024 TOP DR PLUS 25 30 25 55 135 3 4
1901026 TOP DR PLUS 25 34 25 55 145 3 4
3300100 SMART CARBIDE BODY 5 8 10 40 55 1 3
3300108 SMART CARBIDE BODY 5 8 12 40 55 1 3
3300116 SMART CARBIDE BODY 5 8 10 40 55 1 3
3300124 SMART CARBIDE BODY 5 8 12 40 55 1 3
3300132 SMART CARBIDE BODY 6 12 10 40 70 1 3
3300140 SMART CARBIDE BODY 6 12 12 40 70 1 3
3300148 SMART CARBIDE BODY 6 12 10 40 70 1 3
3300156 SMART CARBIDE BODY 6 12 12 40 70 1 3
3300164 SMART CARBIDE BODY 6 12 10 40 70 1 3
3300172 SMART CARBIDE BODY 6 12 12 40 70 1 3
3300180 SMART CARBIDE BODY 6 12 10 40 70 1 3
3300188 SMART CARBIDE BODY 6 12 12 40 70 1 3
3300196 SMART CARBIDE BODY 7 12 10 40 70 1 3
3300204 SMART CARBIDE BODY 7 12 12 40 70 1 3
3300212 SMART CARBIDE BODY 7 12 10 40 70 1 3
3300220 SMART CARBIDE BODY 7 12 12 40 70 1 3
3300228 SMART CARBIDE BODY 7 12 10 40 70 1 3
3300236 SMART CARBIDE BODY 7 12 12 40 70 1 3
3300244 SMART CARBIDE BODY 7 12 10 40 70 1 3
3300252 SMART CARBIDE BODY 7 12 12 40 70 1 3
3300260 SMART CARBIDE BODY 8 15 10 40 70 2 3
3300268 SMART CARBIDE BODY 8 15 12 40 70 2 3
3300276 SMART CARBIDE BODY 8 15 10 40 70 2 3
3300284 SMART CARBIDE BODY 8 15 12 40 70 2 3
3300292 SMART CARBIDE BODY 9 15 10 40 70 2 3
3300300 SMART CARBIDE BODY 9 15 12 40 70 2 3
3300308 SMART CARBIDE BODY 9 15 10 40 70 2 3
3300316 SMART CARBIDE BODY 9 15 12 40 70 2 3
3300324 SMART CARBIDE BODY 10 15 10 40 70 2 3
3300332 SMART CARBIDE BODY 10 15 12 40 70 2 3
3300340 SMART CARBIDE BODY 10 22 10 40 70 2 3
3300348 SMART CARBIDE BODY 10 22 12 40 70 2 3
3300356 SMART CARBIDE BODY 10 15 10 40 70 2 3
3300364 SMART CARBIDE BODY 10 15 12 40 70 2 3
3300372 SMART CARBIDE BODY 12 25 12 40 70 2 3
3300380 SMART STEEL BODY 16 25 16 50 85 2 3
3300388 SMART STEEL BODY 16 25 20 50 85 2 3
3300396 SMART STEEL BODY 16 35 16 50 95 2 3
3300404 SMART STEEL BODY 16 35 20 50 95 2 3
3300412 SMART STEEL BODY 20 25 20 50 95 2 3
3300420 SMART STEEL BODY 20 35 20 50 95 2 3
3300428 SMART STEEL BODY 20 25 25 50 95 2 3
3300436 SMART STEEL BODY 20 35 25 50 95 2 3
EVO 1

Table
3400012 20 28 20 50 88 2 3
3400020 25 28 25 55 93 2 3
3400028 20 45 20 50 105 2 3
3400034 25 45 25 55 110 2 3
3400042 25 55 25 55 120 2 3
3400050 25 67 25 55 132 2 3
HP 2 CARBIDE PLUNGE CUT

Table
3500104 16 23 20 50 85 2 2
3500112 18 27 20 50 85 2 2
3500120 18 27 25 55 90 2 2
3500128 18 36 20 50 95 2 2
3500136 18 36 25 55 100 2 2
3500144 20 27 20 50 85 2 2
3500152 20 27 25 55 90 2 2
3500160 20 36 20 50 95 2 2
3500168 20 36 25 55 100 2 2
3500176 20 46 20 50 105 2 2
3500184 20 46 25 55 110 2 2
3500192 25 67 20 50 126 2 2
3500200 25 67 25 55 133 2 2
3500208 25 86 25 55 150 2 2
3500216 20 57 20 50 117 2 2
3500224 20 57 25 55 122 2 2
HP 2 PCD PLUNGE CUT

Table
3501104 16 23 20 50 85 2 2
3501112 18 27 20 50 85 2 2
3501120 18 27 25 55 90 2 2
3501128 18 36 20 50 95 2 2
3501136 18 36 25 55 100 2 2
3501144 20 27 20 50 85 2 2
3501152 20 27 25 55 90 2 2
3501160 20 36 20 50 95 2 2
3501168 20 36 25 55 100 2 2
3501176 20 46 20 50 105 2 2
3501184 20 46 25 55 110 2 2
3501192 25 67 20 50 126 2 2
3501200 25 67 25 55 133 2 2
3501208 25 86 25 55 150 2 2
3501216 20 57 20 50 117 2 2
3501224 20 57 25 55 122 2 2
HP 4 CARBIDE PLUNGE CUT

Table
3500500 20 27 20 50 85 2 4
3500508 20 27 25 55 90 2 4
3500516 20 36 20 50 95 2 4
3500524 20 36 25 55 100 2 4
3500532 25 46 20 50 105 2 4
3500540 25 46 25 55 110 2 4
3500548 25 67 25 55 133 2 4
3500556 25 86 25 55 150 2 4
HP 4 PCD PLUNGE CUT

Table
3501500 20 27 20 50 85 2 4
3501508 20 27 25 55 90 2 4
3501516 20 36 20 50 95 2 4
3501524 20 36 25 55 100 2 4
3501532 25 46 20 50 105 2 4
3501540 25 46 25 55 110 2 4
3501548 25 67 25 55 133 2 4
3501556 25 86 25 55 150 2 4
NESTING

Table
3602202 10 22 12 40 75 2 3
3602204 12 22 12 40 75 3 3
3602206 12 27 12 40 75 3 3
3602208 12 33 12 40 85 3 3
3602210 14 22 16 50 85 3 3
3602212 14 27 16 50 85 3 3
3602214 14 33 16 50 95 3 3
PL 25 CARBIDE PLUNGE CUT

Table
2700500 8 22 12 40 72 1 2
2700502 10 25 12 40 75 1 2
2700504 12 25 12 40 75 1 2
2700506 12 25 16 50 85 1 2
2700508 12 25 20 50 85 1 2
2700510 12 25 25 55 90 1 2
2700512 12 35 12 40 85 1 2
2700514 14 25 16 50 85 1 2
2700516 16 25 16 50 85 1 2
2700518 16 25 20 50 85 1 2
2700520 16 35 16 50 95 1 2
2700522 16 35 20 50 95 1 2
2700524 16 43 16 50 105 1 2
2700526 16 43 20 50 105 1 2
2700528 18 25 16 50 85 1 2
2700530 18 25 20 50 85 1 2
2700532 18 25 25 55 90 1 2
2700534 18 35 16 50 95 1 2
2700536 18 35 20 50 95 1 2
2700538 18 35 25 55 100 1 2
2700540 18 43 16 50 105 1 2
2700542 18 43 20 50 105 1 2
2700544 18 43 25 55 110 1 2
2700546 20 25 20 50 85 1 2
2700548 20 25 25 55 90 1 2
2700550 20 35 20 50 95 1 2
2700552 20 35 25 55 100 1 2
2700554 20 43 20 50 105 1 2
2700556 20 43 25 55 110 1 2
2700558 20 52 20 50 112 1 2
2700560 20 52 25 55 117 1 2
2700562 20 65 20 50 125 1 2
2700564 20 65 25 55 130 1 2
2700566 25 85 20 50 145 1 2
2700568 25 85 25 55 150 1 2
2700800 12 25 12 40 75 1 2
2700802 12 35 12 40 85 1 2
2700804 15 25 15 50 85 1 2
2700806 15 35 15 50 95 1 2
2700808 19 25 19 50 85 1 2
2700810 19 35 19 50 95 1 2
2700812 19 52 19 50 117 1 2
2700814 19 43 19 50 108 1 2
PL 25 PCD PLUNGE CUT

Table
2701502 10 25 12 40 75 1 2
2701504 12 25 12 40 75 1 2
2701506 12 25 16 50 85 1 2
2701508 12 25 20 50 85 1 2
2701510 12 25 25 55 90 1 2
2701512 12 35 12 40 85 1 2
2701514 14 25 16 50 85 1 2
2701516 16 25 16 50 85 1 2
2701518 16 25 20 50 85 1 2
2701520 16 35 16 50 95 1 2
2701522 16 35 20 50 95 1 2
2701524 16 43 16 50 105 1 2
2701526 16 43 20 50 105 1 2
2701528 18 25 16 50 85 1 2
2701530 18 25 20 50 85 1 2
2701532 18 25 25 55 90 1 2
2701534 18 35 16 50 95 1 2
2701536 18 35 20 50 95 1 2
2701538 18 35 25 55 100 1 2
2701540 18 43 16 50 105 1 2
2701542 18 43 20 50 105 1 2
2701544 18 43 25 55 110 1 2
2701546 20 25 20 50 85 1 2
2701548 20 25 25 55 90 1 2
2701550 20 35 20 50 95 1 2
2701552 20 35 25 55 100 1 2
2701554 20 43 20 50 105 1 2
2701556 20 43 25 55 110 1 2
2701558 20 52 20 50 112 1 2
2701560 20 52 25 55 117 1 2
2701562 20 65 20 50 125 1 2
2701564 20 65 25 55 130 1 2
2701566 25 85 20 50 145 1 2
2701568 25 85 25 55 150 1 2
PL 40 CARBIDE PLUNGE CUT

Table
2800012 16 25 16 50 85 1 4
2800016 16 35 16 50 95 1 4
2800024 18 25 16 50 85 1 4
2800028 18 25 20 50 85 1 4
2800032 18 25 25 55 90 1 4
2800040 18 35 20 50 95 1 4
2800044 18 35 25 55 100 1 4
2800052 18 43 20 50 105 1 4
2800056 18 43 25 55 110 1 4
2800064 20 25 20 50 85 1 4
2800068 20 25 25 55 90 1 4
2800076 20 35 20 50 95 1 4
2800080 20 35 25 55 100 1 4
2800088 20 43 20 50 105 1 4
2800092 20 43 25 55 110 1 4
2800100 20 52 20 50 112 1 4
2800104 20 52 25 55 117 1 4
2800108 25 65 20 50 125 1 4
2800112 25 65 25 55 130 1 4
2800116 25 85 20 50 145 1 4
2800120 25 85 25 55 150 1 4
PL 40 PCD PLUNGE CUT

Table
2801012 16 25 16 50 85 1 4
2801016 16 35 16 50 95 1 4
2801024 18 25 16 50 85 1 4
2801028 18 25 20 50 85 1 4
2801032 18 25 25 55 90 1 4
2801040 18 35 20 50 95 1 4
2801044 18 35 25 55 100 1 4
2801052 18 43 20 50 105 1 4
2801056 18 43 25 55 110 1 4
2801064 20 25 20 50 85 1 4
2801068 20 25 25 55 90 1 4
2801076 20 35 20 50 95 1 4
2801080 20 35 25 55 100 1 4
2801088 20 43 20 50 105 1 4
2801092 20 43 25 55 110 1 4
2801100 20 52 20 50 112 1 4
2801104 20 52 25 55 117 1 4
2801108 25 65 20 50 125 1 4
2801112 25 65 25 55 130 1 4
2801116 25 85 20 50 145 1 4
2801120 25 85 25 55 150 1 4
PULSE

Table
3420012 0 0 0 0
3420020 0 0 0 0
3420028 0 0 0 0
3420034 0 0 0 0
3420042 0 0 0 0
3420050 0 0 0 0
SMART CARBIDE BODY

Table
3300100 5 8 10 40 55 1 3
3300108 5 8 12 40 55 1 3
3300116 5 8 10 40 55 1 3
3300124 5 8 12 40 55 1 3
3300132 6 12 10 40 70 1 3
3300140 6 12 12 40 70 1 3
3300148 6 12 10 40 70 1 3
3300156 6 12 12 40 70 1 3
3300164 6 12 10 40 70 1 3
3300172 6 12 12 40 70 1 3
3300180 6 12 10 40 70 1 3
3300188 6 12 12 40 70 1 3
3300196 7 12 10 40 70 1 3
3300204 7 12 12 40 70 1 3
3300212 7 12 10 40 70 1 3
3300220 7 12 12 40 70 1 3
3300228 7 12 10 40 70 1 3
3300236 7 12 12 40 70 1 3
3300244 7 12 10 40 70 1 3
3300252 7 12 12 40 70 1 3
3300260 8 15 10 40 70 2 3
3300268 8 15 12 40 70 2 3
3300276 8 15 10 40 70 2 3
3300284 8 15 12 40 70 2 3
3300292 9 15 10 40 70 2 3
3300300 9 15 12 40 70 2 3
3300308 9 15 10 40 70 2 3
3300316 9 15 12 40 70 2 3
3300324 10 15 10 40 70 2 3
3300332 10 15 12 40 70 2 3
3300340 10 22 10 40 70 2 3
3300348 10 22 12 40 70 2 3
3300356 10 15 10 40 70 2 3
3300364 10 15 12 40 70 2 3
3300372 12 25 12 40 70 2 3
SMART STEEL BODY

Table
3300380 16 25 16 50 85 2 3
3300388 16 25 20 50 85 2 3
3300396 16 35 16 50 95 2 3
3300404 16 35 20 50 95 2 3
3300412 20 25 20 50 95 2 3
3300420 20 35 20 50 95 2 3
3300428 20 25 25 50 95 2 3
3300436 20 35 25 50 95 2 3
TOP 2

Table
2900200 18 22 20 50 85 3 4
2900202 20 28 20 50 85 3 4
2900204 20 38 20 50 95 3 4
2900206 20 45 20 50 105 3 4
2900208 20 28 25 55 95 3 4
2900210 20 38 25 55 100 3 4
2900212 25 28 25 55 90 3 4
2900214 25 38 25 55 105 3 4
2900216 25 45 25 55 110 3 4
2900218 25 55 25 55 123 3 4
2900220 25 64 25 55 130 3 4
2900222 25 85 25 55 150 3 4
TOP DR BASIC

Table
1900020 25 22 25 55 120 3 4
1900022 25 26 25 55 125 3 4
1900024 25 30 25 55 135 3 4
1900026 25 34 25 55 145 3 4
TOP DR PLUS

Table
1901020 25 22 25 55 120 3 4
1901022 25 26 25 55 125 3 4
1901024 25 30 25 55 135 3 4
1901026 25 34 25 55 145 3 4
TOP HD

Table
2902200 8 22 12 50 85 2 2
2902202 10 23 12 50 85 2 3
2902204 12 27 12 50 85 2 3
2902206 12 38 12 50 100 2 3
2902208 14 45 16 50 100 2 3
2902210 16 55 16 50 100 3 3
2902212 20 67 20 50 125 3 4
2902214 22 75 20 50 125 3 4
2902216 25 105 25 55 170 3 4
TOP R

Table
3600020 18 22 20 50 85 3 4
3600022 20 28 20 50 85 3 4
3600024 20 38 20 50 95 3 4
3600026 20 45 20 50 105 3 4
3600028 20 28 25 55 90 3 4
3600030 20 38 25 55 100 3 4
3600032 25 28 25 55 90 3 4
3600034 25 38 25 55 105 3 4
3600036 25 45 25 55 110 3 4
3600038 25 55 25 55 123 3 4
3600040 25 62 25 55 130 3 4
3600042 25 85 25 55 150 3 4
TRAKTOR

Table
2500020 50 23 25 55 80 3 4
2500022 50 23 25 55 80 4 4
2500024 50 28 25 55 85 3 4
2500026 50 28 25 55 85 4 4
2500028 50 38 25 55 95 3 4
2500030 50 38 25 55 95 4 4
2500032 60 28 25 55 85 3 4
2500034 60 28 25 55 85 4 4
2500036 60 38 25 55 95 3 4
2500038 60 38 25 55 95 4 4
2500040 60 23 25 55 80 3 4
2500042 60 23 25 55 80 4 4
XP 2

Table
3800012 20 24 20 50 85 2 4
3800020 20 24 25 55 90 2 4
3800028 20 28 20 50 85 2 4
3800036 20 28 25 55 90 2 4
3800044 20 36 20 50 95 2 4
3800052 20 36 25 55 100 2 4
3800060 20 48 20 50 105 2 4
3800068 20 48 25 55 110 2 4
3800076 25 24 25 55 90 2 4
3800084 25 28 20 50 85 2 4
3800092 25 28 25 55 90 2 4
3800100 25 36 20 50 95 2 4
3800108 25 36 25 55 100 2 4
3800116 25 48 20 50 105 2 4
3800124 25 48 25 55 110 2 4
3800132 25 55 20 50 115 2 4
3800140 25 55 25 55 120 2 4
3800148 25 68 20 50 128 2 4
3800156 25 68 25 55 133 2 4
3800164 25 86 20 50 145 2 4
3800172 25 86 25 55 150 2 4


Router Bits for CNC PL25 high-quality materials Schiavon


Schiavon Tools are Manufactured with high-quality materials and cutting edge-technologies, in order to guarantee steady and long-time performances.
Schiavon purchases steel and PCD from suppliers of great value and reliability, among them STEELTEC and ELEMENT SIX.
Machines, production and checking devices are the newest available in the market.
Schiavon offers a wide range of products, satisfying most different needs and requirements for any leading Company.
We follow a process based on the selection of quality materials and on the usage of tools manufactured With modern tool machines.

PL25

Schiavon uses cookies to offer you a better online experience.
OK Cookie Policy
