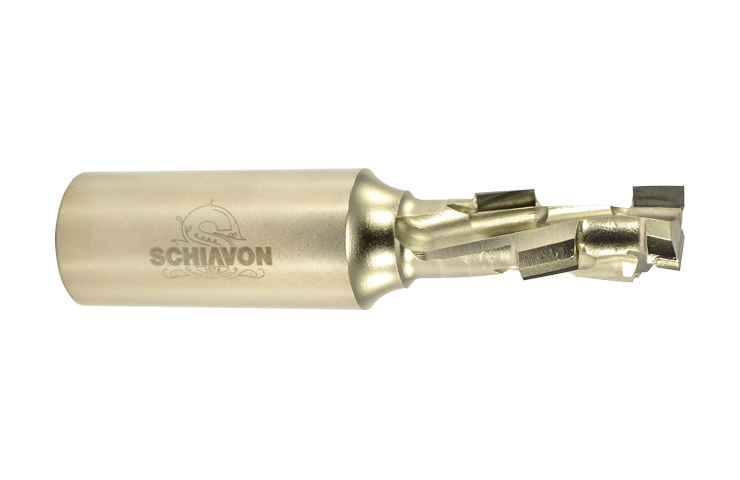

Router Bits for CNC PL40 high-quality materials

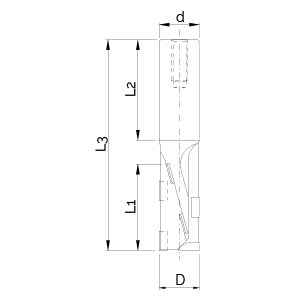

Drawings and Specs Chart

PL 40


2700500	PL 25 CARBIDE PLUNGE CUT	8	22	12	40	72	1	2
2700502	PL 25 CARBIDE PLUNGE CUT	10	25	12	40	75	1	2
2700504	PL 25 CARBIDE PLUNGE CUT	12	25	12	40	75	1	2
2700506	PL 25 CARBIDE PLUNGE CUT	12	25	16	50	85	1	2
2700508	PL 25 CARBIDE PLUNGE CUT	12	25	20	50	85	1	2
2700510	PL 25 CARBIDE PLUNGE CUT	12	25	25	55	90	1	2
2700512	PL 25 CARBIDE PLUNGE CUT	12	35	12	40	85	1	2
2700514	PL 25 CARBIDE PLUNGE CUT	14	25	16	50	85	1	2
2700516	PL 25 CARBIDE PLUNGE CUT	16	25	16	50	85	1	2
2700518	PL 25 CARBIDE PLUNGE CUT	16	25	20	50	85	1	2
2700520	PL 25 CARBIDE PLUNGE CUT	16	35	16	50	95	1	2
2700522	PL 25 CARBIDE PLUNGE CUT	16	35	20	50	95	1	2
2700524	PL 25 CARBIDE PLUNGE CUT	16	43	16	50	105	1	2
2700526	PL 25 CARBIDE PLUNGE CUT	16	43	20	50	105	1	2
2700528	PL 25 CARBIDE PLUNGE CUT	18	25	16	50	85	1	2
2700530	PL 25 CARBIDE PLUNGE CUT	18	25	20	50	85	1	2
2700532	PL 25 CARBIDE PLUNGE CUT	18	25	25	55	90	1	2
2700534	PL 25 CARBIDE PLUNGE CUT	18	35	16	50	95	1	2
2700536	PL 25 CARBIDE PLUNGE CUT	18	35	20	50	95	1	2
2700538	PL 25 CARBIDE PLUNGE CUT	18	35	25	55	100	1	2
2700540	PL 25 CARBIDE PLUNGE CUT	18	43	16	50	105	1	2
2700542	PL 25 CARBIDE PLUNGE CUT	18	43	20	50	105	1	2
2700544	PL 25 CARBIDE PLUNGE CUT	18	43	25	55	110	1	2
2700546	PL 25 CARBIDE PLUNGE CUT	20	25	20	50	85	1	2
2700548	PL 25 CARBIDE PLUNGE CUT	20	25	25	55	90	1	2
2700550	PL 25 CARBIDE PLUNGE CUT	20	35	20	50	95	1	2
2700552	PL 25 CARBIDE PLUNGE CUT	20	35	25	55	100	1	2
2700554	PL 25 CARBIDE PLUNGE CUT	20	43	20	50	105	1	2
2700556	PL 25 CARBIDE PLUNGE CUT	20	43	25	55	110	1	2
2700558	PL 25 CARBIDE PLUNGE CUT	20	52	20	50	112	1	2
2700560	PL 25 CARBIDE PLUNGE CUT	20	52	25	55	117	1	2
2700562	PL 25 CARBIDE PLUNGE CUT	20	65	20	50	125	1	2
2700564	PL 25 CARBIDE PLUNGE CUT	20	65	25	55	130	1	2
2700566	PL 25 CARBIDE PLUNGE CUT	25	85	20	50	145	1	2
2700568	PL 25 CARBIDE PLUNGE CUT	25	85	25	55	150	1	2
2700800	PL 25 CARBIDE PLUNGE CUT	12	25	12	40	75	1	2
2700802	PL 25 CARBIDE PLUNGE CUT	12	35	12	40	85	1	2
2700804	PL 25 CARBIDE PLUNGE CUT	15	25	15	50	85	1	2
2700806	PL 25 CARBIDE PLUNGE CUT	15	35	15	50	95	1	2
2700808	PL 25 CARBIDE PLUNGE CUT	19	25	19	50	85	1	2
2700810	PL 25 CARBIDE PLUNGE CUT	19	35	19	50	95	1	2
2700814	PL 25 CARBIDE PLUNGE CUT	19	43	19	50	108	1	2
2700812	PL 25 CARBIDE PLUNGE CUT	19	52	19	50	117	1	2
2701502	PL 25 PCD PLUNGE CUT	10	25	12	40	75	1	2
2701504	PL 25 PCD PLUNGE CUT	12	25	12	40	75	1	2
2701506	PL 25 PCD PLUNGE CUT	12	25	16	50	85	1	2
2701508	PL 25 PCD PLUNGE CUT	12	25	20	50	85	1	2
2701510	PL 25 PCD PLUNGE CUT	12	25	25	55	90	1	2
2701512	PL 25 PCD PLUNGE CUT	12	35	12	40	85	1	2
2701514	PL 25 PCD PLUNGE CUT	14	25	16	50	85	1	2
2701516	PL 25 PCD PLUNGE CUT	16	25	16	50	85	1	2
2701518	PL 25 PCD PLUNGE CUT	16	25	20	50	85	1	2
2701520	PL 25 PCD PLUNGE CUT	16	35	16	50	95	1	2
2701522	PL 25 PCD PLUNGE CUT	16	35	20	50	95	1	2
2701524	PL 25 PCD PLUNGE CUT	16	43	16	50	105	1	2
2701526	PL 25 PCD PLUNGE CUT	16	43	20	50	105	1	2
2701528	PL 25 PCD PLUNGE CUT	18	25	16	50	85	1	2
2701530	PL 25 PCD PLUNGE CUT	18	25	20	50	85	1	2
2701532	PL 25 PCD PLUNGE CUT	18	25	25	55	90	1	2
2701534	PL 25 PCD PLUNGE CUT	18	35	16	50	95	1	2
2701536	PL 25 PCD PLUNGE CUT	18	35	20	50	95	1	2
2701538	PL 25 PCD PLUNGE CUT	18	35	25	55	100	1	2
2701540	PL 25 PCD PLUNGE CUT	18	43	16	50	105	1	2
2701542	PL 25 PCD PLUNGE CUT	18	43	20	50	105	1	2
2701544	PL 25 PCD PLUNGE CUT	18	43	25	55	110	1	2
2701546	PL 25 PCD PLUNGE CUT	20	25	20	50	85	1	2
2701548	PL 25 PCD PLUNGE CUT	20	25	25	55	90	1	2
2701550	PL 25 PCD PLUNGE CUT	20	35	20	50	95	1	2
2701552	PL 25 PCD PLUNGE CUT	20	35	25	55	100	1	2
2701554	PL 25 PCD PLUNGE CUT	20	43	20	50	105	1	2
2701556	PL 25 PCD PLUNGE CUT	20	43	25	55	110	1	2
2701558	PL 25 PCD PLUNGE CUT	20	52	20	50	112	1	2
2701560	PL 25 PCD PLUNGE CUT	20	52	25	55	117	1	2
2701562	PL 25 PCD PLUNGE CUT	20	65	20	50	125	1	2
2701564	PL 25 PCD PLUNGE CUT	20	65	25	55	130	1	2
2701566	PL 25 PCD PLUNGE CUT	25	85	20	50	145	1	2
2701568	PL 25 PCD PLUNGE CUT	25	85	25	55	150	1	2
2800012	PL 40 CARBIDE PLUNGE CUT	16	25	16	50	85	1	4
2800016	PL 40 CARBIDE PLUNGE CUT	16	35	16	50	95	1	4
2800024	PL 40 CARBIDE PLUNGE CUT	18	25	16	50	85	1	4
2800028	PL 40 CARBIDE PLUNGE CUT	18	25	20	50	85	1	4
2800032	PL 40 CARBIDE PLUNGE CUT	18	25	25	55	90	1	4
2800040	PL 40 CARBIDE PLUNGE CUT	18	35	20	50	95	1	4
2800044	PL 40 CARBIDE PLUNGE CUT	18	35	25	55	100	1	4
2800052	PL 40 CARBIDE PLUNGE CUT	18	43	20	50	105	1	4
2800056	PL 40 CARBIDE PLUNGE CUT	18	43	25	55	110	1	4
2800064	PL 40 CARBIDE PLUNGE CUT	20	25	20	50	85	1	4
2800068	PL 40 CARBIDE PLUNGE CUT	20	25	25	55	90	1	4
2800076	PL 40 CARBIDE PLUNGE CUT	20	35	20	50	95	1	4
2800080	PL 40 CARBIDE PLUNGE CUT	20	35	25	55	100	1	4
2800088	PL 40 CARBIDE PLUNGE CUT	20	43	20	50	105	1	4
2800092	PL 40 CARBIDE PLUNGE CUT	20	43	25	55	110	1	4
2800100	PL 40 CARBIDE PLUNGE CUT	20	52	20	50	112	1	4
2800104	PL 40 CARBIDE PLUNGE CUT	20	52	25	55	117	1	4
2800108	PL 40 CARBIDE PLUNGE CUT	25	65	20	50	125	1	4
2800112	PL 40 CARBIDE PLUNGE CUT	25	65	25	55	130	1	4
2800116	PL 40 CARBIDE PLUNGE CUT	25	85	20	50	145	1	4
2800120	PL 40 CARBIDE PLUNGE CUT	25	85	25	55	150	1	4
2801012	PL 40 PCD PLUNGE CUT	16	25	16	50	85	1	4
2801016	PL 40 PCD PLUNGE CUT	16	35	16	50	95	1	4
2801024	PL 40 PCD PLUNGE CUT	18	25	16	50	85	1	4
2801028	PL 40 PCD PLUNGE CUT	18	25	20	50	85	1	4
2801032	PL 40 PCD PLUNGE CUT	18	25	25	55	90	1	4
2801040	PL 40 PCD PLUNGE CUT	18	35	20	50	95	1	4
2801044	PL 40 PCD PLUNGE CUT	18	35	25	55	100	1	4
2801052	PL 40 PCD PLUNGE CUT	18	43	20	50	105	1	4
2801056	PL 40 PCD PLUNGE CUT	18	43	25	55	110	1	4
2801064	PL 40 PCD PLUNGE CUT	20	25	20	50	85	1	4
2801068	PL 40 PCD PLUNGE CUT	20	25	25	55	90	1	4
2801076	PL 40 PCD PLUNGE CUT	20	35	20	50	95	1	4
2801080	PL 40 PCD PLUNGE CUT	20	35	25	55	100	1	4
2801088	PL 40 PCD PLUNGE CUT	20	43	20	50	105	1	4
2801092	PL 40 PCD PLUNGE CUT	20	43	25	55	110	1	4
2801100	PL 40 PCD PLUNGE CUT	20	52	20	50	112	1	4
2801104	PL 40 PCD PLUNGE CUT	20	52	25	55	117	1	4
2801108	PL 40 PCD PLUNGE CUT	25	65	20	50	125	1	4
2801112	PL 40 PCD PLUNGE CUT	25	65	25	55	130	1	4
2801116	PL 40 PCD PLUNGE CUT	25	85	20	50	145	1	4
2801120	PL 40 PCD PLUNGE CUT	25	85	25	55	150	1	4
2500020	TRAKTOR	50	23	25	55	80	3	4
2500022	TRAKTOR	50	23	25	55	80	4	4
2500024	TRAKTOR	50	28	25	55	85	3	4
2500026	TRAKTOR	50	28	25	55	85	4	4
2500028	TRAKTOR	50	38	25	55	95	3	4
2500030	TRAKTOR	50	38	25	55	95	4	4
2500040	TRAKTOR	60	23	25	55	80	3	4
2500042	TRAKTOR	60	23	25	55	80	4	4
2500032	TRAKTOR	60	28	25	55	85	3	4
2500034	TRAKTOR	60	28	25	55	85	4	4
2500036	TRAKTOR	60	38	25	55	95	3	4
2500038	TRAKTOR	60	38	25	55	95	4	4
3800012	XP 2	20	24	20	50	85	2	4
3800020	XP 2	20	24	25	55	90	2	4
3800028	XP 2	20	28	20	50	85	2	4
3800036	XP 2	20	28	25	55	90	2	4
3800044	XP 2	20	36	20	50	95	2	4
3800052	XP 2	20	36	25	55	100	2	4
3800060	XP 2	20	48	20	50	105	2	4
3800068	XP 2	20	48	25	55	110	2	4
3800076	XP 2	25	24	25	55	90	2	4
3800084	XP 2	25	28	20	50	85	2	4
3800092	XP 2	25	28	25	55	90	2	4
3800100	XP 2	25	36	20	50	95	2	4
3800108	XP 2	25	36	25	55	100	2	4
3800116	XP 2	25	48	20	50	105	2	4
3800124	XP 2	25	48	25	55	110	2	4
3800132	XP 2	25	55	20	50	115	2	4
3800140	XP 2	25	55	25	55	120	2	4
3800148	XP 2	25	68	20	50	128	2	4
3800156	XP 2	25	68	25	55	133	2	4
3800164	XP 2	25	86	20	50	145	2	4
3800172	XP 2	25	86	25	55	150	2	4
3500104	HP 2 CARBIDE PLUNGE CUT	16	23	20	50	85	2	2
3500112	HP 2 CARBIDE PLUNGE CUT	18	27	20	50	85	2	2
3500120	HP 2 CARBIDE PLUNGE CUT	18	27	25	55	90	2	2
3500128	HP 2 CARBIDE PLUNGE CUT	18	36	20	50	95	2	2
3500136	HP 2 CARBIDE PLUNGE CUT	18	36	25	55	100	2	2
3500144	HP 2 CARBIDE PLUNGE CUT	20	27	20	50	85	2	2
3500152	HP 2 CARBIDE PLUNGE CUT	20	27	25	55	90	2	2
3500160	HP 2 CARBIDE PLUNGE CUT	20	36	20	50	95	2	2
3500168	HP 2 CARBIDE PLUNGE CUT	20	36	25	55	100	2	2
3500176	HP 2 CARBIDE PLUNGE CUT	20	46	20	50	105	2	2
3500184	HP 2 CARBIDE PLUNGE CUT	20	46	25	55	110	2	2
3500216	HP 2 CARBIDE PLUNGE CUT	20	57	20	50	117	2	2
3500224	HP 2 CARBIDE PLUNGE CUT	20	57	25	55	122	2	2
3500192	HP 2 CARBIDE PLUNGE CUT	25	67	20	50	126	2	2
3500200	HP 2 CARBIDE PLUNGE CUT	25	67	25	55	133	2	2
3500208	HP 2 CARBIDE PLUNGE CUT	25	86	25	55	150	2	2
3501104	HP 2 PCD PLUNGE CUT	16	23	20	50	85	2	2
3501112	HP 2 PCD PLUNGE CUT	18	27	20	50	85	2	2
3501120	HP 2 PCD PLUNGE CUT	18	27	25	55	90	2	2
3501128	HP 2 PCD PLUNGE CUT	18	36	20	50	95	2	2
3501136	HP 2 PCD PLUNGE CUT	18	36	25	55	100	2	2
3501144	HP 2 PCD PLUNGE CUT	20	27	20	50	85	2	2
3501152	HP 2 PCD PLUNGE CUT	20	27	25	55	90	2	2
3501160	HP 2 PCD PLUNGE CUT	20	36	20	50	95	2	2
3501168	HP 2 PCD PLUNGE CUT	20	36	25	55	100	2	2
3501176	HP 2 PCD PLUNGE CUT	20	46	20	50	105	2	2
3501184	HP 2 PCD PLUNGE CUT	20	46	25	55	110	2	2
3501216	HP 2 PCD PLUNGE CUT	20	57	20	50	117	2	2
3501224	HP 2 PCD PLUNGE CUT	20	57	25	55	122	2	2
3501192	HP 2 PCD PLUNGE CUT	25	67	20	50	126	2	2
3501200	HP 2 PCD PLUNGE CUT	25	67	25	55	133	2	2
3501208	HP 2 PCD PLUNGE CUT	25	86	25	55	150	2	2
3500500	HP 4 CARBIDE PLUNGE CUT	20	27	20	50	85	2	4
3500508	HP 4 CARBIDE PLUNGE CUT	20	27	25	55	90	2	4
3500516	HP 4 CARBIDE PLUNGE CUT	20	36	20	50	95	2	4
3500524	HP 4 CARBIDE PLUNGE CUT	20	36	25	55	100	2	4
3500532	HP 4 CARBIDE PLUNGE CUT	25	46	20	50	105	2	4
3500540	HP 4 CARBIDE PLUNGE CUT	25	46	25	55	110	2	4
3500548	HP 4 CARBIDE PLUNGE CUT	25	67	25	55	133	2	4
3500556	HP 4 CARBIDE PLUNGE CUT	25	86	25	55	150	2	4
3501500	HP 4 PCD PLUNGE CUT	20	27	20	50	85	2	4
3501508	HP 4 PCD PLUNGE CUT	20	27	25	55	90	2	4
3501516	HP 4 PCD PLUNGE CUT	20	36	20	50	95	2	4
3501524	HP 4 PCD PLUNGE CUT	20	36	25	55	100	2	4
3501532	HP 4 PCD PLUNGE CUT	25	46	20	50	105	2	4
3501540	HP 4 PCD PLUNGE CUT	25	46	25	55	110	2	4
3501548	HP 4 PCD PLUNGE CUT	25	67	25	55	133	2	4
3501556	HP 4 PCD PLUNGE CUT	25	86	25	55	150	2	4
2900200	TOP 2	18	22	20	50	85	3	4
2900202	TOP 2	20	28	20	50	85	3	4
2900204	TOP 2	20	38	20	50	95	3	4
2900206	TOP 2	20	45	20	50	105	3	4
2900208	TOP 2	20	28	25	55	95	3	4
2900210	TOP 2	20	38	25	55	100	3	4
2900212	TOP 2	25	28	25	55	90	3	4
2900214	TOP 2	25	38	25	55	105	3	4
2900216	TOP 2	25	45	25	55	110	3	4
2900218	TOP 2	25	55	25	55	123	3	4
2900220	TOP 2	25	64	25	55	130	3	4
2900222	TOP 2	25	85	25	55	150	3	4
3400012	EVO 1	20	28	20	50	88	2	3
3400020	EVO 1	25	28	25	55	93	2	3
3400028	EVO 1	20	45	20	50	105	2	3
3400034	EVO 1	25	45	25	55	110	2	3
3400042	EVO 1	25	55	25	55	120	2	3
3400050	EVO 1	25	67	25	55	132	2	3
3420012	PULSE	0		0			0	0
3420020	PULSE	0		0			0	0
3420028	PULSE	0		0			0	0
3420034	PULSE	0		0			0	0
3420042	PULSE	0		0			0	0
3420050	PULSE	0		0			0	0
3602202	NESTING	10	22	12	40	75	2	3
3602204	NESTING	12	22	12	40	75	3	3
3602206	NESTING	12	27	12	40	75	3	3
3602208	NESTING	12	33	12	40	85	3	3
3602210	NESTING	14	22	16	50	85	3	3
3602212	NESTING	14	27	16	50	85	3	3
3602214	NESTING	14	33	16	50	95	3	3
2902200	TOP HD	8	22	12	50	85	2	2
2902202	TOP HD	10	23	12	50	85	2	3
2902204	TOP HD	12	27	12	50	85	2	3
2902206	TOP HD	12	38	12	50	100	2	3
2902208	TOP HD	14	45	16	50	100	2	3
2902210	TOP HD	16	55	16	50	100	3	3
2902212	TOP HD	20	67	20	50	125	3	4
2902214	TOP HD	22	75	20	50	125	3	4
2902216	TOP HD	25	105	25	55	170	3	4
3600020	TOP R	18	22	20	50	85	3	4
3600022	TOP R	20	28	20	50	85	3	4
3600024	TOP R	20	38	20	50	95	3	4
3600026	TOP R	20	45	20	50	105	3	4
3600028	TOP R	20	28	25	55	90	3	4
3600030	TOP R	20	38	25	55	100	3	4
3600032	TOP R	25	28	25	55	90	3	4
3600034	TOP R	25	38	25	55	105	3	4
3600036	TOP R	25	45	25	55	110	3	4
3600038	TOP R	25	55	25	55	123	3	4
3600040	TOP R	25	62	25	55	130	3	4
3600042	TOP R	25	85	25	55	150	3	4
1900020	TOP DR BASIC	25	22	25	55	120	3	4
1900022	TOP DR BASIC	25	26	25	55	125	3	4
1900024	TOP DR BASIC	25	30	25	55	135	3	4
1900026	TOP DR BASIC	25	34	25	55	145	3	4
1901020	TOP DR PLUS	25	22	25	55	120	3	4
1901022	TOP DR PLUS	25	26	25	55	125	3	4
1901024	TOP DR PLUS	25	30	25	55	135	3	4
1901026	TOP DR PLUS	25	34	25	55	145	3	4
3300100	SMART CARBIDE BODY	5	8	10	40	55	1	3
3300108	SMART CARBIDE BODY	5	8	12	40	55	1	3
3300116	SMART CARBIDE BODY	5	8	10	40	55	1	3
3300124	SMART CARBIDE BODY	5	8	12	40	55	1	3
3300132	SMART CARBIDE BODY	6	12	10	40	70	1	3
3300140	SMART CARBIDE BODY	6	12	12	40	70	1	3
3300148	SMART CARBIDE BODY	6	12	10	40	70	1	3
3300156	SMART CARBIDE BODY	6	12	12	40	70	1	3
3300164	SMART CARBIDE BODY	6	12	10	40	70	1	3
3300172	SMART CARBIDE BODY	6	12	12	40	70	1	3
3300180	SMART CARBIDE BODY	6	12	10	40	70	1	3
3300188	SMART CARBIDE BODY	6	12	12	40	70	1	3
3300196	SMART CARBIDE BODY	7	12	10	40	70	1	3
3300204	SMART CARBIDE BODY	7	12	12	40	70	1	3
3300212	SMART CARBIDE BODY	7	12	10	40	70	1	3
3300220	SMART CARBIDE BODY	7	12	12	40	70	1	3
3300228	SMART CARBIDE BODY	7	12	10	40	70	1	3
3300236	SMART CARBIDE BODY	7	12	12	40	70	1	3
3300244	SMART CARBIDE BODY	7	12	10	40	70	1	3
3300252	SMART CARBIDE BODY	7	12	12	40	70	1	3
3300260	SMART CARBIDE BODY	8	15	10	40	70	2	3
3300268	SMART CARBIDE BODY	8	15	12	40	70	2	3
3300276	SMART CARBIDE BODY	8	15	10	40	70	2	3
3300284	SMART CARBIDE BODY	8	15	12	40	70	2	3
3300292	SMART CARBIDE BODY	9	15	10	40	70	2	3
3300300	SMART CARBIDE BODY	9	15	12	40	70	2	3
3300308	SMART CARBIDE BODY	9	15	10	40	70	2	3
3300316	SMART CARBIDE BODY	9	15	12	40	70	2	3
3300324	SMART CARBIDE BODY	10	15	10	40	70	2	3
3300332	SMART CARBIDE BODY	10	15	12	40	70	2	3
3300340	SMART CARBIDE BODY	10	22	10	40	70	2	3
3300348	SMART CARBIDE BODY	10	22	12	40	70	2	3
3300356	SMART CARBIDE BODY	10	15	10	40	70	2	3
3300364	SMART CARBIDE BODY	10	15	12	40	70	2	3
3300372	SMART CARBIDE BODY	12	25	12	40	70	2	3
3300380	SMART STEEL BODY	16	25	16	50	85	2	3
3300388	SMART STEEL BODY	16	25	20	50	85	2	3
3300396	SMART STEEL BODY	16	35	16	50	95	2	3
3300404	SMART STEEL BODY	16	35	20	50	95	2	3
3300412	SMART STEEL BODY	20	25	20	50	95	2	3
3300420	SMART STEEL BODY	20	35	20	50	95	2	3
3300428	SMART STEEL BODY	20	25	25	50	95	2	3
3300436	SMART STEEL BODY	20	35	25	50	95	2	3

EVO 1

Table


3400012	20	28	20	50	88	2	3
3400020	25	28	25	55	93	2	3
3400028	20	45	20	50	105	2	3
3400034	25	45	25	55	110	2	3
3400042	25	55	25	55	120	2	3
3400050	25	67	25	55	132	2	3

HP 2 CARBIDE PLUNGE CUT

Table


3500104	16	23	20	50	85	2	2
3500112	18	27	20	50	85	2	2
3500120	18	27	25	55	90	2	2
3500128	18	36	20	50	95	2	2
3500136	18	36	25	55	100	2	2
3500144	20	27	20	50	85	2	2
3500152	20	27	25	55	90	2	2
3500160	20	36	20	50	95	2	2
3500168	20	36	25	55	100	2	2
3500176	20	46	20	50	105	2	2
3500184	20	46	25	55	110	2	2
3500192	25	67	20	50	126	2	2
3500200	25	67	25	55	133	2	2
3500208	25	86	25	55	150	2	2
3500216	20	57	20	50	117	2	2
3500224	20	57	25	55	122	2	2

HP 2 PCD PLUNGE CUT

Table


3501104	16	23	20	50	85	2	2
3501112	18	27	20	50	85	2	2
3501120	18	27	25	55	90	2	2
3501128	18	36	20	50	95	2	2
3501136	18	36	25	55	100	2	2
3501144	20	27	20	50	85	2	2
3501152	20	27	25	55	90	2	2
3501160	20	36	20	50	95	2	2
3501168	20	36	25	55	100	2	2
3501176	20	46	20	50	105	2	2
3501184	20	46	25	55	110	2	2
3501192	25	67	20	50	126	2	2
3501200	25	67	25	55	133	2	2
3501208	25	86	25	55	150	2	2
3501216	20	57	20	50	117	2	2
3501224	20	57	25	55	122	2	2

HP 4 CARBIDE PLUNGE CUT

Table


3500500	20	27	20	50	85	2	4
3500508	20	27	25	55	90	2	4
3500516	20	36	20	50	95	2	4
3500524	20	36	25	55	100	2	4
3500532	25	46	20	50	105	2	4
3500540	25	46	25	55	110	2	4
3500548	25	67	25	55	133	2	4
3500556	25	86	25	55	150	2	4

HP 4 PCD PLUNGE CUT

Table


3501500	20	27	20	50	85	2	4
3501508	20	27	25	55	90	2	4
3501516	20	36	20	50	95	2	4
3501524	20	36	25	55	100	2	4
3501532	25	46	20	50	105	2	4
3501540	25	46	25	55	110	2	4
3501548	25	67	25	55	133	2	4
3501556	25	86	25	55	150	2	4

NESTING

Table


3602202	10	22	12	40	75	2	3
3602204	12	22	12	40	75	3	3
3602206	12	27	12	40	75	3	3
3602208	12	33	12	40	85	3	3
3602210	14	22	16	50	85	3	3
3602212	14	27	16	50	85	3	3
3602214	14	33	16	50	95	3	3

PL 25 CARBIDE PLUNGE CUT

Table


2700500	8	22	12	40	72	1	2
2700502	10	25	12	40	75	1	2
2700504	12	25	12	40	75	1	2
2700506	12	25	16	50	85	1	2
2700508	12	25	20	50	85	1	2
2700510	12	25	25	55	90	1	2
2700512	12	35	12	40	85	1	2
2700514	14	25	16	50	85	1	2
2700516	16	25	16	50	85	1	2
2700518	16	25	20	50	85	1	2
2700520	16	35	16	50	95	1	2
2700522	16	35	20	50	95	1	2
2700524	16	43	16	50	105	1	2
2700526	16	43	20	50	105	1	2
2700528	18	25	16	50	85	1	2
2700530	18	25	20	50	85	1	2
2700532	18	25	25	55	90	1	2
2700534	18	35	16	50	95	1	2
2700536	18	35	20	50	95	1	2
2700538	18	35	25	55	100	1	2
2700540	18	43	16	50	105	1	2
2700542	18	43	20	50	105	1	2
2700544	18	43	25	55	110	1	2
2700546	20	25	20	50	85	1	2
2700548	20	25	25	55	90	1	2
2700550	20	35	20	50	95	1	2
2700552	20	35	25	55	100	1	2
2700554	20	43	20	50	105	1	2
2700556	20	43	25	55	110	1	2
2700558	20	52	20	50	112	1	2
2700560	20	52	25	55	117	1	2
2700562	20	65	20	50	125	1	2
2700564	20	65	25	55	130	1	2
2700566	25	85	20	50	145	1	2
2700568	25	85	25	55	150	1	2
2700800	12	25	12	40	75	1	2
2700802	12	35	12	40	85	1	2
2700804	15	25	15	50	85	1	2
2700806	15	35	15	50	95	1	2
2700808	19	25	19	50	85	1	2
2700810	19	35	19	50	95	1	2
2700812	19	52	19	50	117	1	2
2700814	19	43	19	50	108	1	2

PL 25 PCD PLUNGE CUT

Table


2701502	10	25	12	40	75	1	2
2701504	12	25	12	40	75	1	2
2701506	12	25	16	50	85	1	2
2701508	12	25	20	50	85	1	2
2701510	12	25	25	55	90	1	2
2701512	12	35	12	40	85	1	2
2701514	14	25	16	50	85	1	2
2701516	16	25	16	50	85	1	2
2701518	16	25	20	50	85	1	2
2701520	16	35	16	50	95	1	2
2701522	16	35	20	50	95	1	2
2701524	16	43	16	50	105	1	2
2701526	16	43	20	50	105	1	2
2701528	18	25	16	50	85	1	2
2701530	18	25	20	50	85	1	2
2701532	18	25	25	55	90	1	2
2701534	18	35	16	50	95	1	2
2701536	18	35	20	50	95	1	2
2701538	18	35	25	55	100	1	2
2701540	18	43	16	50	105	1	2
2701542	18	43	20	50	105	1	2
2701544	18	43	25	55	110	1	2
2701546	20	25	20	50	85	1	2
2701548	20	25	25	55	90	1	2
2701550	20	35	20	50	95	1	2
2701552	20	35	25	55	100	1	2
2701554	20	43	20	50	105	1	2
2701556	20	43	25	55	110	1	2
2701558	20	52	20	50	112	1	2
2701560	20	52	25	55	117	1	2
2701562	20	65	20	50	125	1	2
2701564	20	65	25	55	130	1	2
2701566	25	85	20	50	145	1	2
2701568	25	85	25	55	150	1	2

PL 40 CARBIDE PLUNGE CUT

Table


2800012	16	25	16	50	85	1	4
2800016	16	35	16	50	95	1	4
2800024	18	25	16	50	85	1	4
2800028	18	25	20	50	85	1	4
2800032	18	25	25	55	90	1	4
2800040	18	35	20	50	95	1	4
2800044	18	35	25	55	100	1	4
2800052	18	43	20	50	105	1	4
2800056	18	43	25	55	110	1	4
2800064	20	25	20	50	85	1	4
2800068	20	25	25	55	90	1	4
2800076	20	35	20	50	95	1	4
2800080	20	35	25	55	100	1	4
2800088	20	43	20	50	105	1	4
2800092	20	43	25	55	110	1	4
2800100	20	52	20	50	112	1	4
2800104	20	52	25	55	117	1	4
2800108	25	65	20	50	125	1	4
2800112	25	65	25	55	130	1	4
2800116	25	85	20	50	145	1	4
2800120	25	85	25	55	150	1	4

PL 40 PCD PLUNGE CUT

Table


2801012	16	25	16	50	85	1	4
2801016	16	35	16	50	95	1	4
2801024	18	25	16	50	85	1	4
2801028	18	25	20	50	85	1	4
2801032	18	25	25	55	90	1	4
2801040	18	35	20	50	95	1	4
2801044	18	35	25	55	100	1	4
2801052	18	43	20	50	105	1	4
2801056	18	43	25	55	110	1	4
2801064	20	25	20	50	85	1	4
2801068	20	25	25	55	90	1	4
2801076	20	35	20	50	95	1	4
2801080	20	35	25	55	100	1	4
2801088	20	43	20	50	105	1	4
2801092	20	43	25	55	110	1	4
2801100	20	52	20	50	112	1	4
2801104	20	52	25	55	117	1	4
2801108	25	65	20	50	125	1	4
2801112	25	65	25	55	130	1	4
2801116	25	85	20	50	145	1	4
2801120	25	85	25	55	150	1	4

PULSE

Table


3420012	0		0			0	0
3420020	0		0			0	0
3420028	0		0			0	0
3420034	0		0			0	0
3420042	0		0			0	0
3420050	0		0			0	0

SMART CARBIDE BODY

Table


3300100	5	8	10	40	55	1	3
3300108	5	8	12	40	55	1	3
3300116	5	8	10	40	55	1	3
3300124	5	8	12	40	55	1	3
3300132	6	12	10	40	70	1	3
3300140	6	12	12	40	70	1	3
3300148	6	12	10	40	70	1	3
3300156	6	12	12	40	70	1	3
3300164	6	12	10	40	70	1	3
3300172	6	12	12	40	70	1	3
3300180	6	12	10	40	70	1	3
3300188	6	12	12	40	70	1	3
3300196	7	12	10	40	70	1	3
3300204	7	12	12	40	70	1	3
3300212	7	12	10	40	70	1	3
3300220	7	12	12	40	70	1	3
3300228	7	12	10	40	70	1	3
3300236	7	12	12	40	70	1	3
3300244	7	12	10	40	70	1	3
3300252	7	12	12	40	70	1	3
3300260	8	15	10	40	70	2	3
3300268	8	15	12	40	70	2	3
3300276	8	15	10	40	70	2	3
3300284	8	15	12	40	70	2	3
3300292	9	15	10	40	70	2	3
3300300	9	15	12	40	70	2	3
3300308	9	15	10	40	70	2	3
3300316	9	15	12	40	70	2	3
3300324	10	15	10	40	70	2	3
3300332	10	15	12	40	70	2	3
3300340	10	22	10	40	70	2	3
3300348	10	22	12	40	70	2	3
3300356	10	15	10	40	70	2	3
3300364	10	15	12	40	70	2	3
3300372	12	25	12	40	70	2	3

SMART STEEL BODY

Table


3300380	16	25	16	50	85	2	3
3300388	16	25	20	50	85	2	3
3300396	16	35	16	50	95	2	3
3300404	16	35	20	50	95	2	3
3300412	20	25	20	50	95	2	3
3300420	20	35	20	50	95	2	3
3300428	20	25	25	50	95	2	3
3300436	20	35	25	50	95	2	3

TOP 2

Table


2900200	18	22	20	50	85	3	4
2900202	20	28	20	50	85	3	4
2900204	20	38	20	50	95	3	4
2900206	20	45	20	50	105	3	4
2900208	20	28	25	55	95	3	4
2900210	20	38	25	55	100	3	4
2900212	25	28	25	55	90	3	4
2900214	25	38	25	55	105	3	4
2900216	25	45	25	55	110	3	4
2900218	25	55	25	55	123	3	4
2900220	25	64	25	55	130	3	4
2900222	25	85	25	55	150	3	4

TOP DR BASIC

Table


1900020	25	22	25	55	120	3	4
1900022	25	26	25	55	125	3	4
1900024	25	30	25	55	135	3	4
1900026	25	34	25	55	145	3	4

TOP DR PLUS

Table


1901020	25	22	25	55	120	3	4
1901022	25	26	25	55	125	3	4
1901024	25	30	25	55	135	3	4
1901026	25	34	25	55	145	3	4

TOP HD

Table


2902200	8	22	12	50	85	2	2
2902202	10	23	12	50	85	2	3
2902204	12	27	12	50	85	2	3
2902206	12	38	12	50	100	2	3
2902208	14	45	16	50	100	2	3
2902210	16	55	16	50	100	3	3
2902212	20	67	20	50	125	3	4
2902214	22	75	20	50	125	3	4
2902216	25	105	25	55	170	3	4

TOP R

Table


3600020	18	22	20	50	85	3	4
3600022	20	28	20	50	85	3	4
3600024	20	38	20	50	95	3	4
3600026	20	45	20	50	105	3	4
3600028	20	28	25	55	90	3	4
3600030	20	38	25	55	100	3	4
3600032	25	28	25	55	90	3	4
3600034	25	38	25	55	105	3	4
3600036	25	45	25	55	110	3	4
3600038	25	55	25	55	123	3	4
3600040	25	62	25	55	130	3	4
3600042	25	85	25	55	150	3	4

TRAKTOR

Table


2500020	50	23	25	55	80	3	4
2500022	50	23	25	55	80	4	4
2500024	50	28	25	55	85	3	4
2500026	50	28	25	55	85	4	4
2500028	50	38	25	55	95	3	4
2500030	50	38	25	55	95	4	4
2500032	60	28	25	55	85	3	4
2500034	60	28	25	55	85	4	4
2500036	60	38	25	55	95	3	4
2500038	60	38	25	55	95	4	4
2500040	60	23	25	55	80	3	4
2500042	60	23	25	55	80	4	4

XP 2

Table


3800012	20	24	20	50	85	2	4
3800020	20	24	25	55	90	2	4
3800028	20	28	20	50	85	2	4
3800036	20	28	25	55	90	2	4
3800044	20	36	20	50	95	2	4
3800052	20	36	25	55	100	2	4
3800060	20	48	20	50	105	2	4
3800068	20	48	25	55	110	2	4
3800076	25	24	25	55	90	2	4
3800084	25	28	20	50	85	2	4
3800092	25	28	25	55	90	2	4
3800100	25	36	20	50	95	2	4
3800108	25	36	25	55	100	2	4
3800116	25	48	20	50	105	2	4
3800124	25	48	25	55	110	2	4
3800132	25	55	20	50	115	2	4
3800140	25	55	25	55	120	2	4
3800148	25	68	20	50	128	2	4
3800156	25	68	25	55	133	2	4
3800164	25	86	20	50	145	2	4
3800172	25	86	25	55	150	2	4

PL40

Router Bits for CNC PL40 high-quality materials Schiavon
