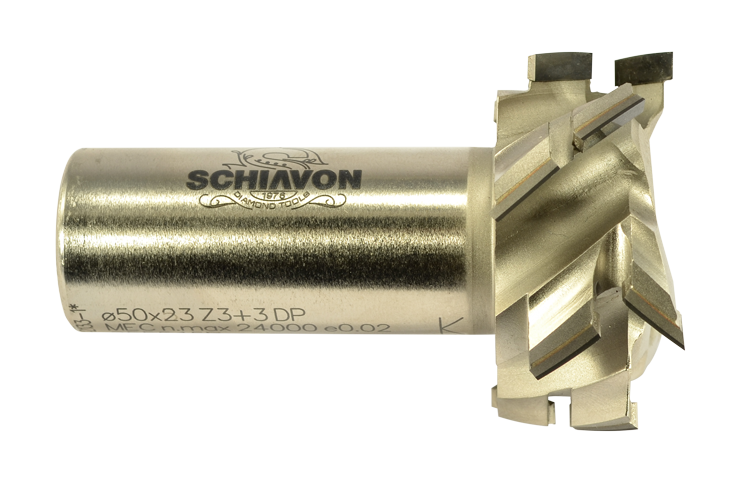

Traktor

Applications: Large diameter finishing tool for delicate panels at high feed rates. Machines: Router CNC. Materials: particleboard, MDF and plywood panels with or without veneer or any delicate panel. Technical features: Polished PCD tips with high cutting angle for an optimal cut on any type of panel. Feed speed up to 25 m / min. with Z3 configuration and up to 35 m / min. with configuration Z4. Sharpened on the lower cut for batting purposes. Ground shank with h6 tolerance for mounting on Hydro, Tribos or Heat-shrink tool holders. Regrinding: up to 6 times
WORKINGS
Contouring
Internal milling
PERFORMANCES
Drawings and Specs Chart

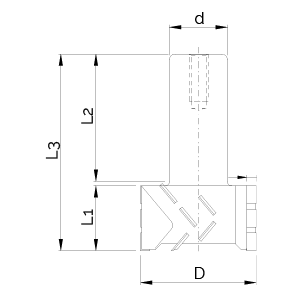

Technical drawings

Traktor
Tabella ricerca totale
2700500 PL 25 CARBIDE PLUNGE CUT 8 22 12 40 72 1 2
2700502 PL 25 CARBIDE PLUNGE CUT 10 25 12 40 75 1 2
2700504 PL 25 CARBIDE PLUNGE CUT 12 25 12 40 75 1 2
2700506 PL 25 CARBIDE PLUNGE CUT 12 25 16 50 85 1 2
2700508 PL 25 CARBIDE PLUNGE CUT 12 25 20 50 85 1 2
2700510 PL 25 CARBIDE PLUNGE CUT 12 25 25 55 90 1 2
2700512 PL 25 CARBIDE PLUNGE CUT 12 35 12 40 85 1 2
2700514 PL 25 CARBIDE PLUNGE CUT 14 25 16 50 85 1 2
2700516 PL 25 CARBIDE PLUNGE CUT 16 25 16 50 85 1 2
2700518 PL 25 CARBIDE PLUNGE CUT 16 25 20 50 85 1 2
2700520 PL 25 CARBIDE PLUNGE CUT 16 35 16 50 95 1 2
2700522 PL 25 CARBIDE PLUNGE CUT 16 35 20 50 95 1 2
2700524 PL 25 CARBIDE PLUNGE CUT 16 43 16 50 105 1 2
2700526 PL 25 CARBIDE PLUNGE CUT 16 43 20 50 105 1 2
2700528 PL 25 CARBIDE PLUNGE CUT 18 25 16 50 85 1 2
2700530 PL 25 CARBIDE PLUNGE CUT 18 25 20 50 85 1 2
2700532 PL 25 CARBIDE PLUNGE CUT 18 25 25 55 90 1 2
2700534 PL 25 CARBIDE PLUNGE CUT 18 35 16 50 95 1 2
2700536 PL 25 CARBIDE PLUNGE CUT 18 35 20 50 95 1 2
2700538 PL 25 CARBIDE PLUNGE CUT 18 35 25 55 100 1 2
2700540 PL 25 CARBIDE PLUNGE CUT 18 43 16 50 105 1 2
2700542 PL 25 CARBIDE PLUNGE CUT 18 43 20 50 105 1 2
2700544 PL 25 CARBIDE PLUNGE CUT 18 43 25 55 110 1 2
2700546 PL 25 CARBIDE PLUNGE CUT 20 25 20 50 85 1 2
2700548 PL 25 CARBIDE PLUNGE CUT 20 25 25 55 90 1 2
2700550 PL 25 CARBIDE PLUNGE CUT 20 35 20 50 95 1 2
2700552 PL 25 CARBIDE PLUNGE CUT 20 35 25 55 100 1 2
2700554 PL 25 CARBIDE PLUNGE CUT 20 43 20 50 105 1 2
2700556 PL 25 CARBIDE PLUNGE CUT 20 43 25 55 110 1 2
2700558 PL 25 CARBIDE PLUNGE CUT 20 52 20 50 112 1 2
2700560 PL 25 CARBIDE PLUNGE CUT 20 52 25 55 117 1 2
2700562 PL 25 CARBIDE PLUNGE CUT 20 65 20 50 125 1 2
2700564 PL 25 CARBIDE PLUNGE CUT 20 65 25 55 130 1 2
2700566 PL 25 CARBIDE PLUNGE CUT 25 85 20 50 145 1 2
2700568 PL 25 CARBIDE PLUNGE CUT 25 85 25 55 150 1 2
2700800 PL 25 CARBIDE PLUNGE CUT 12 25 12 40 75 1 2
2700802 PL 25 CARBIDE PLUNGE CUT 12 35 12 40 85 1 2
2700804 PL 25 CARBIDE PLUNGE CUT 15 25 15 50 85 1 2
2700806 PL 25 CARBIDE PLUNGE CUT 15 35 15 50 95 1 2
2700808 PL 25 CARBIDE PLUNGE CUT 19 25 19 50 85 1 2
2700810 PL 25 CARBIDE PLUNGE CUT 19 35 19 50 95 1 2
2700814 PL 25 CARBIDE PLUNGE CUT 19 43 19 50 108 1 2
2700812 PL 25 CARBIDE PLUNGE CUT 19 52 19 50 117 1 2
2701502 PL 25 PCD PLUNGE CUT 10 25 12 40 75 1 2
2701504 PL 25 PCD PLUNGE CUT 12 25 12 40 75 1 2
2701506 PL 25 PCD PLUNGE CUT 12 25 16 50 85 1 2
2701508 PL 25 PCD PLUNGE CUT 12 25 20 50 85 1 2
2701510 PL 25 PCD PLUNGE CUT 12 25 25 55 90 1 2
2701512 PL 25 PCD PLUNGE CUT 12 35 12 40 85 1 2
2701514 PL 25 PCD PLUNGE CUT 14 25 16 50 85 1 2
2701516 PL 25 PCD PLUNGE CUT 16 25 16 50 85 1 2
2701518 PL 25 PCD PLUNGE CUT 16 25 20 50 85 1 2
2701520 PL 25 PCD PLUNGE CUT 16 35 16 50 95 1 2
2701522 PL 25 PCD PLUNGE CUT 16 35 20 50 95 1 2
2701524 PL 25 PCD PLUNGE CUT 16 43 16 50 105 1 2
2701526 PL 25 PCD PLUNGE CUT 16 43 20 50 105 1 2
2701528 PL 25 PCD PLUNGE CUT 18 25 16 50 85 1 2
2701530 PL 25 PCD PLUNGE CUT 18 25 20 50 85 1 2
2701532 PL 25 PCD PLUNGE CUT 18 25 25 55 90 1 2
2701534 PL 25 PCD PLUNGE CUT 18 35 16 50 95 1 2
2701536 PL 25 PCD PLUNGE CUT 18 35 20 50 95 1 2
2701538 PL 25 PCD PLUNGE CUT 18 35 25 55 100 1 2
2701540 PL 25 PCD PLUNGE CUT 18 43 16 50 105 1 2
2701542 PL 25 PCD PLUNGE CUT 18 43 20 50 105 1 2
2701544 PL 25 PCD PLUNGE CUT 18 43 25 55 110 1 2
2701546 PL 25 PCD PLUNGE CUT 20 25 20 50 85 1 2
2701548 PL 25 PCD PLUNGE CUT 20 25 25 55 90 1 2
2701550 PL 25 PCD PLUNGE CUT 20 35 20 50 95 1 2
2701552 PL 25 PCD PLUNGE CUT 20 35 25 55 100 1 2
2701554 PL 25 PCD PLUNGE CUT 20 43 20 50 105 1 2
2701556 PL 25 PCD PLUNGE CUT 20 43 25 55 110 1 2
2701558 PL 25 PCD PLUNGE CUT 20 52 20 50 112 1 2
2701560 PL 25 PCD PLUNGE CUT 20 52 25 55 117 1 2
2701562 PL 25 PCD PLUNGE CUT 20 65 20 50 125 1 2
2701564 PL 25 PCD PLUNGE CUT 20 65 25 55 130 1 2
2701566 PL 25 PCD PLUNGE CUT 25 85 20 50 145 1 2
2701568 PL 25 PCD PLUNGE CUT 25 85 25 55 150 1 2
2800012 PL 40 CARBIDE PLUNGE CUT 16 25 16 50 85 1 4
2800016 PL 40 CARBIDE PLUNGE CUT 16 35 16 50 95 1 4
2800024 PL 40 CARBIDE PLUNGE CUT 18 25 16 50 85 1 4
2800028 PL 40 CARBIDE PLUNGE CUT 18 25 20 50 85 1 4
2800032 PL 40 CARBIDE PLUNGE CUT 18 25 25 55 90 1 4
2800040 PL 40 CARBIDE PLUNGE CUT 18 35 20 50 95 1 4
2800044 PL 40 CARBIDE PLUNGE CUT 18 35 25 55 100 1 4
2800052 PL 40 CARBIDE PLUNGE CUT 18 43 20 50 105 1 4
2800056 PL 40 CARBIDE PLUNGE CUT 18 43 25 55 110 1 4
2800064 PL 40 CARBIDE PLUNGE CUT 20 25 20 50 85 1 4
2800068 PL 40 CARBIDE PLUNGE CUT 20 25 25 55 90 1 4
2800076 PL 40 CARBIDE PLUNGE CUT 20 35 20 50 95 1 4
2800080 PL 40 CARBIDE PLUNGE CUT 20 35 25 55 100 1 4
2800088 PL 40 CARBIDE PLUNGE CUT 20 43 20 50 105 1 4
2800092 PL 40 CARBIDE PLUNGE CUT 20 43 25 55 110 1 4
2800100 PL 40 CARBIDE PLUNGE CUT 20 52 20 50 112 1 4
2800104 PL 40 CARBIDE PLUNGE CUT 20 52 25 55 117 1 4
2800108 PL 40 CARBIDE PLUNGE CUT 25 65 20 50 125 1 4
2800112 PL 40 CARBIDE PLUNGE CUT 25 65 25 55 130 1 4
2800116 PL 40 CARBIDE PLUNGE CUT 25 85 20 50 145 1 4
2800120 PL 40 CARBIDE PLUNGE CUT 25 85 25 55 150 1 4
2801012 PL 40 PCD PLUNGE CUT 16 25 16 50 85 1 4
2801016 PL 40 PCD PLUNGE CUT 16 35 16 50 95 1 4
2801024 PL 40 PCD PLUNGE CUT 18 25 16 50 85 1 4
2801028 PL 40 PCD PLUNGE CUT 18 25 20 50 85 1 4
2801032 PL 40 PCD PLUNGE CUT 18 25 25 55 90 1 4
2801040 PL 40 PCD PLUNGE CUT 18 35 20 50 95 1 4
2801044 PL 40 PCD PLUNGE CUT 18 35 25 55 100 1 4
2801052 PL 40 PCD PLUNGE CUT 18 43 20 50 105 1 4
2801056 PL 40 PCD PLUNGE CUT 18 43 25 55 110 1 4
2801064 PL 40 PCD PLUNGE CUT 20 25 20 50 85 1 4
2801068 PL 40 PCD PLUNGE CUT 20 25 25 55 90 1 4
2801076 PL 40 PCD PLUNGE CUT 20 35 20 50 95 1 4
2801080 PL 40 PCD PLUNGE CUT 20 35 25 55 100 1 4
2801088 PL 40 PCD PLUNGE CUT 20 43 20 50 105 1 4
2801092 PL 40 PCD PLUNGE CUT 20 43 25 55 110 1 4
2801100 PL 40 PCD PLUNGE CUT 20 52 20 50 112 1 4
2801104 PL 40 PCD PLUNGE CUT 20 52 25 55 117 1 4
2801108 PL 40 PCD PLUNGE CUT 25 65 20 50 125 1 4
2801112 PL 40 PCD PLUNGE CUT 25 65 25 55 130 1 4
2801116 PL 40 PCD PLUNGE CUT 25 85 20 50 145 1 4
2801120 PL 40 PCD PLUNGE CUT 25 85 25 55 150 1 4
2500020 TRAKTOR 50 23 25 55 80 3 4
2500022 TRAKTOR 50 23 25 55 80 4 4
2500024 TRAKTOR 50 28 25 55 85 3 4
2500026 TRAKTOR 50 28 25 55 85 4 4
2500028 TRAKTOR 50 38 25 55 95 3 4
2500030 TRAKTOR 50 38 25 55 95 4 4
2500040 TRAKTOR 60 23 25 55 80 3 4
2500042 TRAKTOR 60 23 25 55 80 4 4
2500032 TRAKTOR 60 28 25 55 85 3 4
2500034 TRAKTOR 60 28 25 55 85 4 4
2500036 TRAKTOR 60 38 25 55 95 3 4
2500038 TRAKTOR 60 38 25 55 95 4 4
3800012 XP 2 20 24 20 50 85 2 4
3800020 XP 2 20 24 25 55 90 2 4
3800028 XP 2 20 28 20 50 85 2 4
3800036 XP 2 20 28 25 55 90 2 4
3800044 XP 2 20 36 20 50 95 2 4
3800052 XP 2 20 36 25 55 100 2 4
3800060 XP 2 20 48 20 50 105 2 4
3800068 XP 2 20 48 25 55 110 2 4
3800076 XP 2 25 24 25 55 90 2 4
3800084 XP 2 25 28 20 50 85 2 4
3800092 XP 2 25 28 25 55 90 2 4
3800100 XP 2 25 36 20 50 95 2 4
3800108 XP 2 25 36 25 55 100 2 4
3800116 XP 2 25 48 20 50 105 2 4
3800124 XP 2 25 48 25 55 110 2 4
3800132 XP 2 25 55 20 50 115 2 4
3800140 XP 2 25 55 25 55 120 2 4
3800148 XP 2 25 68 20 50 128 2 4
3800156 XP 2 25 68 25 55 133 2 4
3800164 XP 2 25 86 20 50 145 2 4
3800172 XP 2 25 86 25 55 150 2 4
3500104 HP 2 CARBIDE PLUNGE CUT 16 23 20 50 85 2 2
3500112 HP 2 CARBIDE PLUNGE CUT 18 27 20 50 85 2 2
3500120 HP 2 CARBIDE PLUNGE CUT 18 27 25 55 90 2 2
3500128 HP 2 CARBIDE PLUNGE CUT 18 36 20 50 95 2 2
3500136 HP 2 CARBIDE PLUNGE CUT 18 36 25 55 100 2 2
3500144 HP 2 CARBIDE PLUNGE CUT 20 27 20 50 85 2 2
3500152 HP 2 CARBIDE PLUNGE CUT 20 27 25 55 90 2 2
3500160 HP 2 CARBIDE PLUNGE CUT 20 36 20 50 95 2 2
3500168 HP 2 CARBIDE PLUNGE CUT 20 36 25 55 100 2 2
3500176 HP 2 CARBIDE PLUNGE CUT 20 46 20 50 105 2 2
3500184 HP 2 CARBIDE PLUNGE CUT 20 46 25 55 110 2 2
3500216 HP 2 CARBIDE PLUNGE CUT 20 57 20 50 117 2 2
3500224 HP 2 CARBIDE PLUNGE CUT 20 57 25 55 122 2 2
3500192 HP 2 CARBIDE PLUNGE CUT 25 67 20 50 126 2 2
3500200 HP 2 CARBIDE PLUNGE CUT 25 67 25 55 133 2 2
3500208 HP 2 CARBIDE PLUNGE CUT 25 86 25 55 150 2 2
3501104 HP 2 PCD PLUNGE CUT 16 23 20 50 85 2 2
3501112 HP 2 PCD PLUNGE CUT 18 27 20 50 85 2 2
3501120 HP 2 PCD PLUNGE CUT 18 27 25 55 90 2 2
3501128 HP 2 PCD PLUNGE CUT 18 36 20 50 95 2 2
3501136 HP 2 PCD PLUNGE CUT 18 36 25 55 100 2 2
3501144 HP 2 PCD PLUNGE CUT 20 27 20 50 85 2 2
3501152 HP 2 PCD PLUNGE CUT 20 27 25 55 90 2 2
3501160 HP 2 PCD PLUNGE CUT 20 36 20 50 95 2 2
3501168 HP 2 PCD PLUNGE CUT 20 36 25 55 100 2 2
3501176 HP 2 PCD PLUNGE CUT 20 46 20 50 105 2 2
3501184 HP 2 PCD PLUNGE CUT 20 46 25 55 110 2 2
3501216 HP 2 PCD PLUNGE CUT 20 57 20 50 117 2 2
3501224 HP 2 PCD PLUNGE CUT 20 57 25 55 122 2 2
3501192 HP 2 PCD PLUNGE CUT 25 67 20 50 126 2 2
3501200 HP 2 PCD PLUNGE CUT 25 67 25 55 133 2 2
3501208 HP 2 PCD PLUNGE CUT 25 86 25 55 150 2 2
3500500 HP 4 CARBIDE PLUNGE CUT 20 27 20 50 85 2 4
3500508 HP 4 CARBIDE PLUNGE CUT 20 27 25 55 90 2 4
3500516 HP 4 CARBIDE PLUNGE CUT 20 36 20 50 95 2 4
3500524 HP 4 CARBIDE PLUNGE CUT 20 36 25 55 100 2 4
3500532 HP 4 CARBIDE PLUNGE CUT 25 46 20 50 105 2 4
3500540 HP 4 CARBIDE PLUNGE CUT 25 46 25 55 110 2 4
3500548 HP 4 CARBIDE PLUNGE CUT 25 67 25 55 133 2 4
3500556 HP 4 CARBIDE PLUNGE CUT 25 86 25 55 150 2 4
3501500 HP 4 PCD PLUNGE CUT 20 27 20 50 85 2 4
3501508 HP 4 PCD PLUNGE CUT 20 27 25 55 90 2 4
3501516 HP 4 PCD PLUNGE CUT 20 36 20 50 95 2 4
3501524 HP 4 PCD PLUNGE CUT 20 36 25 55 100 2 4
3501532 HP 4 PCD PLUNGE CUT 25 46 20 50 105 2 4
3501540 HP 4 PCD PLUNGE CUT 25 46 25 55 110 2 4
3501548 HP 4 PCD PLUNGE CUT 25 67 25 55 133 2 4
3501556 HP 4 PCD PLUNGE CUT 25 86 25 55 150 2 4
2900200 TOP 2 18 22 20 50 85 3 4
2900202 TOP 2 20 28 20 50 85 3 4
2900204 TOP 2 20 38 20 50 95 3 4
2900206 TOP 2 20 45 20 50 105 3 4
2900208 TOP 2 20 28 25 55 95 3 4
2900210 TOP 2 20 38 25 55 100 3 4
2900212 TOP 2 25 28 25 55 90 3 4
2900214 TOP 2 25 38 25 55 105 3 4
2900216 TOP 2 25 45 25 55 110 3 4
2900218 TOP 2 25 55 25 55 123 3 4
2900220 TOP 2 25 64 25 55 130 3 4
2900222 TOP 2 25 85 25 55 150 3 4
3400012 EVO 1 20 28 20 50 88 2 3
3400020 EVO 1 25 28 25 55 93 2 3
3400028 EVO 1 20 45 20 50 105 2 3
3400034 EVO 1 25 45 25 55 110 2 3
3400042 EVO 1 25 55 25 55 120 2 3
3400050 EVO 1 25 67 25 55 132 2 3
3420012 PULSE 0 0 0 0
3420020 PULSE 0 0 0 0
3420028 PULSE 0 0 0 0
3420034 PULSE 0 0 0 0
3420042 PULSE 0 0 0 0
3420050 PULSE 0 0 0 0
3602202 NESTING 10 22 12 40 75 2 3
3602204 NESTING 12 22 12 40 75 3 3
3602206 NESTING 12 27 12 40 75 3 3
3602208 NESTING 12 33 12 40 85 3 3
3602210 NESTING 14 22 16 50 85 3 3
3602212 NESTING 14 27 16 50 85 3 3
3602214 NESTING 14 33 16 50 95 3 3
2902200 TOP HD 8 22 12 50 85 2 2
2902202 TOP HD 10 23 12 50 85 2 3
2902204 TOP HD 12 27 12 50 85 2 3
2902206 TOP HD 12 38 12 50 100 2 3
2902208 TOP HD 14 45 16 50 100 2 3
2902210 TOP HD 16 55 16 50 100 3 3
2902212 TOP HD 20 67 20 50 125 3 4
2902214 TOP HD 22 75 20 50 125 3 4
2902216 TOP HD 25 105 25 55 170 3 4
3600020 TOP R 18 22 20 50 85 3 4
3600022 TOP R 20 28 20 50 85 3 4
3600024 TOP R 20 38 20 50 95 3 4
3600026 TOP R 20 45 20 50 105 3 4
3600028 TOP R 20 28 25 55 90 3 4
3600030 TOP R 20 38 25 55 100 3 4
3600032 TOP R 25 28 25 55 90 3 4
3600034 TOP R 25 38 25 55 105 3 4
3600036 TOP R 25 45 25 55 110 3 4
3600038 TOP R 25 55 25 55 123 3 4
3600040 TOP R 25 62 25 55 130 3 4
3600042 TOP R 25 85 25 55 150 3 4
1900020 TOP DR BASIC 25 22 25 55 120 3 4
1900022 TOP DR BASIC 25 26 25 55 125 3 4
1900024 TOP DR BASIC 25 30 25 55 135 3 4
1900026 TOP DR BASIC 25 34 25 55 145 3 4
1901020 TOP DR PLUS 25 22 25 55 120 3 4
1901022 TOP DR PLUS 25 26 25 55 125 3 4
1901024 TOP DR PLUS 25 30 25 55 135 3 4
1901026 TOP DR PLUS 25 34 25 55 145 3 4
3300100 SMART CARBIDE BODY 5 8 10 40 55 1 3
3300108 SMART CARBIDE BODY 5 8 12 40 55 1 3
3300116 SMART CARBIDE BODY 5 8 10 40 55 1 3
3300124 SMART CARBIDE BODY 5 8 12 40 55 1 3
3300132 SMART CARBIDE BODY 6 12 10 40 70 1 3
3300140 SMART CARBIDE BODY 6 12 12 40 70 1 3
3300148 SMART CARBIDE BODY 6 12 10 40 70 1 3
3300156 SMART CARBIDE BODY 6 12 12 40 70 1 3
3300164 SMART CARBIDE BODY 6 12 10 40 70 1 3
3300172 SMART CARBIDE BODY 6 12 12 40 70 1 3
3300180 SMART CARBIDE BODY 6 12 10 40 70 1 3
3300188 SMART CARBIDE BODY 6 12 12 40 70 1 3
3300196 SMART CARBIDE BODY 7 12 10 40 70 1 3
3300204 SMART CARBIDE BODY 7 12 12 40 70 1 3
3300212 SMART CARBIDE BODY 7 12 10 40 70 1 3
3300220 SMART CARBIDE BODY 7 12 12 40 70 1 3
3300228 SMART CARBIDE BODY 7 12 10 40 70 1 3
3300236 SMART CARBIDE BODY 7 12 12 40 70 1 3
3300244 SMART CARBIDE BODY 7 12 10 40 70 1 3
3300252 SMART CARBIDE BODY 7 12 12 40 70 1 3
3300260 SMART CARBIDE BODY 8 15 10 40 70 2 3
3300268 SMART CARBIDE BODY 8 15 12 40 70 2 3
3300276 SMART CARBIDE BODY 8 15 10 40 70 2 3
3300284 SMART CARBIDE BODY 8 15 12 40 70 2 3
3300292 SMART CARBIDE BODY 9 15 10 40 70 2 3
3300300 SMART CARBIDE BODY 9 15 12 40 70 2 3
3300308 SMART CARBIDE BODY 9 15 10 40 70 2 3
3300316 SMART CARBIDE BODY 9 15 12 40 70 2 3
3300324 SMART CARBIDE BODY 10 15 10 40 70 2 3
3300332 SMART CARBIDE BODY 10 15 12 40 70 2 3
3300340 SMART CARBIDE BODY 10 22 10 40 70 2 3
3300348 SMART CARBIDE BODY 10 22 12 40 70 2 3
3300356 SMART CARBIDE BODY 10 15 10 40 70 2 3
3300364 SMART CARBIDE BODY 10 15 12 40 70 2 3
3300372 SMART CARBIDE BODY 12 25 12 40 70 2 3
3300380 SMART STEEL BODY 16 25 16 50 85 2 3
3300388 SMART STEEL BODY 16 25 20 50 85 2 3
3300396 SMART STEEL BODY 16 35 16 50 95 2 3
3300404 SMART STEEL BODY 16 35 20 50 95 2 3
3300412 SMART STEEL BODY 20 25 20 50 95 2 3
3300420 SMART STEEL BODY 20 35 20 50 95 2 3
3300428 SMART STEEL BODY 20 25 25 50 95 2 3
3300436 SMART STEEL BODY 20 35 25 50 95 2 3
EVO 1

Table
3400012 20 28 20 50 88 2 3
3400020 25 28 25 55 93 2 3
3400028 20 45 20 50 105 2 3
3400034 25 45 25 55 110 2 3
3400042 25 55 25 55 120 2 3
3400050 25 67 25 55 132 2 3
HP 2 CARBIDE PLUNGE CUT

Table
3500104 16 23 20 50 85 2 2
3500112 18 27 20 50 85 2 2
3500120 18 27 25 55 90 2 2
3500128 18 36 20 50 95 2 2
3500136 18 36 25 55 100 2 2
3500144 20 27 20 50 85 2 2
3500152 20 27 25 55 90 2 2
3500160 20 36 20 50 95 2 2
3500168 20 36 25 55 100 2 2
3500176 20 46 20 50 105 2 2
3500184 20 46 25 55 110 2 2
3500192 25 67 20 50 126 2 2
3500200 25 67 25 55 133 2 2
3500208 25 86 25 55 150 2 2
3500216 20 57 20 50 117 2 2
3500224 20 57 25 55 122 2 2
HP 2 PCD PLUNGE CUT

Table
3501104 16 23 20 50 85 2 2
3501112 18 27 20 50 85 2 2
3501120 18 27 25 55 90 2 2
3501128 18 36 20 50 95 2 2
3501136 18 36 25 55 100 2 2
3501144 20 27 20 50 85 2 2
3501152 20 27 25 55 90 2 2
3501160 20 36 20 50 95 2 2
3501168 20 36 25 55 100 2 2
3501176 20 46 20 50 105 2 2
3501184 20 46 25 55 110 2 2
3501192 25 67 20 50 126 2 2
3501200 25 67 25 55 133 2 2
3501208 25 86 25 55 150 2 2
3501216 20 57 20 50 117 2 2
3501224 20 57 25 55 122 2 2
HP 4 CARBIDE PLUNGE CUT

Table
3500500 20 27 20 50 85 2 4
3500508 20 27 25 55 90 2 4
3500516 20 36 20 50 95 2 4
3500524 20 36 25 55 100 2 4
3500532 25 46 20 50 105 2 4
3500540 25 46 25 55 110 2 4
3500548 25 67 25 55 133 2 4
3500556 25 86 25 55 150 2 4
HP 4 PCD PLUNGE CUT

Table
3501500 20 27 20 50 85 2 4
3501508 20 27 25 55 90 2 4
3501516 20 36 20 50 95 2 4
3501524 20 36 25 55 100 2 4
3501532 25 46 20 50 105 2 4
3501540 25 46 25 55 110 2 4
3501548 25 67 25 55 133 2 4
3501556 25 86 25 55 150 2 4
NESTING

Table
3602202 10 22 12 40 75 2 3
3602204 12 22 12 40 75 3 3
3602206 12 27 12 40 75 3 3
3602208 12 33 12 40 85 3 3
3602210 14 22 16 50 85 3 3
3602212 14 27 16 50 85 3 3
3602214 14 33 16 50 95 3 3
PL 25 CARBIDE PLUNGE CUT

Table
2700500 8 22 12 40 72 1 2
2700502 10 25 12 40 75 1 2
2700504 12 25 12 40 75 1 2
2700506 12 25 16 50 85 1 2
2700508 12 25 20 50 85 1 2
2700510 12 25 25 55 90 1 2
2700512 12 35 12 40 85 1 2
2700514 14 25 16 50 85 1 2
2700516 16 25 16 50 85 1 2
2700518 16 25 20 50 85 1 2
2700520 16 35 16 50 95 1 2
2700522 16 35 20 50 95 1 2
2700524 16 43 16 50 105 1 2
2700526 16 43 20 50 105 1 2
2700528 18 25 16 50 85 1 2
2700530 18 25 20 50 85 1 2
2700532 18 25 25 55 90 1 2
2700534 18 35 16 50 95 1 2
2700536 18 35 20 50 95 1 2
2700538 18 35 25 55 100 1 2
2700540 18 43 16 50 105 1 2
2700542 18 43 20 50 105 1 2
2700544 18 43 25 55 110 1 2
2700546 20 25 20 50 85 1 2
2700548 20 25 25 55 90 1 2
2700550 20 35 20 50 95 1 2
2700552 20 35 25 55 100 1 2
2700554 20 43 20 50 105 1 2
2700556 20 43 25 55 110 1 2
2700558 20 52 20 50 112 1 2
2700560 20 52 25 55 117 1 2
2700562 20 65 20 50 125 1 2
2700564 20 65 25 55 130 1 2
2700566 25 85 20 50 145 1 2
2700568 25 85 25 55 150 1 2
2700800 12 25 12 40 75 1 2
2700802 12 35 12 40 85 1 2
2700804 15 25 15 50 85 1 2
2700806 15 35 15 50 95 1 2
2700808 19 25 19 50 85 1 2
2700810 19 35 19 50 95 1 2
2700812 19 52 19 50 117 1 2
2700814 19 43 19 50 108 1 2
PL 25 PCD PLUNGE CUT

Table
2701502 10 25 12 40 75 1 2
2701504 12 25 12 40 75 1 2
2701506 12 25 16 50 85 1 2
2701508 12 25 20 50 85 1 2
2701510 12 25 25 55 90 1 2
2701512 12 35 12 40 85 1 2
2701514 14 25 16 50 85 1 2
2701516 16 25 16 50 85 1 2
2701518 16 25 20 50 85 1 2
2701520 16 35 16 50 95 1 2
2701522 16 35 20 50 95 1 2
2701524 16 43 16 50 105 1 2
2701526 16 43 20 50 105 1 2
2701528 18 25 16 50 85 1 2
2701530 18 25 20 50 85 1 2
2701532 18 25 25 55 90 1 2
2701534 18 35 16 50 95 1 2
2701536 18 35 20 50 95 1 2
2701538 18 35 25 55 100 1 2
2701540 18 43 16 50 105 1 2
2701542 18 43 20 50 105 1 2
2701544 18 43 25 55 110 1 2
2701546 20 25 20 50 85 1 2
2701548 20 25 25 55 90 1 2
2701550 20 35 20 50 95 1 2
2701552 20 35 25 55 100 1 2
2701554 20 43 20 50 105 1 2
2701556 20 43 25 55 110 1 2
2701558 20 52 20 50 112 1 2
2701560 20 52 25 55 117 1 2
2701562 20 65 20 50 125 1 2
2701564 20 65 25 55 130 1 2
2701566 25 85 20 50 145 1 2
2701568 25 85 25 55 150 1 2
PL 40 CARBIDE PLUNGE CUT

Table
2800012 16 25 16 50 85 1 4
2800016 16 35 16 50 95 1 4
2800024 18 25 16 50 85 1 4
2800028 18 25 20 50 85 1 4
2800032 18 25 25 55 90 1 4
2800040 18 35 20 50 95 1 4
2800044 18 35 25 55 100 1 4
2800052 18 43 20 50 105 1 4
2800056 18 43 25 55 110 1 4
2800064 20 25 20 50 85 1 4
2800068 20 25 25 55 90 1 4
2800076 20 35 20 50 95 1 4
2800080 20 35 25 55 100 1 4
2800088 20 43 20 50 105 1 4
2800092 20 43 25 55 110 1 4
2800100 20 52 20 50 112 1 4
2800104 20 52 25 55 117 1 4
2800108 25 65 20 50 125 1 4
2800112 25 65 25 55 130 1 4
2800116 25 85 20 50 145 1 4
2800120 25 85 25 55 150 1 4
PL 40 PCD PLUNGE CUT

Table
2801012 16 25 16 50 85 1 4
2801016 16 35 16 50 95 1 4
2801024 18 25 16 50 85 1 4
2801028 18 25 20 50 85 1 4
2801032 18 25 25 55 90 1 4
2801040 18 35 20 50 95 1 4
2801044 18 35 25 55 100 1 4
2801052 18 43 20 50 105 1 4
2801056 18 43 25 55 110 1 4
2801064 20 25 20 50 85 1 4
2801068 20 25 25 55 90 1 4
2801076 20 35 20 50 95 1 4
2801080 20 35 25 55 100 1 4
2801088 20 43 20 50 105 1 4
2801092 20 43 25 55 110 1 4
2801100 20 52 20 50 112 1 4
2801104 20 52 25 55 117 1 4
2801108 25 65 20 50 125 1 4
2801112 25 65 25 55 130 1 4
2801116 25 85 20 50 145 1 4
2801120 25 85 25 55 150 1 4
PULSE

Table
3420012 0 0 0 0
3420020 0 0 0 0
3420028 0 0 0 0
3420034 0 0 0 0
3420042 0 0 0 0
3420050 0 0 0 0
SMART CARBIDE BODY

Table
3300100 5 8 10 40 55 1 3
3300108 5 8 12 40 55 1 3
3300116 5 8 10 40 55 1 3
3300124 5 8 12 40 55 1 3
3300132 6 12 10 40 70 1 3
3300140 6 12 12 40 70 1 3
3300148 6 12 10 40 70 1 3
3300156 6 12 12 40 70 1 3
3300164 6 12 10 40 70 1 3
3300172 6 12 12 40 70 1 3
3300180 6 12 10 40 70 1 3
3300188 6 12 12 40 70 1 3
3300196 7 12 10 40 70 1 3
3300204 7 12 12 40 70 1 3
3300212 7 12 10 40 70 1 3
3300220 7 12 12 40 70 1 3
3300228 7 12 10 40 70 1 3
3300236 7 12 12 40 70 1 3
3300244 7 12 10 40 70 1 3
3300252 7 12 12 40 70 1 3
3300260 8 15 10 40 70 2 3
3300268 8 15 12 40 70 2 3
3300276 8 15 10 40 70 2 3
3300284 8 15 12 40 70 2 3
3300292 9 15 10 40 70 2 3
3300300 9 15 12 40 70 2 3
3300308 9 15 10 40 70 2 3
3300316 9 15 12 40 70 2 3
3300324 10 15 10 40 70 2 3
3300332 10 15 12 40 70 2 3
3300340 10 22 10 40 70 2 3
3300348 10 22 12 40 70 2 3
3300356 10 15 10 40 70 2 3
3300364 10 15 12 40 70 2 3
3300372 12 25 12 40 70 2 3
SMART STEEL BODY

Table
3300380 16 25 16 50 85 2 3
3300388 16 25 20 50 85 2 3
3300396 16 35 16 50 95 2 3
3300404 16 35 20 50 95 2 3
3300412 20 25 20 50 95 2 3
3300420 20 35 20 50 95 2 3
3300428 20 25 25 50 95 2 3
3300436 20 35 25 50 95 2 3
TOP 2

Table
2900200 18 22 20 50 85 3 4
2900202 20 28 20 50 85 3 4
2900204 20 38 20 50 95 3 4
2900206 20 45 20 50 105 3 4
2900208 20 28 25 55 95 3 4
2900210 20 38 25 55 100 3 4
2900212 25 28 25 55 90 3 4
2900214 25 38 25 55 105 3 4
2900216 25 45 25 55 110 3 4
2900218 25 55 25 55 123 3 4
2900220 25 64 25 55 130 3 4
2900222 25 85 25 55 150 3 4
TOP DR BASIC

Table
1900020 25 22 25 55 120 3 4
1900022 25 26 25 55 125 3 4
1900024 25 30 25 55 135 3 4
1900026 25 34 25 55 145 3 4
TOP DR PLUS

Table
1901020 25 22 25 55 120 3 4
1901022 25 26 25 55 125 3 4
1901024 25 30 25 55 135 3 4
1901026 25 34 25 55 145 3 4
TOP HD

Table
2902200 8 22 12 50 85 2 2
2902202 10 23 12 50 85 2 3
2902204 12 27 12 50 85 2 3
2902206 12 38 12 50 100 2 3
2902208 14 45 16 50 100 2 3
2902210 16 55 16 50 100 3 3
2902212 20 67 20 50 125 3 4
2902214 22 75 20 50 125 3 4
2902216 25 105 25 55 170 3 4
TOP R

Table
3600020 18 22 20 50 85 3 4
3600022 20 28 20 50 85 3 4
3600024 20 38 20 50 95 3 4
3600026 20 45 20 50 105 3 4
3600028 20 28 25 55 90 3 4
3600030 20 38 25 55 100 3 4
3600032 25 28 25 55 90 3 4
3600034 25 38 25 55 105 3 4
3600036 25 45 25 55 110 3 4
3600038 25 55 25 55 123 3 4
3600040 25 62 25 55 130 3 4
3600042 25 85 25 55 150 3 4
TRAKTOR

Table
2500020 50 23 25 55 80 3 4
2500022 50 23 25 55 80 4 4
2500024 50 28 25 55 85 3 4
2500026 50 28 25 55 85 4 4
2500028 50 38 25 55 95 3 4
2500030 50 38 25 55 95 4 4
2500032 60 28 25 55 85 3 4
2500034 60 28 25 55 85 4 4
2500036 60 38 25 55 95 3 4
2500038 60 38 25 55 95 4 4
2500040 60 23 25 55 80 3 4
2500042 60 23 25 55 80 4 4
XP 2

Table
3800012 20 24 20 50 85 2 4
3800020 20 24 25 55 90 2 4
3800028 20 28 20 50 85 2 4
3800036 20 28 25 55 90 2 4
3800044 20 36 20 50 95 2 4
3800052 20 36 25 55 100 2 4
3800060 20 48 20 50 105 2 4
3800068 20 48 25 55 110 2 4
3800076 25 24 25 55 90 2 4
3800084 25 28 20 50 85 2 4
3800092 25 28 25 55 90 2 4
3800100 25 36 20 50 95 2 4
3800108 25 36 25 55 100 2 4
3800116 25 48 20 50 105 2 4
3800124 25 48 25 55 110 2 4
3800132 25 55 20 50 115 2 4
3800140 25 55 25 55 120 2 4
3800148 25 68 20 50 128 2 4
3800156 25 68 25 55 133 2 4
3800164 25 86 20 50 145 2 4
3800172 25 86 25 55 150 2 4


Router Bits for CNC Traktor high-quality materials Schiavon


Schiavon tools are made with high quality materials and cutting-edge technologies, in order to guarantee constant and long-lasting performance.
Schiavon purchases steel and PCD from high-value and reliable suppliers, including STEELTEC and ELEMENT SIX.
Machines, production and control devices are the latest available on the market.
Schiavon offers a wide range of products, satisfying the most diverse needs and requirements of any leading company.
We follow a process based on the selection of quality materials and the use of tools made with modern machine tools.

Tractor

Schiavon uses cookies to offer you a better online experience.
OK Cookie Policy
