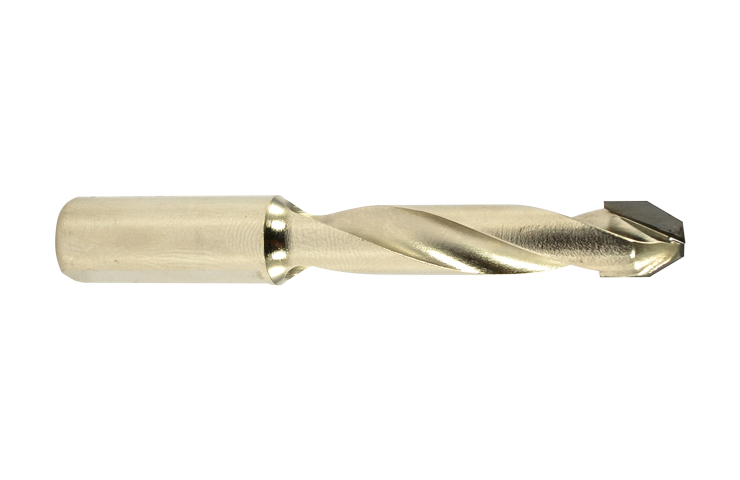

Truough Hole Boring Bits high-quality materials

Applications:
Through holes bore drilling.

Machines:
On line or off line drilling machines, vertical or horizontal CNC Routers.

Materials:
Plastic, chipboard, MDF and plywood panels with or without veneer.

Technical Features:
Z2 configuration. Excellent and chipping free drilling both on top and bottom. Extra care must be taken to ensure the correct Plunge and Rpm speed are used when selecting this tool for the material Being drilled. High precision bore. Ø10 mm shank with flat.

Re-sharpening:
up to 3 times

WORKINGS

Through holes

PERFORMANCES More info

More info

Drawings and Specs Chart

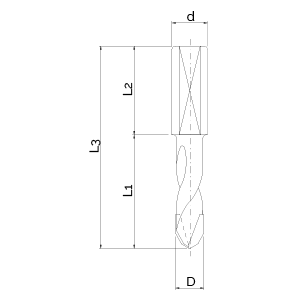

Technical drawings

Truough Hole Boring Bits

Tabella ricerca totale


3101012	5	32,5	10	25	57,5	2	3
3101016	5	32,5	10	25	57,5	2	3
3101020	6	32,5	10	25	57,5	2	3
3101024	6	32,5	10	25	57,5	2	3
3101026	7	32,5	10	25	57,5	2	3
3101030	7	32,5	10	25	57,5	2	3
3101028	8	32,5	10	25	57,5	2	3
3101032	8	32,5	10	25	57,5	2	3
3101036	10	32,5	10	25	57,5	2	3
3101040	10	32,5	10	25	57,5	2	3
3101044	11	32,5	10	25	57,5	2	3
3101048	12	32,5	10	25	57,5	2	3
3101052	13	32,5	10	25	57,5	2	3
3101112	5	45	10	25	70	2	3
3101116	5	45	10	25	70	2	3
3101120	6	45	10	25	70	2	3
3101124	6	45	10	25	70	2	3
3101126	7	45	10	25	70	2	3
3101130	7	45	10	25	70	2	3
3101128	8	45	10	25	70	2	3
3101132	8	45	10	25	70	2	3
3101136	10	45	10	25	70	2	3
3101140	10	45	10	25	70	2	3
3101144	11	45	10	25	70	2	3
3101148	12	45	10	25	70	2	3
3101152	13	45	10	25	70	2	3

Table


3101012	5	32,5	10	25	57,5	2	3
3101016	5	32,5	10	25	57,5	2	3
3101020	6	32,5	10	25	57,5	2	3
3101024	6	32,5	10	25	57,5	2	3
3101026	7	32,5	10	25	57,5	2	3
3101028	8	32,5	10	25	57,5	2	3
3101030	7	32,5	10	25	57,5	2	3
3101032	8	32,5	10	25	57,5	2	3
3101036	10	32,5	10	25	57,5	2	3
3101040	10	32,5	10	25	57,5	2	3
3101044	11	32,5	10	25	57,5	2	3
3101048	12	32,5	10	25	57,5	2	3
3101052	13	32,5	10	25	57,5	2	3
3101112	5	45	10	25	70	2	3
3101116	5	45	10	25	70	2	3
3101120	6	45	10	25	70	2	3
3101124	6	45	10	25	70	2	3
3101126	7	45	10	25	70	2	3
3101128	8	45	10	25	70	2	3
3101130	7	45	10	25	70	2	3
3101132	8	45	10	25	70	2	3
3101136	10	45	10	25	70	2	3
3101140	10	45	10	25	70	2	3
3101144	11	45	10	25	70	2	3
3101148	12	45	10	25	70	2	3
3101152	13	45	10	25	70	2	3

Truough Hole Boring Bits high-quality materials Schiavon

Schiavon Tools are Manufactured with high-quality materials and cutting edge-technologies, in order to guarantee steady and long-time performances.
Schiavon purchases steel and PCD from suppliers of great value and reliability, among them STEELTEC and ELEMENT SIX.
Machines, production and checking devices are the newest available in the market.
Schiavon offers a wide range of products, satisfying most different needs and requirements for any leading Company.
We follow a process based on the selection of quality materials and on the usage of tools manufactured With modern tool machines.
