Panel Sawing Adjustabel Scorers high-quality materials

Applications:
Pre-scoring.

Machines:
Vertical or horizontal panel saws.

Materials:
Chipboard, MDF, and plywood panels with or without veneer, melamine paper or plastic coatings.

Technical Features:
FZ tooth shape with positive rake. Cutting depth 2-3 mm. The decimal adjustment by means of ground shims allows a perfect match to the main blade.

Re-sharpening:
up to 13 times

WORKINGS

Pre-scoring

Scoring unit and sawblade cut

PERFORMANCES More info

More info

Drawings and Specs Chart

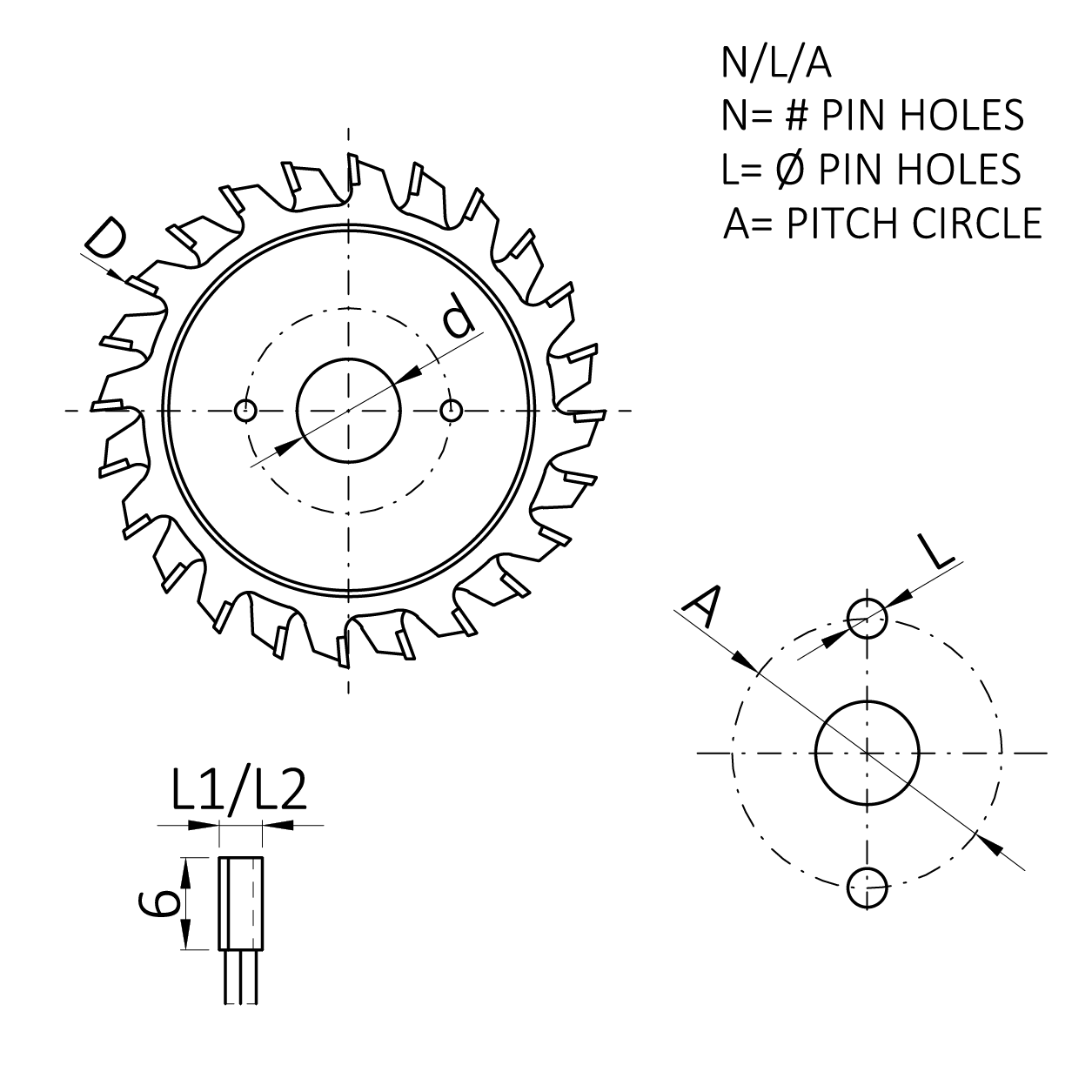

Technical drawings

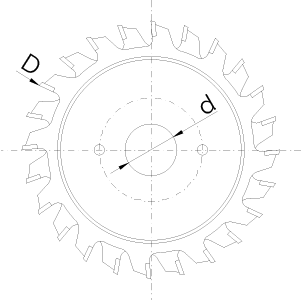

Adjustabel Scorers

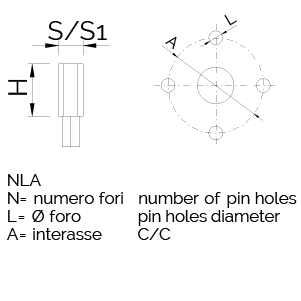

Adjustabel Scorers 1

Tabella ricerca totale


203900	70	2,8	20	8	3,6	6
203908	80	2,8	20	8	3,6	6
203725	100	2,8	22	12	3,6	6
203727	100	2,8	20	12	3,6	6
203461	125	2,8	20	12	3,6	6
203514	125	4	20	12	4,8	6
203565	125	4	20	12	4,8	6
203621	125	4	45	20	4,8	6
203492	125	4,2	20	12	5	6
203913	180	4	20	18	4,8	6
203969	180	4,2	20	18	5	6
203567	180	4,2	55	18	5	6
203583	180	4,2	55	24	5	6
203951	180	5	20	24	5,8	6
203978	180	6	20	24	6,8	6
203959	200	4	20	24	4,8	6
203941	200	5,4	20	24	6,2	6
203924	220	4	20	24	4,8	6
203972	220	6	20	24	6,8	6
203496	250	4,2	30	32	5	6
203600	250	4,2	50	32	5	6
203658	300	4,2	20	32	5	6
203634	300	4,2	50	32	5	6
203822	320	4,6	50	24	5,4	6

Table


203461	125	2,8	20	12	3,6	6
203492	125	4,2	20	12	5	6
203496	250	4,2	30	32	5	6
203514	125	4	20	12	4,8	6
203565	125	4	20	12	4,8	6
203567	180	4,2	55	18	5	6
203583	180	4,2	55	24	5	6
203600	250	4,2	50	32	5	6
203621	125	4	45	20	4,8	6
203634	300	4,2	50	32	5	6
203658	300	4,2	20	32	5	6
203725	100	2,8	22	12	3,6	6
203727	100	2,8	20	12	3,6	6
203822	320	4,6	50	24	5,4	6
203900	70	2,8	20	8	3,6	6
203908	80	2,8	20	8	3,6	6
203913	180	4	20	18	4,8	6
203924	220	4	20	24	4,8	6
203941	200	5,4	20	24	6,2	6
203951	180	5	20	24	5,8	6
203959	200	4	20	24	4,8	6
203969	180	4,2	20	18	5	6
203972	220	6	20	24	6,8	6
203978	180	6	20	24	6,8	6

Panel Sawing Adjustabel Scorers high-quality materials Schiavon

Schiavon Tools are Manufactured with high-quality materials and cutting edge-technologies, in order to guarantee steady and long-time performances.
Schiavon purchases steel and PCD from suppliers of great value and reliability, among them STEELTEC and ELEMENT SIX.
Machines, production and checking devices are the newest available in the market.
Schiavon offers a wide range of products, satisfying most different needs and requirements for any leading Company.
We follow a process based on the selection of quality materials and on the usage of tools manufactured With modern tool machines.

Adjustabel Scorers
