Flat Scorers

WORKINGS
Pre-scoring
Scoring unit and sawblade cut
PERFORMANCES
Drawings and Specs Chart

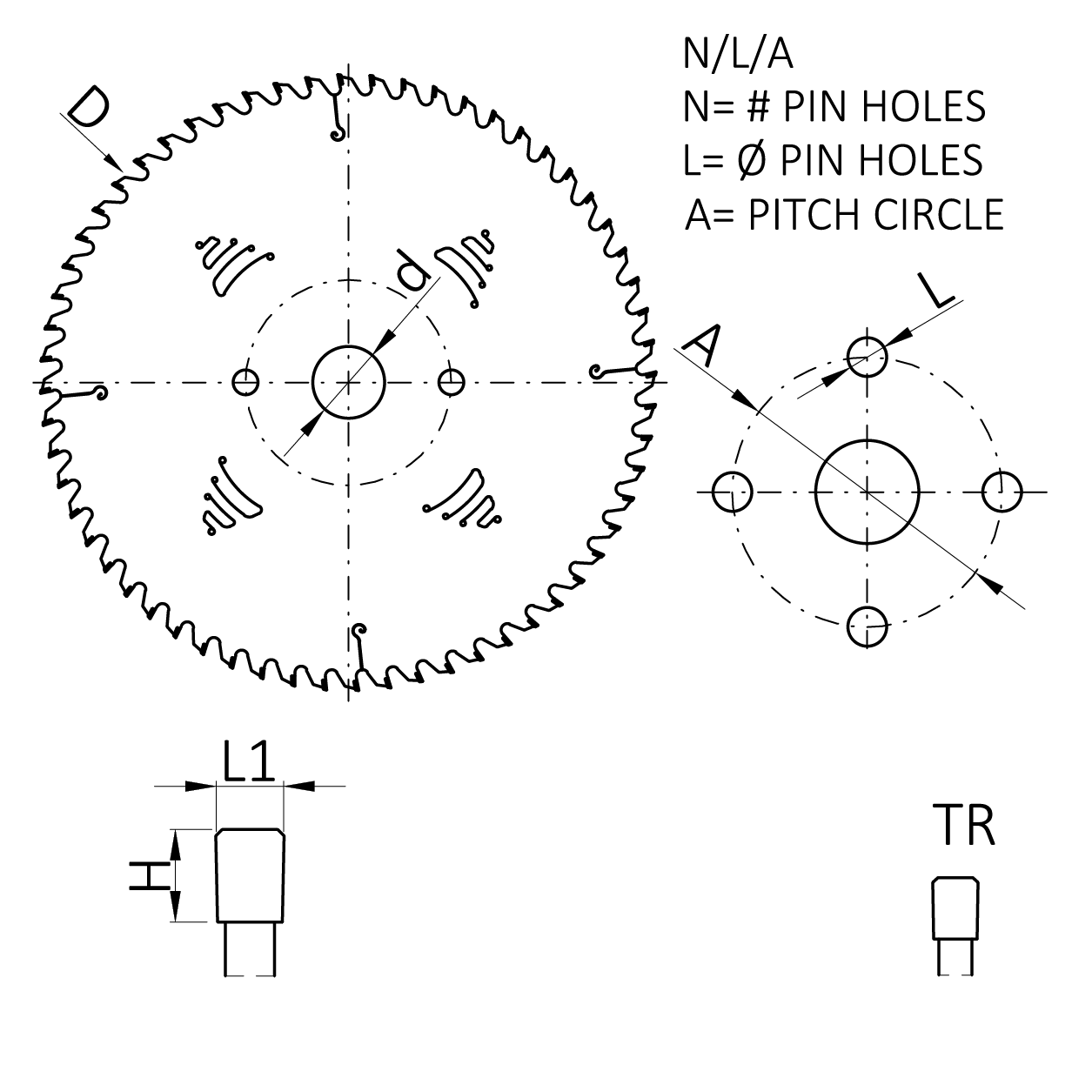

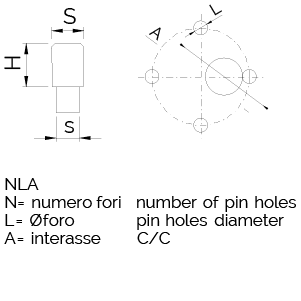

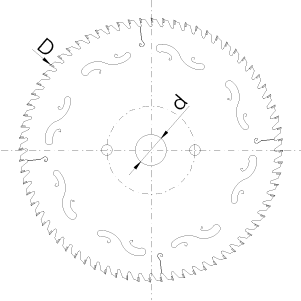

Technical drawings

H4

Table
1040003 80 3 ,35 20 18 4
1040004 100 3 ,35 22 18 4
1040027 160 4 ,6 55 36 4
1040032 180 3 ,35 20 36 4
1040035 180 4 ,55 20 36 4
1040041 180 4 ,55 30 36 4
1040044 180 4 ,55 50 36 4
1040046 180 4 ,6 55 36 4
1040056 200 4 ,55 20 36 4
1040072 200 4 ,6 80 36 4
1040074 200 5 45 48 4
1040075 200 4 ,95 45 60 4
1040076 200 5 ,95 45 60 4
1040080 215 4 ,55 50 48 4
1040083 220 3 ,35 30 48 4
1040084 220 5 45 48 4
1040085 220 4 ,9 45 48 4
1040086 220 6 45 48 4
1040087 220 6 45 64 4
1040089 240 4 ,55 45 48 4
1040091 250 4 ,55 30 48 4
1040093 250 4 ,55 50 48 4
1040094 250 4 ,55 60 48 4
1040095 250 5 60 48 4
1040097 250 4 ,55 45 60 4
1040099 280 4 ,6 55 48 4
1040101 280 4 ,55 45 60 4
1040102 280 4 ,95 45 60 4
1040103 280 4 ,6 55 60 4
1040113 300 4 ,55 75 60 4
1040115 300 4 ,8 80 60 4
1040119 300 4 ,6 50 72 4
1040120 300 4 ,55 50 72 4
1040121 300 4 ,95 50 72 4
1040122 300 4 ,55 65 72 4
1040124 300 4 ,6 65 72 4
1040126 300 4 ,55 80 72 4
1040127 300 4 ,55 80 72 4
1040128 300 4 ,8 80 72 4
1040129 300 4 ,75 80 72 4
1040130 300 5 ,2 80 72 4
1040132 300 4 ,6 50 80 4
1040136 300 4 ,55 75 96 4
1040152 340 4 ,95 45 60 4
1040153 340 4 ,95 45 72 4
1040154 340 5 45 72 4
1040155 340 6 45 72 4
1040156 340 5 ,95 45 72 4
1040174 350 4 ,55 75 72 4
1040178 350 4 ,75 80 72 4
1040228 400 4 ,55 30 72 4
1040263 450 5 30 72 4
H6

Table
1060003 80 3 ,35 20 18 6
1060004 100 3 ,35 22 18 6
1060027 160 4 ,6 55 36 6
1060032 180 3 ,35 20 36 6
1060035 180 4 ,55 20 36 6
1060041 180 4 ,55 30 36 6
1060044 180 4 ,55 50 36 6
1060046 180 4 ,6 55 36 6
1060056 200 4 ,55 20 36 6
1060072 200 4 ,6 80 36 6
1060074 200 5 45 48 6
1060075 200 4 ,95 45 60 6
1060076 200 5 ,95 45 60 6
1060080 215 4 ,55 50 48 6
1060083 220 3 ,35 30 48 6
1060084 220 5 45 48 6
1060085 220 4 ,9 45 48 6
1060086 220 6 45 48 6
1060087 220 6 45 64 6
1060089 240 4 ,55 45 48 6
1060091 250 4 ,55 30 48 6
1060093 250 4 ,55 50 48 6
1060094 250 4 ,55 60 48 6
1060095 250 5 60 48 6
1060097 250 4 ,55 45 60 6
1060099 280 4 ,6 55 48 6
1060101 280 4 ,55 45 60 6
1060102 280 4 ,95 45 60 6
1060103 280 4 ,6 55 60 6
1060113 300 4 ,55 75 60 6
1060115 300 4 ,8 80 60 6
1060119 300 4 ,6 50 72 6
1060120 300 4 ,55 50 72 6
1060121 300 4 ,95 50 72 6
1060122 300 4 ,55 65 72 6
1060124 300 4 ,6 65 72 6
1060126 300 4 ,55 80 72 6
1060127 300 4 ,55 80 72 6
1060128 300 4 ,8 80 72 6
1060129 300 4 ,75 80 72 6
1060130 300 5 ,2 80 72 6
1060132 300 4 ,6 50 80 6
1060136 300 4 ,55 75 96 6
1060152 340 4 ,95 45 60 6
1060153 340 4 ,95 45 72 6
1060154 340 5 45 72 6
1060155 340 6 45 72 6
1060156 340 5 ,95 45 72 6
1060174 350 4 ,55 75 72 6
1060178 350 4 ,75 80 72 6
1060228 400 4 ,55 30 72 6
1060263 450 5 30 72 6
Applications:
Pre-scoring.

Machines:
Vertical or horizontal panel saws.

Materials:
Chipboard, MDF, and plywood panels with or without veneer, melamine paper or plastic coatings.

Technical Features:
TR tooth shape with positive rake. Cutting depth 2-3 mm. Noise reducing slots. Excellent finish both on wooden or non-wooden based materials. Special or custom engineered tooth shapes can be provided on request.

Re-sharpening:
H 4 up to 6 times
H 6 up to 13 times
Contact us for a quote
