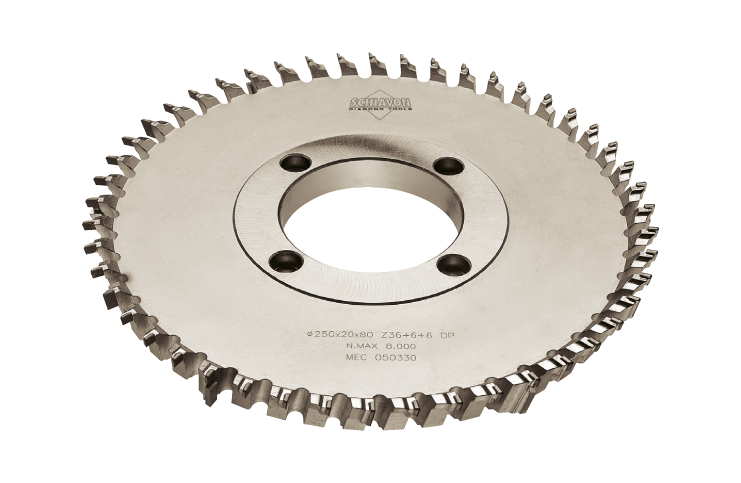

Compact Hoggers for Cross Cut

WORKINGS

Chipping

Long side chipping

Cross cut chipping

PERFORMANCES More info

Drawings and Specs Chart

Technical drawings

FIXAIR SYSTEM 160

FIXAIR SYSTEM 161

FIXAIR SYSTEM 192 MECHANICAL OR HYDRO SLEEVES TYPE EI

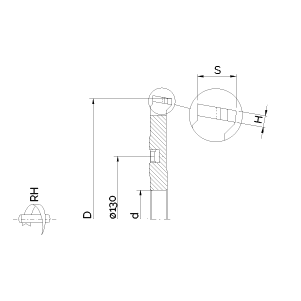

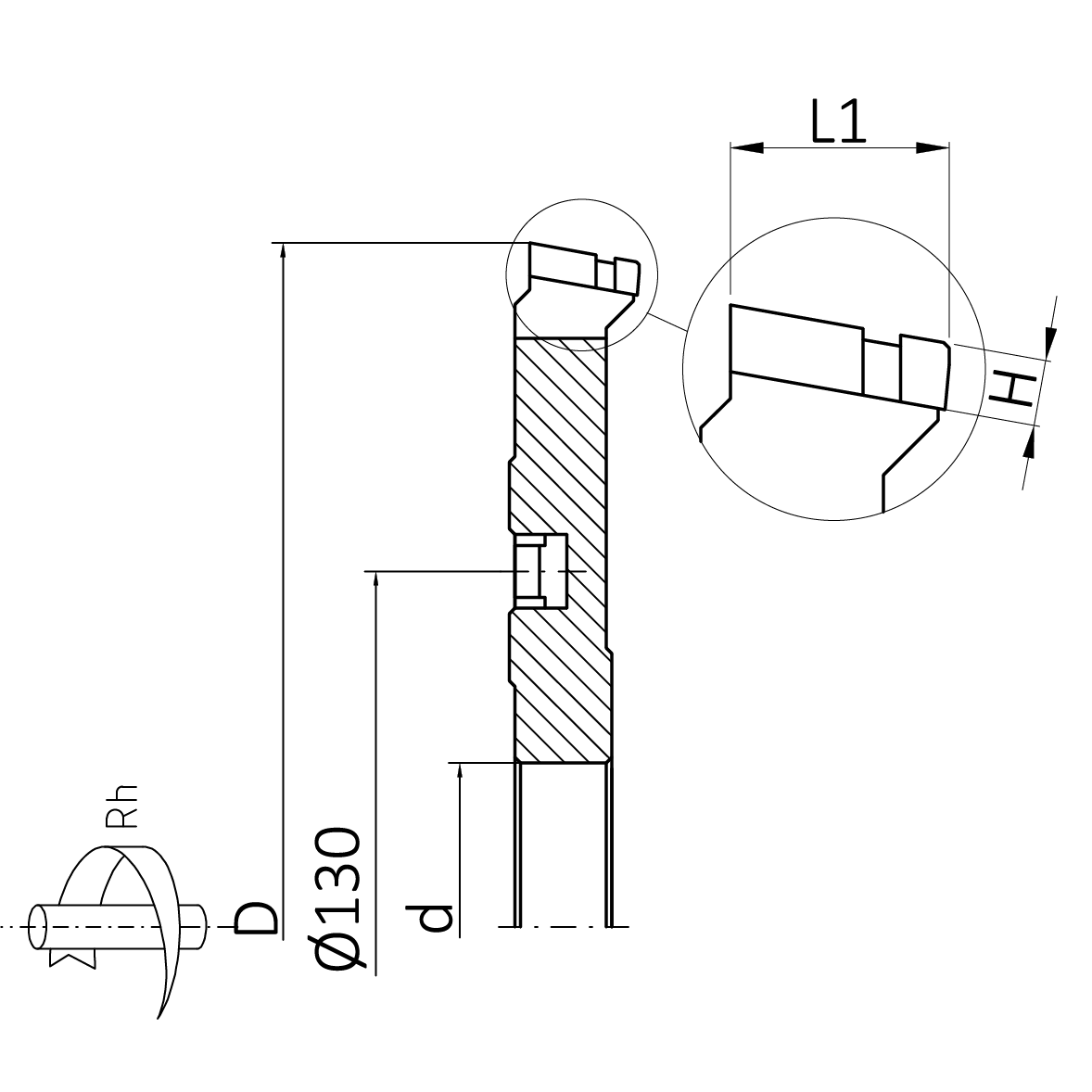

FIXAIR SYSTEM 160

Table


503020	503021	250	10	60	30+6	5
503022	503023	250	10	60	30+6	6
503024	503025	250	10	60	36+6	5
503026	503027	250	10	60	36+6	6
503028	503029	250	10	60	42+6	5
503030	503031	250	10	60	42+6	6
503032	503033	250	10	60	48+6	5
503034	503035	250	10	60	48+6	6
503036	503037	250	10	60	60+6	5
503038	503039	250	10	60	60+6	6
503040	503041	250	20	60	30+6+6	5
503042	503043	250	20	60	30+6+6	6
503044	503045	250	20	60	36+6+6	5
503046	503047	250	20	60	36+6+6	6
503048	503049	250	20	60	42+6+6	5
503050	503051	250	20	60	42+6+6	6
503052	503053	250	20	60	48+6+6	5
503054	503055	250	20	60	48+6+6	6
503056	503057	250	20	60	60+6+6	5
503058	503059	250	20	60	60+6+6	6

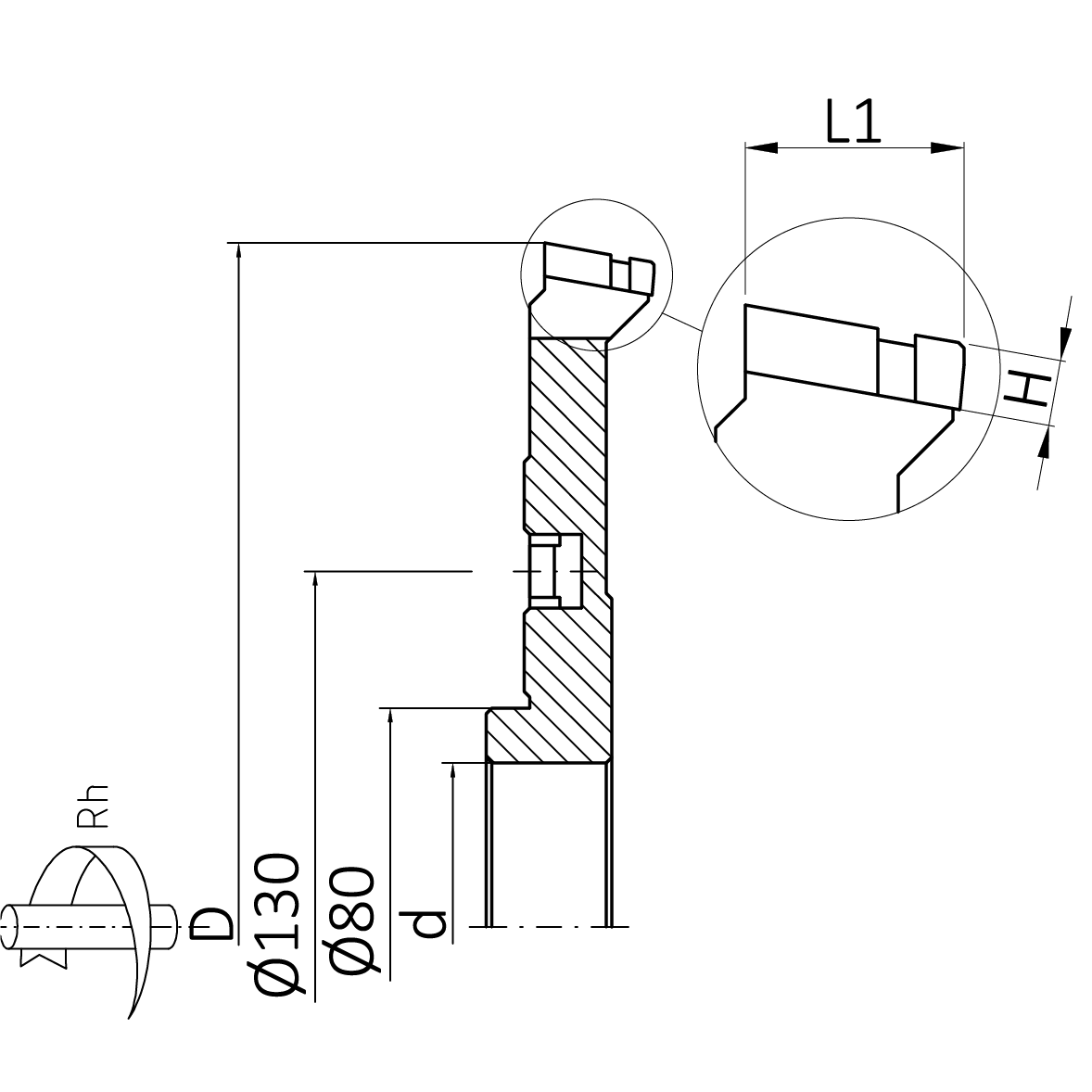

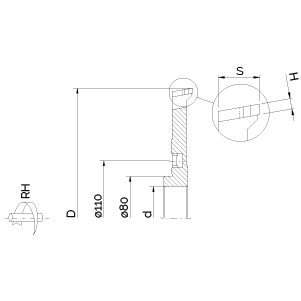

FIXAIR SYSTEM 161

Table


503060	503061	250	10	60	30+6	5
503062	503063	250	10	60	30+6	6
503064	503065	250	10	60	36+6	5
503066	503067	250	10	60	36+6	6
503068	503069	250	10	60	42+6	5
503070	503071	250	10	60	42+6	6
503072	503073	250	10	60	48+6	5
503074	503075	250	10	60	48+6	6
503076	503077	250	10	60	60+6	5
503078	503079	250	10	60	60+6	6
503080	503081	250	20	60	30+6+6	5
503082	503083	250	20	60	30+6+6	6
503084	503085	250	20	60	36+6+6	5
503086	503087	250	20	60	36+6+6	6
503088	503089	250	20	60	42+6+6	5
503090	503091	250	20	60	42+6+6	6
503092	503093	250	20	60	48+6+6	5
503094	503095	250	20	60	48+6+6	6
503096	503097	250	20	60	60+6+6	5
503098	503099	250	20	60	60+6+6	6

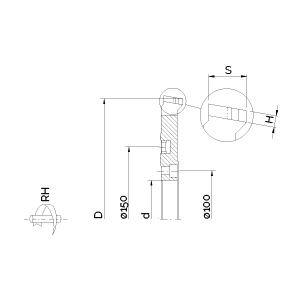

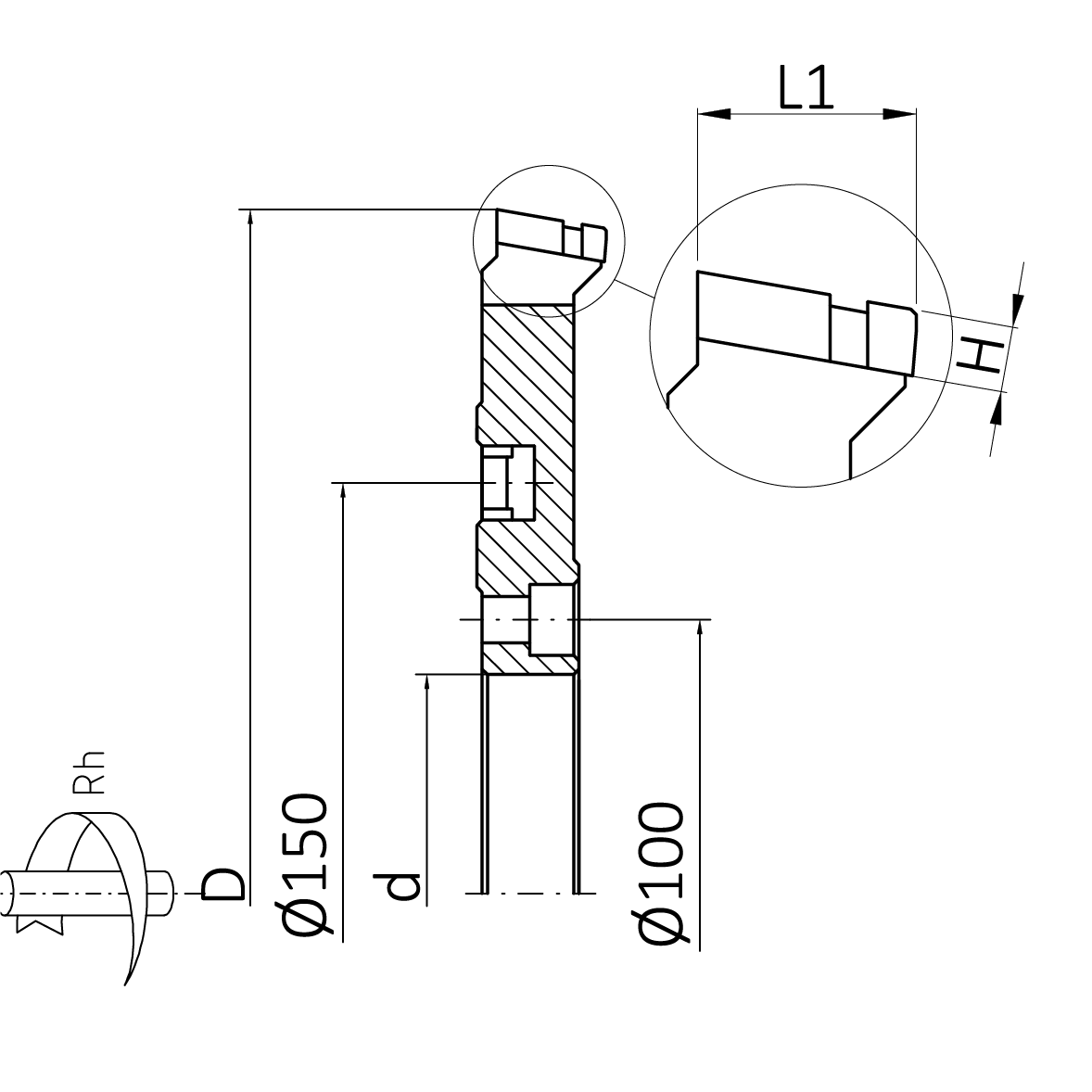

FIXAIR SYSTEM 192 , MECHANICAL OR HYDRO SLEEVES TYPE EI

Table


503100	503101	250	10	80	36+6+6	5
503102	503103	250	10	80	36+6+6	6
503104	503105	250	10	80	30+6	5
503106	503107	250	10	80	30+6	6
503108	503109	250	10	80	36+6	5
503110	503111	250	10	80	36+6	6
503112	503113	250	10	80	42+6	5
503114	503115	250	10	80	42+6	6
503116	503117	250	10	80	48+6	5
503118	503119	250	10	80	48+6	6
503120	503121	250	10	80	60+6	5
503122	503123	250	10	80	60+6	6
503124	503125	250	20	80	30+6+6	5
503126	503127	250	20	80	30+6+6	6
503128	503129	250	20	80	36+6+6	5
503130	503131	250	20	80	36+6+6	6
503132	503133	250	20	80	42+6+6	5
503134	503135	250	20	80	42+6+6	6
503136	503137	250	20	80	48+6+6	5
503138	503139	250	20	80	48+6+6	6
503140	503141	250	20	80	60+6+6	5
503142	503143	250	20	80	60+6+6	6

Applications:
With feed hogging for cross cut of panels.

Machines:
Squaring and edge banding machines using top & bottom Hogger.

Materials:
Chipboard, MDF, honeycomb and plywood panels with or without veneer, or plastic coatings.

Technical Features:
Inclined sharpening with chamfer and shear angle. Reinforced low-vibration body with generous dust flow. Re-sharpen able tooth side. Fitting mechanical or quick coupling Hydro sleeves. N max 7.200

Re-sharpening:
H 5 up to 10 times
H 6 up to 13 times
